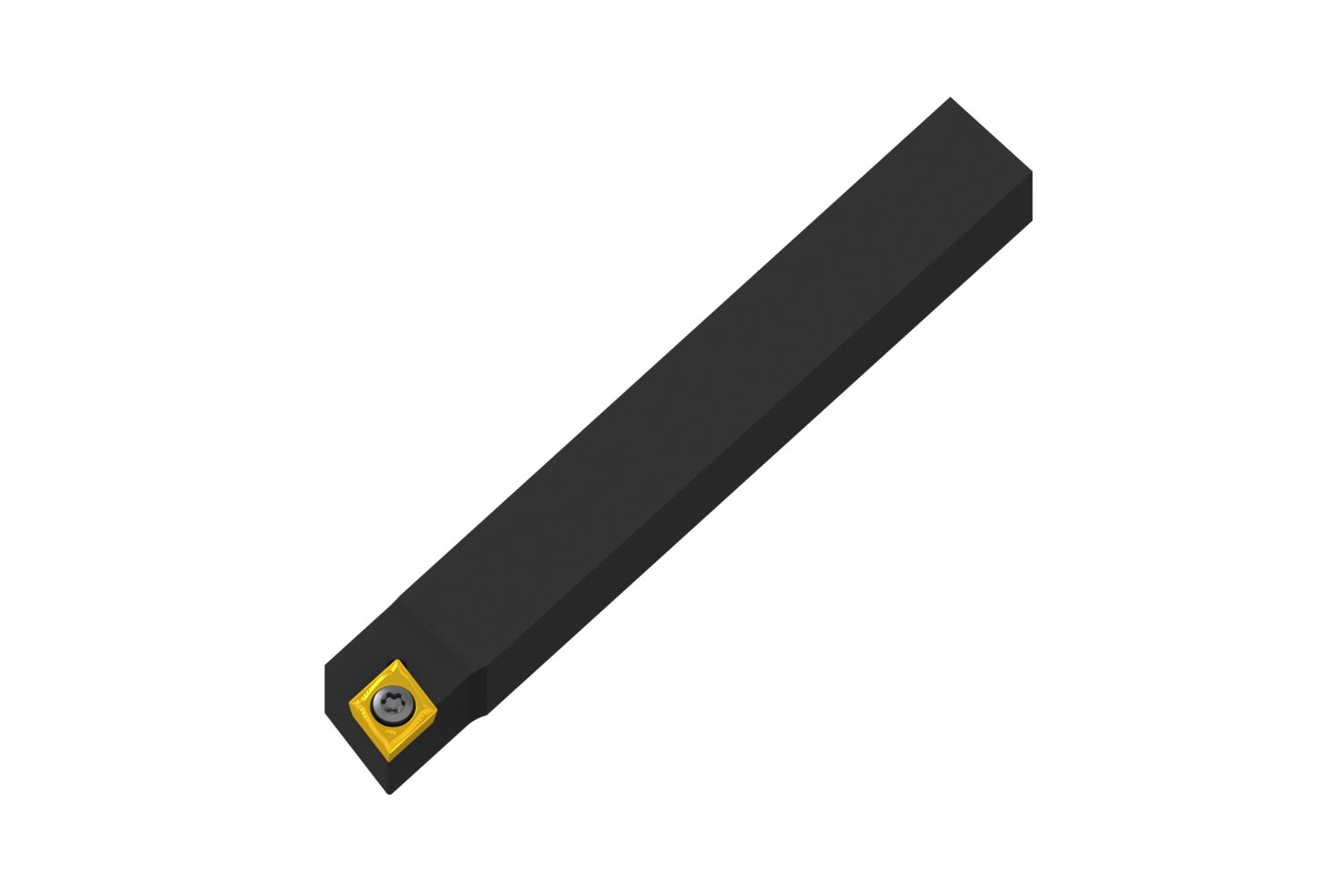

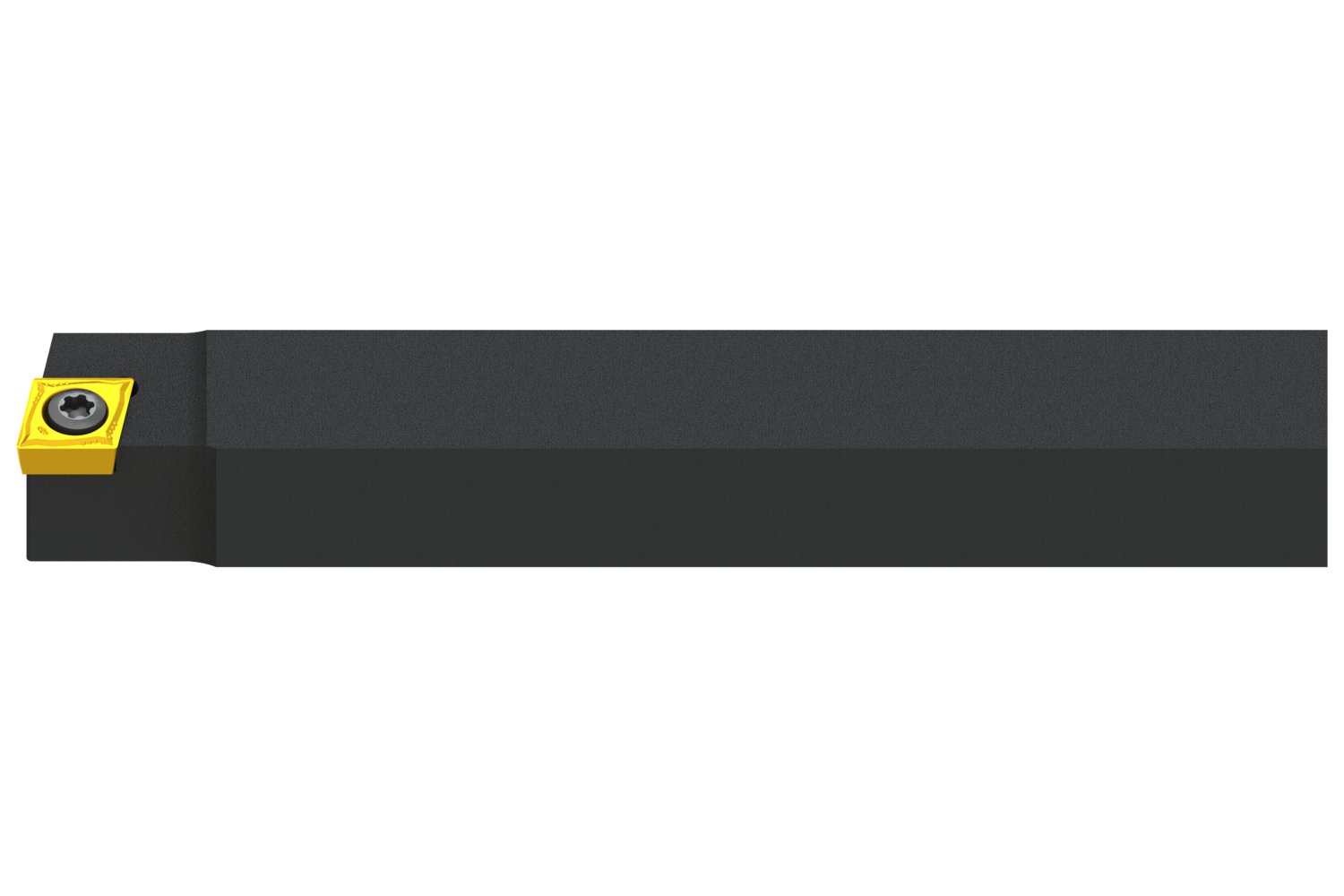

PRAMET SCACR 1616 K 09-S Turning holders external

Description

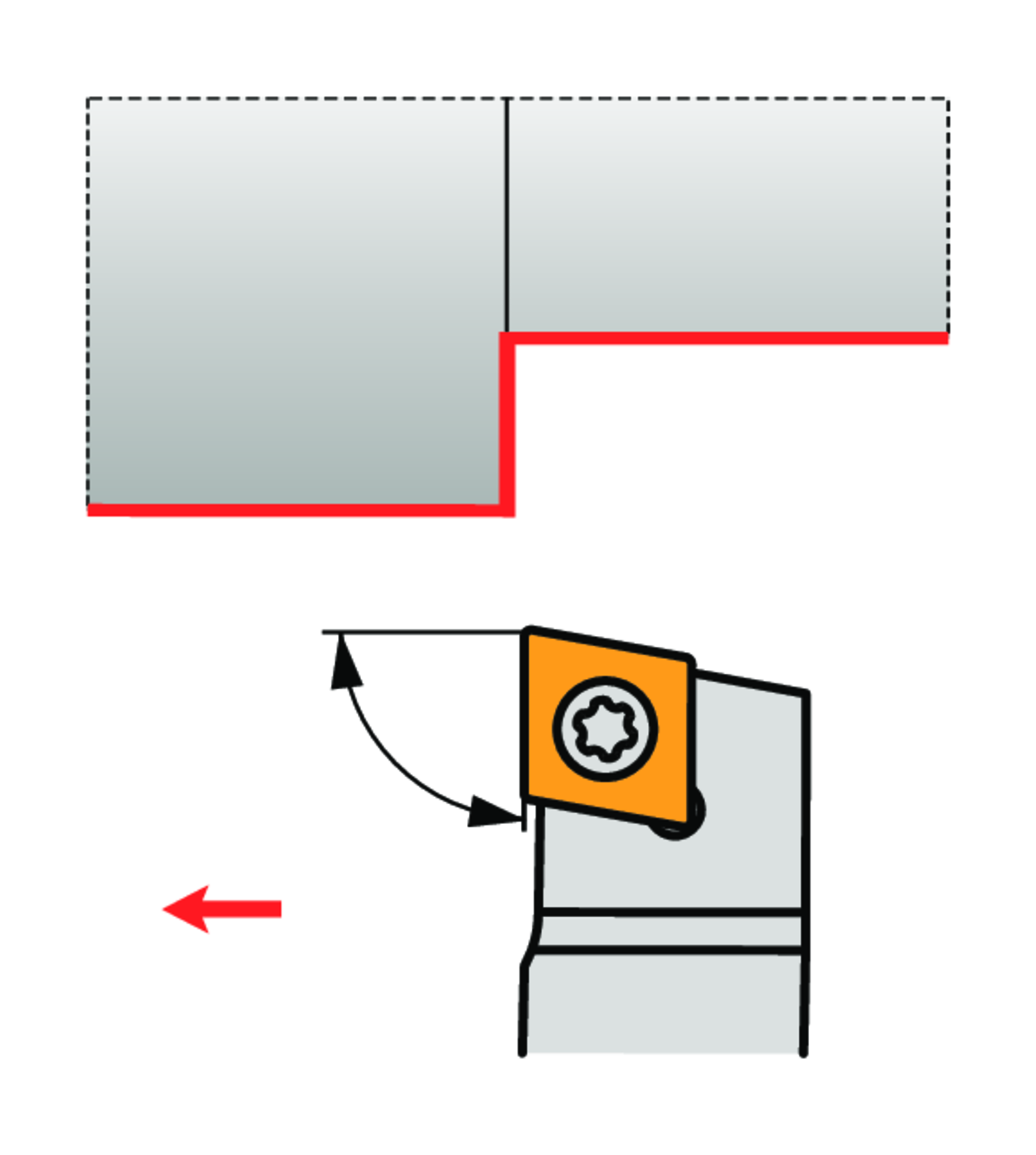

Screw clamp turning tool also compatible with sliding head machines for holding a 80° rhombus positive insert with an inscribed circle diameter of 9.525mm, 3.97mm thick (ISO designation CC.. 09T3.. ), right hand 90° side cutting with straight shank, 16mm tool height x 16mm width x 125mm long for chamfering, taper turning and longitudinal turning with and without shoulder

Additional information

Weight	0.2420 kg
barcode	3603603946668

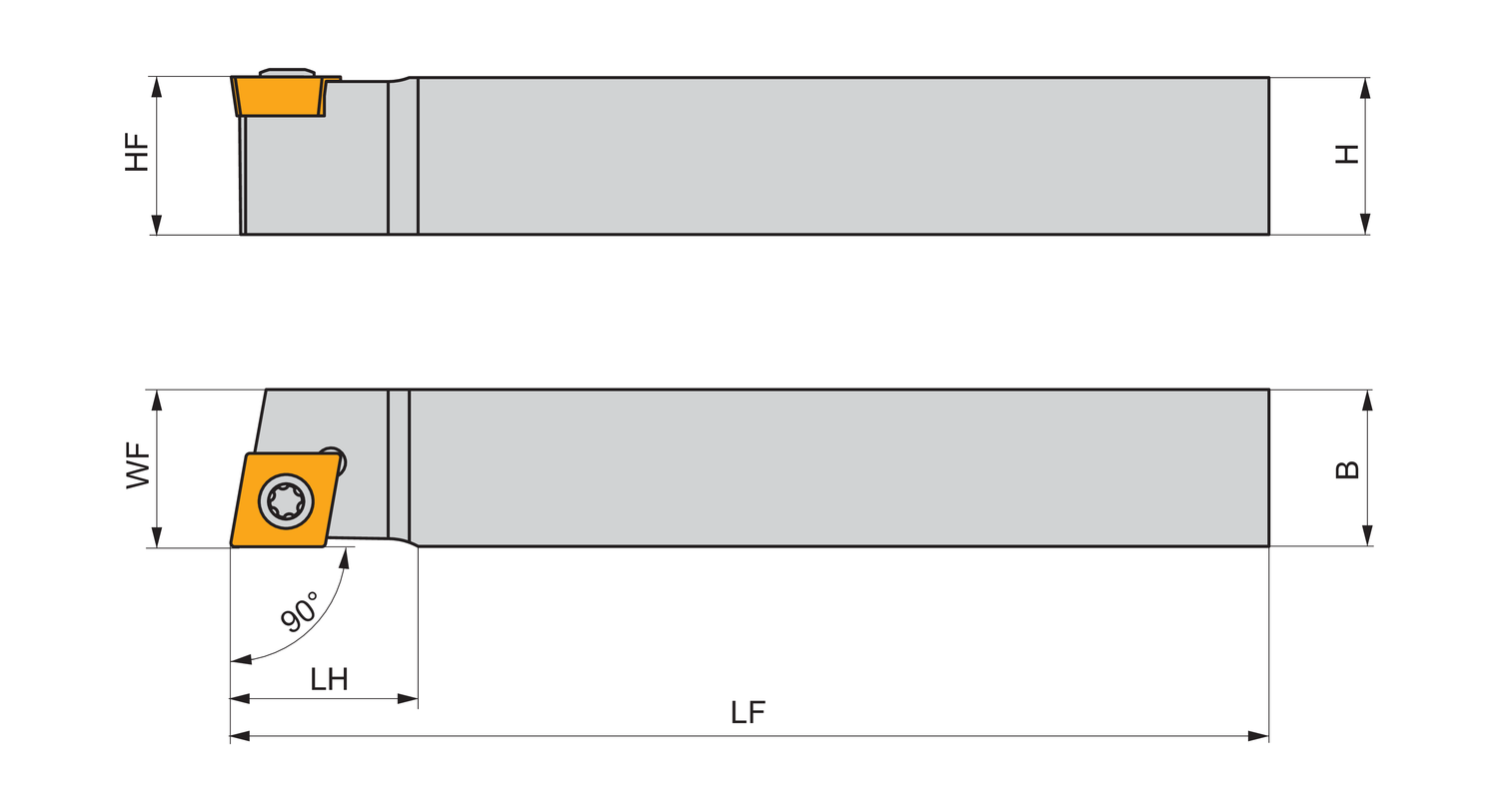

Additional Information	Description: Value EAN number: 3603603946668 Product number (SAP): 86039440 Ordering code ANSI: SCACR 1616 K 09-S Gross weight – grams: 280.6 Shank height – millimeter (H): 16 mm Shank width – millimeter (B): 16 mm Functional height – millimeter (HF): 16 mm Functional width – millimeter (WF): 16 mm Functional length – millimeter (LF): 125 mm Head length – millimeter (LH): 19 mm Inclination angle (LAMS): 0 Orthogonal rake angle (GAMO): 0 Net weight – grams: 242 Insert size: 09 Sliding Head Turning Tool: YES ISO: SCACR1616K09-S
