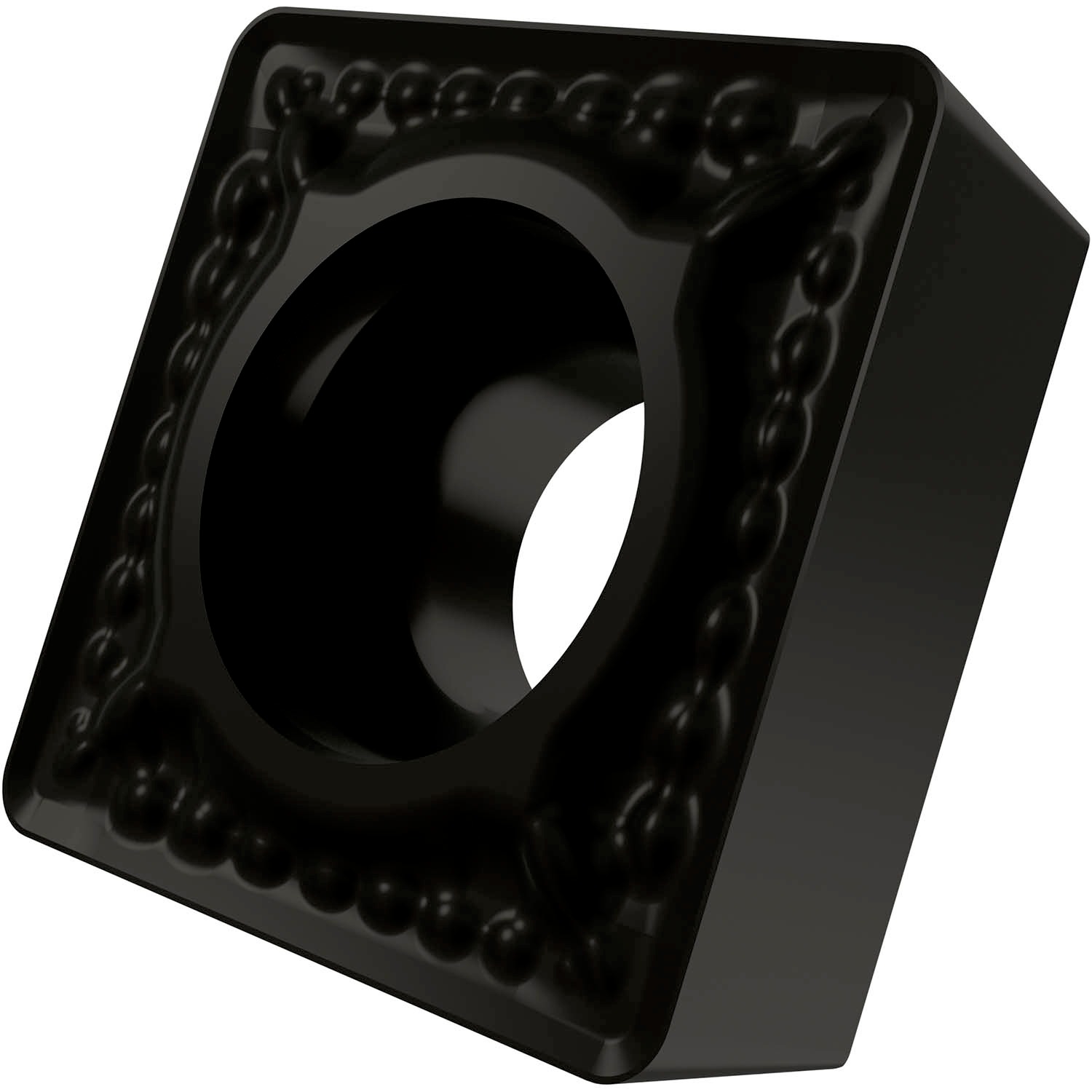

PRAMET SCET 060204-UD:D9335 Drilling Inserts

Description

Drilling insert to fit the peripheral pocket of PRAMET 80.D indexable drills within a diameter range from 19.5 up to 22mm, D9335 MT-CVD coated functionally graded WC-Co carbide within ISO-grade ranges P20-P35 and K15-K35 with UD geometry for machining of steel and cast-iron

Additional information

Weight	0.0257 kg
barcode
Additional Information	Description: Value EAN number: 3603602900173 Product number (SAP): 80016810 Ordering code ANSI: SCET 060204-UD:D9335 Gross weight – grams: 2.05 Inscribed circle diameter – millimeter (IC): 6.35 mm Fixing hole diameter – millimeter (D1): 2.9 mm Cutting edge length – millimeter (L): 6.35 mm Insert thickness – millimeter (S): 2.38 mm Grade: D9335 Corner radius – millimeter (RE): 0.4 mm Insert Design: SCET Chipbreaker manufacturer's designation (CBMD): UD Insert Type: T ISO: SCET060204-UD:D9335

Need Technical Advice?

Description

Additional information

Brand

PRAMET
