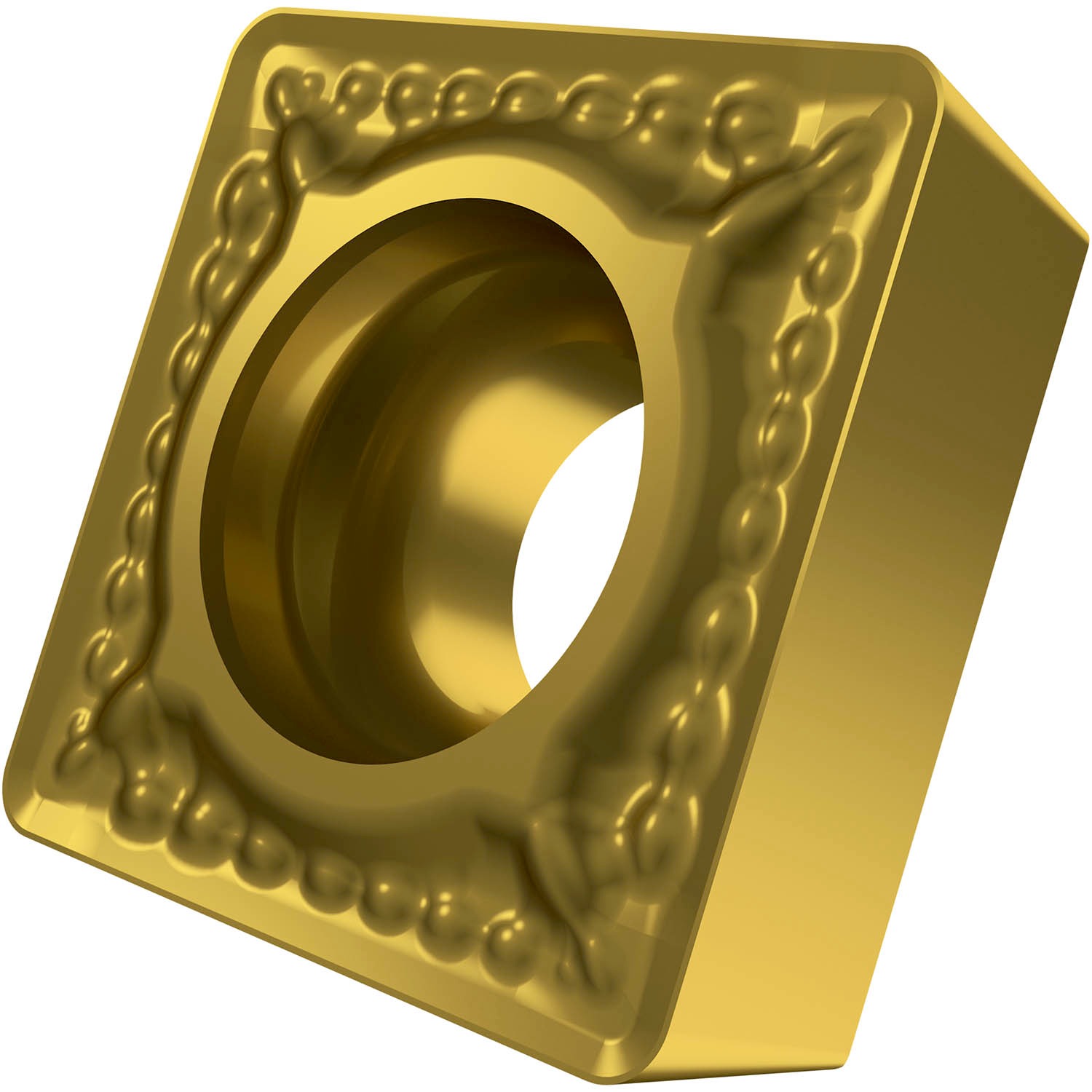

PRAMET SCET 070308-SD:D8330 Drilling Inserts

Product Code: SCET 070308-SD:D8330

$28.22$25.65 Ex. GST

Product Code: SCET 070308-SD:D8330 SKU SCET 070308-SD:D8330 Categories , ,
PRAMET SCET 070308-SD:D8330 Drilling Inserts

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Drilling insert to fit the peripheral pocket of PRAMET 80.D indexable drills within a diameter range from 22.5 up to 27mm, D8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20-P35 and M15-M30 with SD geometry for machining of steel and stainless-steel

Additional information

Weight 0.0274 kg
barcode
Additional Information

Description: Value
EAN number: 3603603074194
Product number (SAP): 80026072
Ordering code ANSI: SCET 070308-SD:D8330
Gross weight – grams: 2.007
Inscribed circle diameter – millimeter (IC): 7.937 mm
Fixing hole diameter – millimeter (D1): 3.5 mm
Cutting edge length – millimeter (L): 7.937 mm
Insert thickness – millimeter (S): 3.18 mm
Grade: D8330
Corner radius – millimeter (RE): 0.8 mm
Insert Design: SCET
Chipbreaker manufacturer's designation (CBMD): SD
Insert Type: T
ISO: SCET070308-SD:D8330

Brand

PRAMET
