PRAMET SCET 150512-UD:D9335 Drilling Inserts

Product Code: SCET 150512-UD:D9335

$40.34$36.67 Ex. GST

Product Code: SCET 150512-UD:D9335 SKU SCET 150512-UD:D9335 Categories , ,

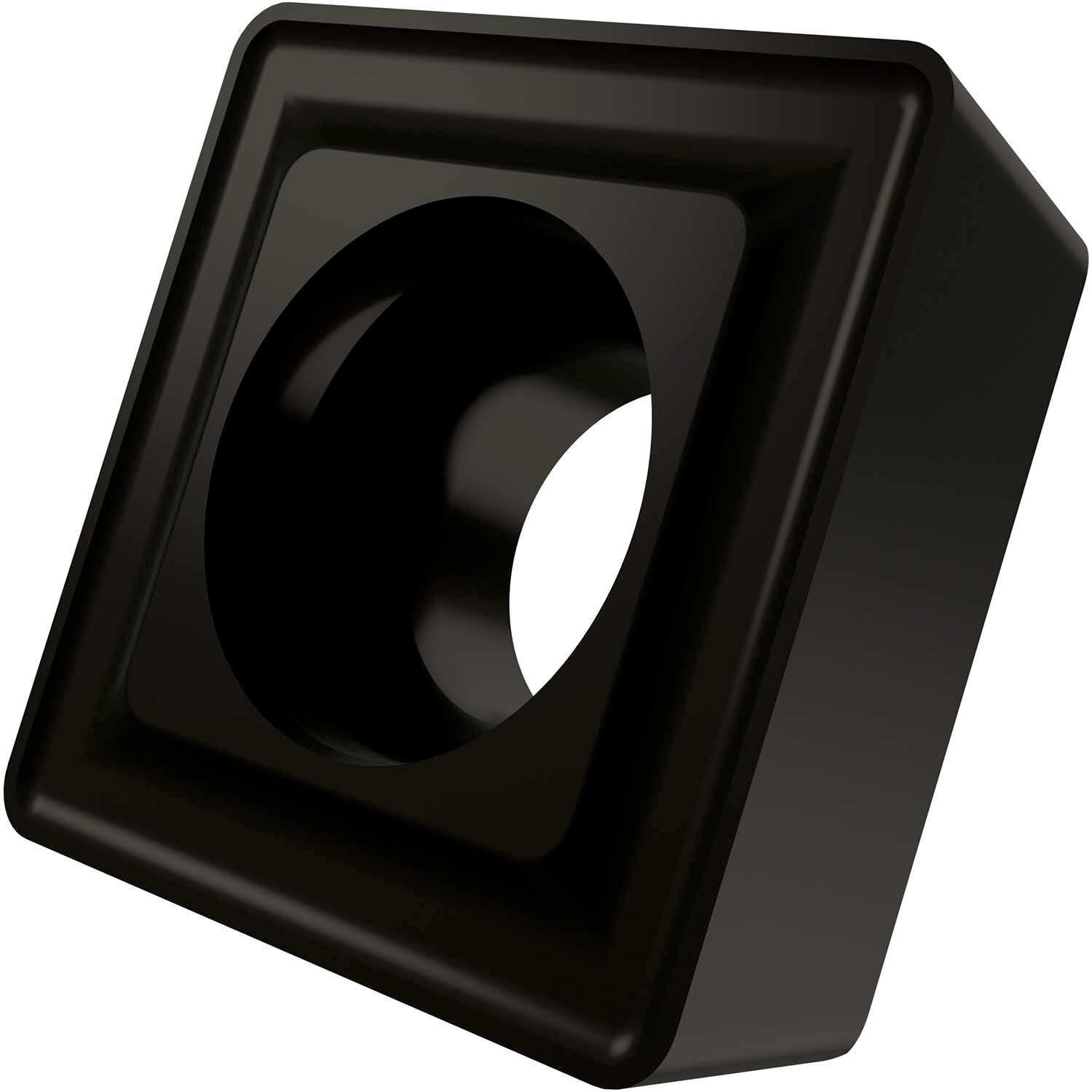

PRAMET SCET 150512-UD:D9335 Drilling Inserts

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Drilling insert to fit the peripheral pocket of PRAMET 80.D indexable drills within a diameter range from 45 up to 58mm, D9335 MT-CVD coated functionally graded WC-Co carbide within ISO-grade ranges P20-P35 and K15-K35 with UD geometry for machining of steel and cast-iron

Additional information

Weight 0.0392 kg
barcode
Additional Information

Description: Value
EAN number: 3603602899514
Product number (SAP): 80016721
Ordering code ANSI: SCET 150512-UD:D9335
Gross weight – grams: 16.5
Inscribed circle diameter – millimeter (IC): 15.875 mm
Fixing hole diameter – millimeter (D1): 5.6 mm
Cutting edge length – millimeter (L): 15.875 mm
Insert thickness – millimeter (S): 5.56 mm
Grade: D9335
Corner radius – millimeter (RE): 1.2 mm
Insert Design: SCET
Chipbreaker manufacturer's designation (CBMD): UD
Insert Type: T
ISO: SCET150512-UD:D9335

Brand

PRAMET
