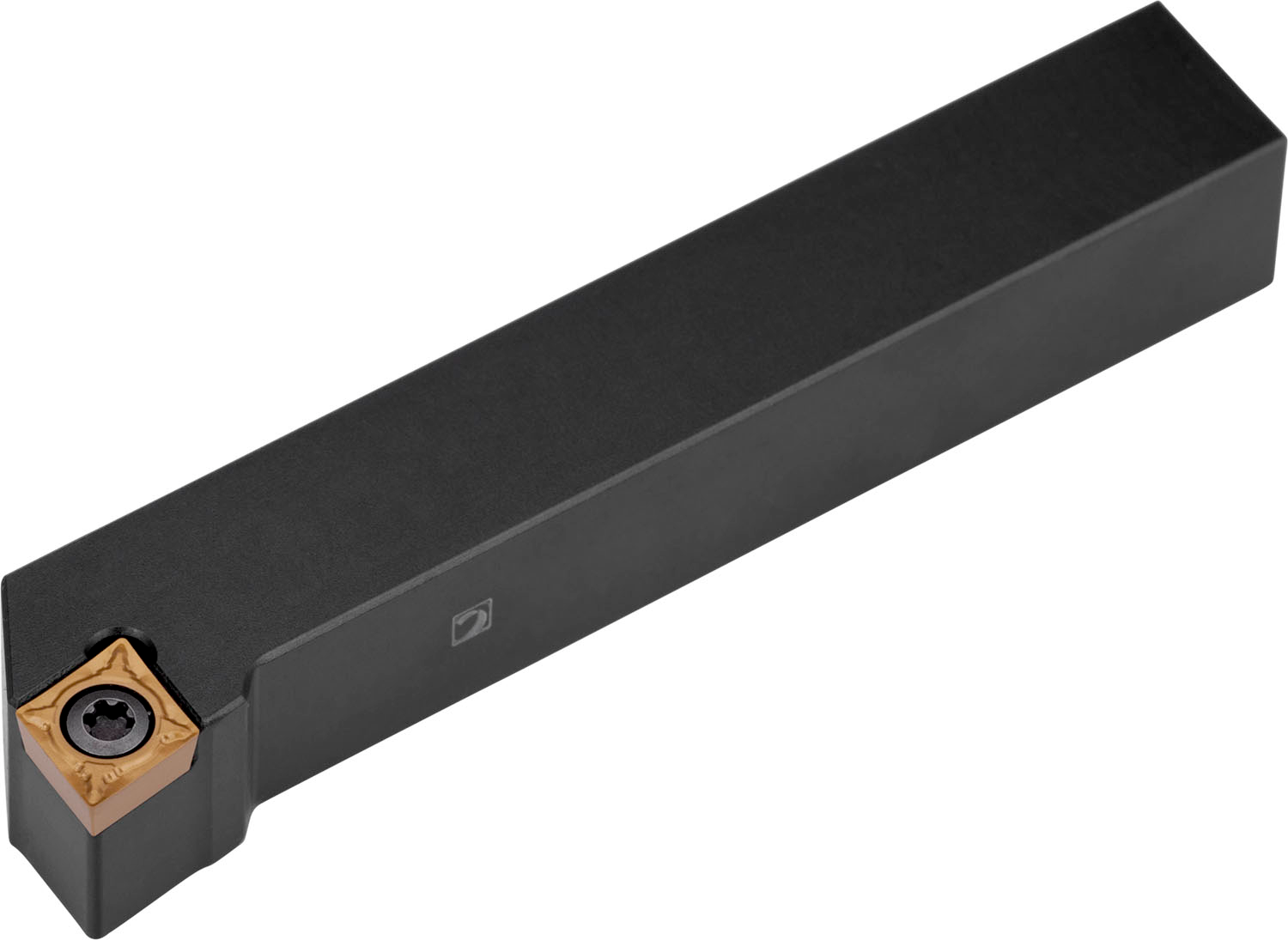

PRAMET SCFCR 0808 D 06 Turning holders external

Description

Screw clamp turning tool for holding a 80° rhombus positive insert with an inscribed circle diameter of 6.35mm, 2.38mm thick (ISO designation CC.. 0602.. ), right hand 90° end cutting with off-set shank, 8mm tool height x 8mm width x 60mm long for face turning with and without shoulder

Additional information

Weight	0.1573 kg
barcode
Additional Information	Description: Value EAN number: 3603602921666 Product number (SAP): 84001132 Ordering code ANSI: SCFCR 0808 D 06 Gross weight – grams: 54.1 Shank height – millimeter (H): 8 mm Shank width – millimeter (B): 8 mm Functional height – millimeter (HF): 8 mm Functional width – millimeter (WF): 10 mm Functional length – millimeter (LF): 60 mm Head length – millimeter (LH): 8 mm Inclination angle (LAMS): 0 Orthogonal rake angle (GAMO): 0 Net weight – grams: 41 Insert size: 06 ISO: SCFCR0808D06
