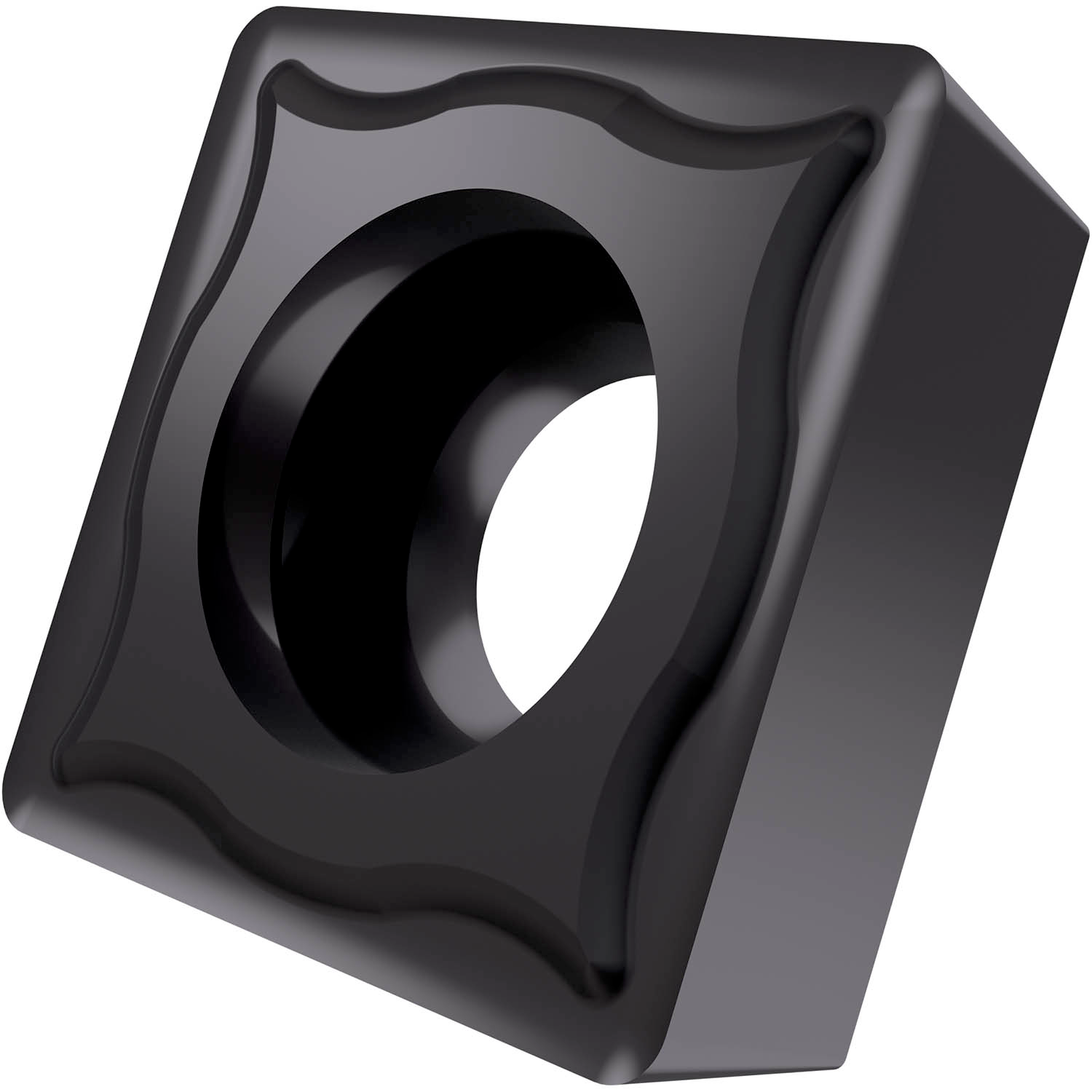

PRAMET SCGT 120408E-NF1:T6310 Turning inserts positive

Product Code: SCGT 120408E-NF1:T6310

$37.16$33.78 Ex. GST

Product Code: SCGT 120408E-NF1:T6310 SKU SCGT 120408E-NF1:T6310 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Single-sided positive turning insert, square with 7° clearance, inscribed circle diameter of 12.7mm, 4.76mm thick, 0.8mm nose radius, indexing accuracy according to ISO-tolerance class-G, chip-breaker NF1 with rounded cutting edges, in grade T6310, a PVD coated extra fine grained WC-Co carbide within ISO ranges P01 -P15/M01 -M15 and S01 -S15, for fine to medium machining of steels, stainless-steels and super-alloys

Additional information

Weight 0.0361 kg
barcode
Additional Information

Description: Value
EAN number: 3603603170230
Product number (SAP): 80028268
Ordering code ANSI: SCGT 432-NF1:T6310
Gross weight – grams: 7.75
Inscribed circle diameter – millimeter (IC): 12.7 mm
Fixing hole diameter – millimeter (D1): 5.5 mm
Cutting edge length – millimeter (L): 12.7 mm
Insert thickness – millimeter (S): 4.76 mm
Grade: T6310
Corner radius – millimeter (RE): 0.8 mm
Insert Clearance Code and Angle: C 7°
Insert Design: SCGT
Insert size: 12
Insert Thickness: 04
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): NF1
Insert shape code (SC): S – square
Tool Design: SC
Insert Geometry: Positive
ISO: SCGT120408E-NF1:T6310

Brand

PRAMET
