PRAMET SCLCL 1616 K 09-S Turning holders external

Product Code: SCLCL 1616 K 09-S

$173.35$157.59 Ex. GST

Product Code: SCLCL 1616 K 09-S SKU SCLCL 1616 K 09-S Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

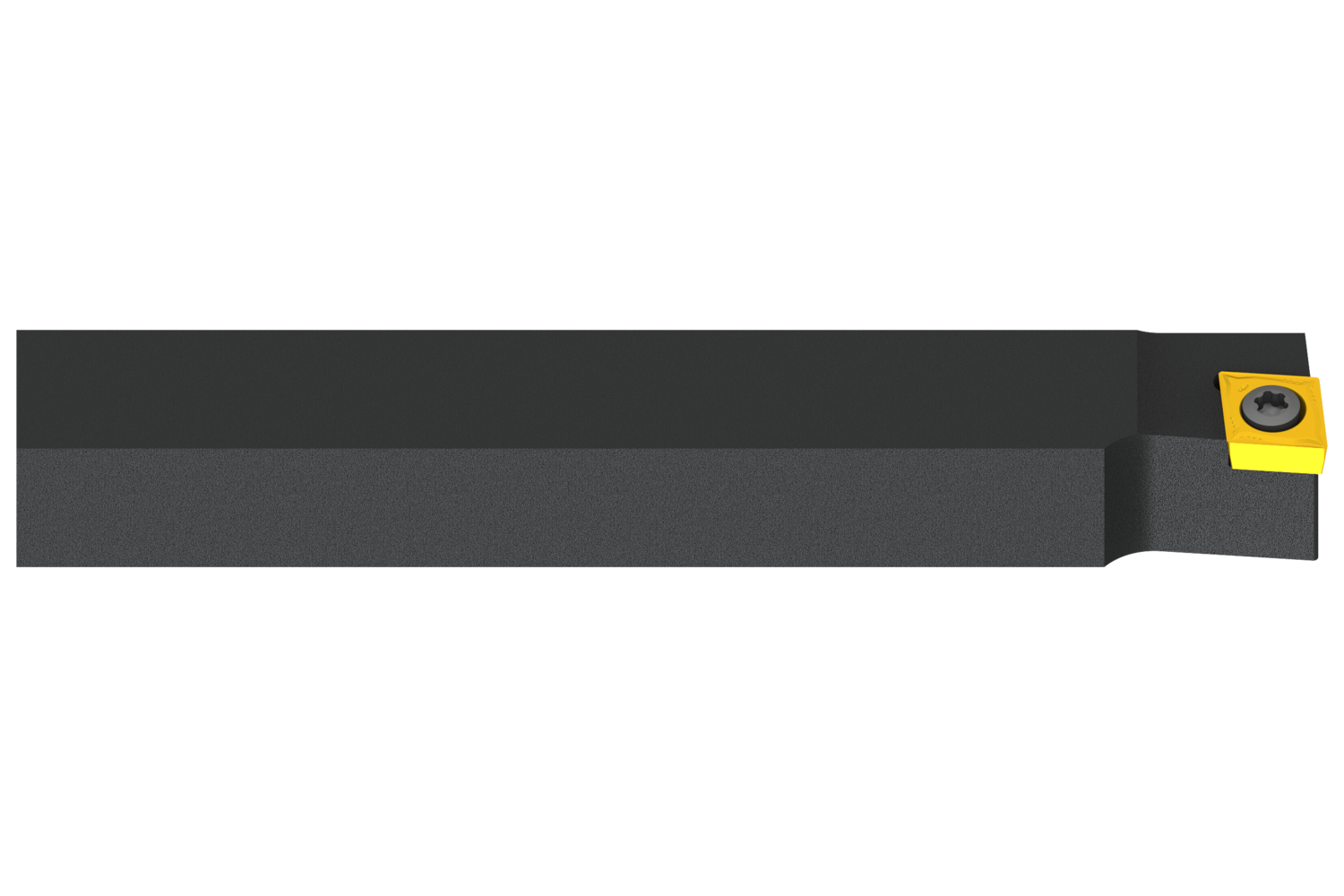

Screw clamp turning tool also compatible with sliding head machines for holding a 80° rhombus positive insert with an inscribed circle diameter of 9.525mm, 3.97mm thick (ISO designation CC.. 09T3.. ), left hand 95° side and end cutting with off-set shank, 16mm tool height x 16mm width x 125mm long for chamfering, taper turning, face turning with and without shoulder and longitudinal turning with and without shoulder

Additional information

Weight 0.2410 kg
barcode

3603603946682

Additional Information

Description: Value
EAN number: 3603603946682
Product number (SAP): 86039442
Ordering code ANSI: SCLCL 1616 K 09-S
Gross weight – grams: 280.1

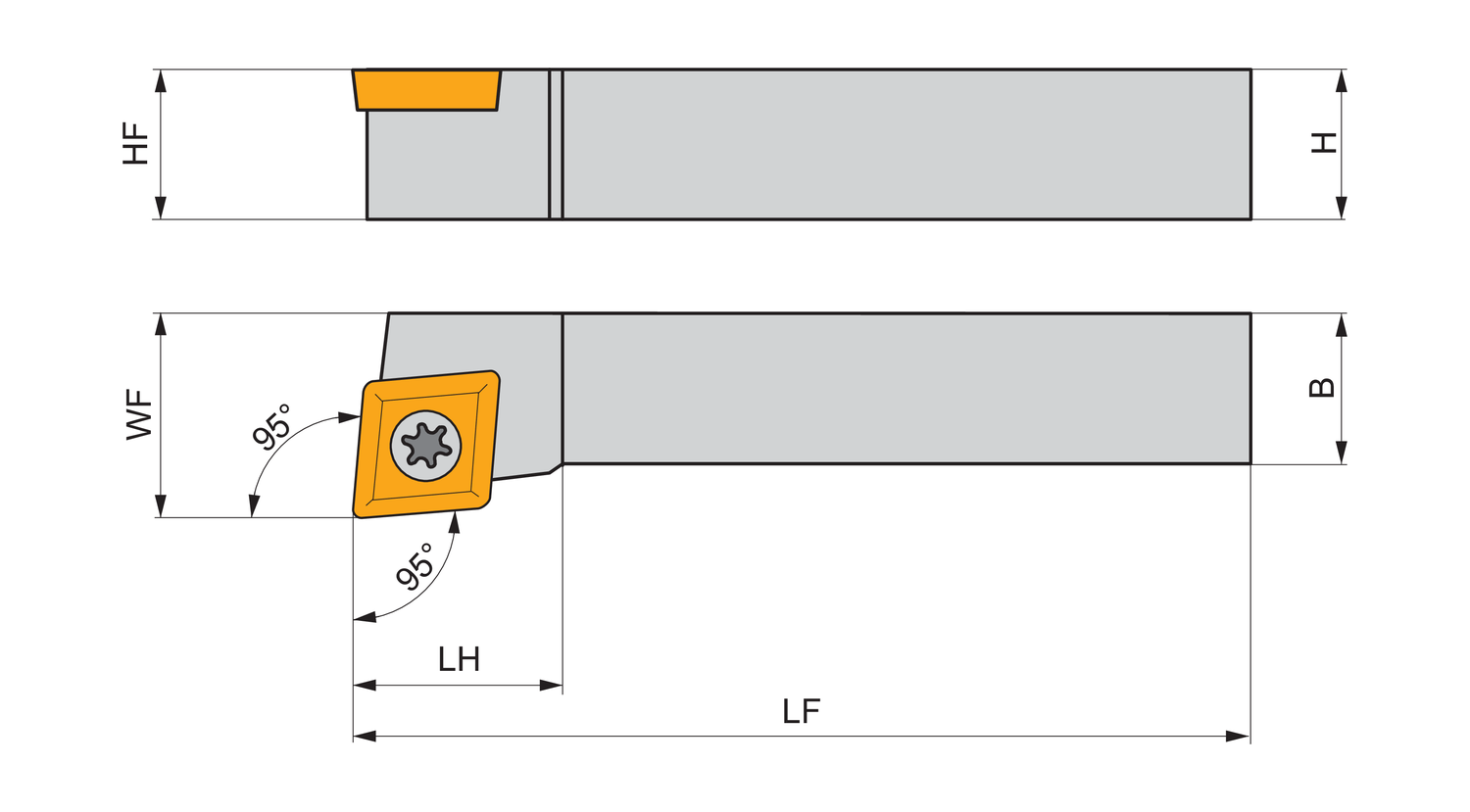

Shank height – millimeter (H): 16 mm
Shank width – millimeter (B): 16 mm
Functional height – millimeter (HF): 16 mm
Functional width – millimeter (WF): 16 mm
Functional length – millimeter (LF): 125 mm
Head length – millimeter (LH): 21.3 mm
Inclination angle (LAMS): 0
Orthogonal rake angle (GAMO): 0
Net weight – grams: 241
Insert size: 09
Sliding Head Turning Tool: YES
ISO: SCLCL1616K09-S
