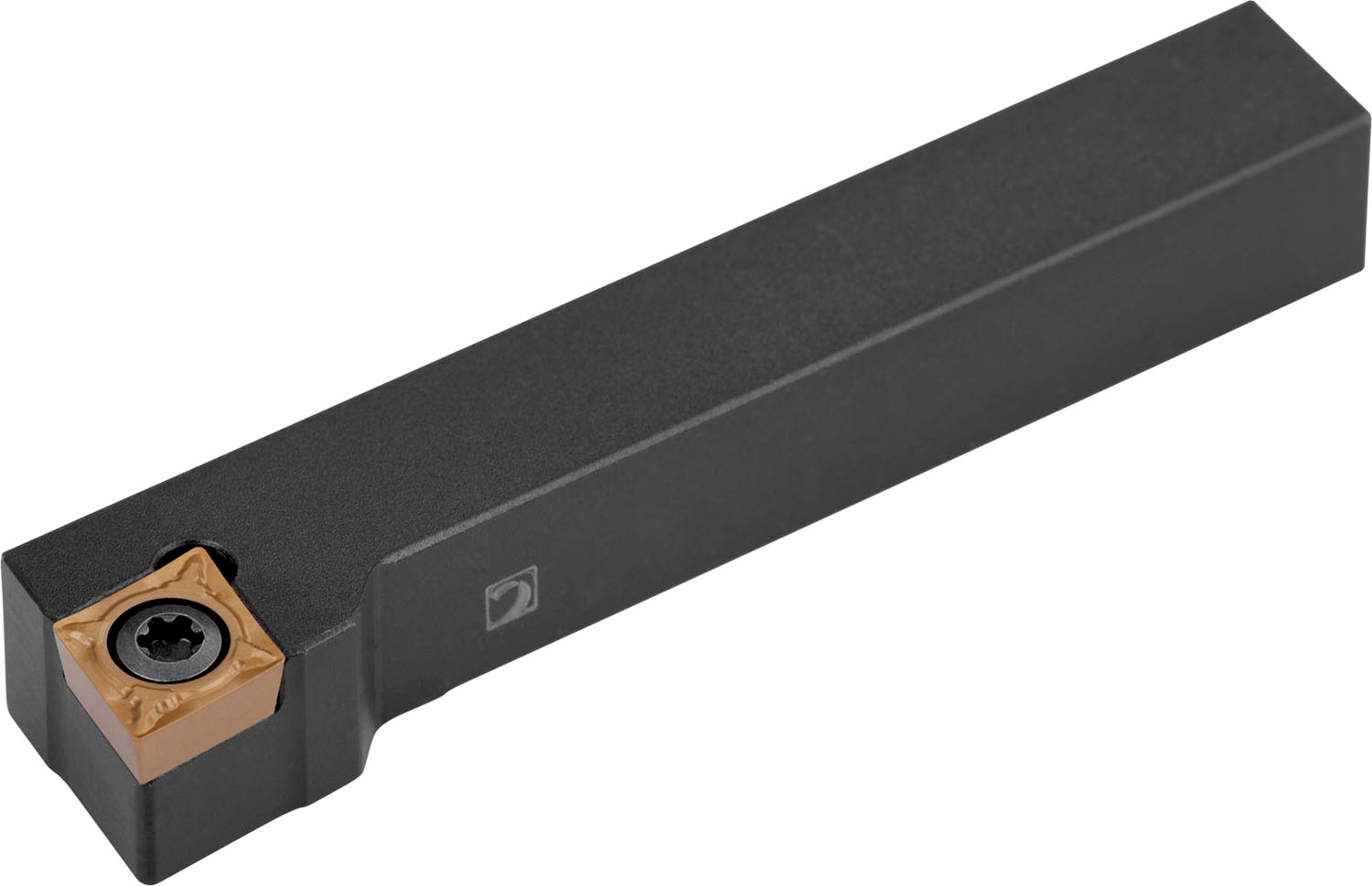

PRAMET SCLCR 1010 E 08 Turning holders external

Description

Screw clamp turning tool for holding a 80° rhombus positive insert with an inscribed circle diameter of 7.94mm, 3.18mm thick (ISO designation CC.. 0803.. ), right hand 95° side and end cutting with off-set shank, 10mm tool height x 10mm width x 70mm long for chamfering, taper turning, face turning with and without shoulder and longitudinal turning with and without shoulder

Additional information

Weight	0.1573 kg
barcode
Additional Information	Description: Value EAN number: 3603602962706 Product number (SAP): 86005596 Ordering code ANSI: SCLCR 1010 E 08 Gross weight – grams: 77.7 Shank height – millimeter (H): 10 mm Shank width – millimeter (B): 10 mm Functional height – millimeter (HF): 10 mm Functional width – millimeter (WF): 12 mm Functional length – millimeter (LF): 70 mm Head length – millimeter (LH): 13.2 mm Inclination angle (LAMS): 0 Orthogonal rake angle (GAMO): 0 Net weight – grams: 30 Insert size: 08 ISO: SCLCR1010E08

Need Technical Advice?

Description

Additional information

Brand

PRAMET
