PRAMET SCLCR 2020 K 09 Turning holders external

Product Code: SCLCR 2020 K 09

$181.28$164.80 Ex. GST

Product Code: SCLCR 2020 K 09 SKU SCLCR 2020 K 09 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

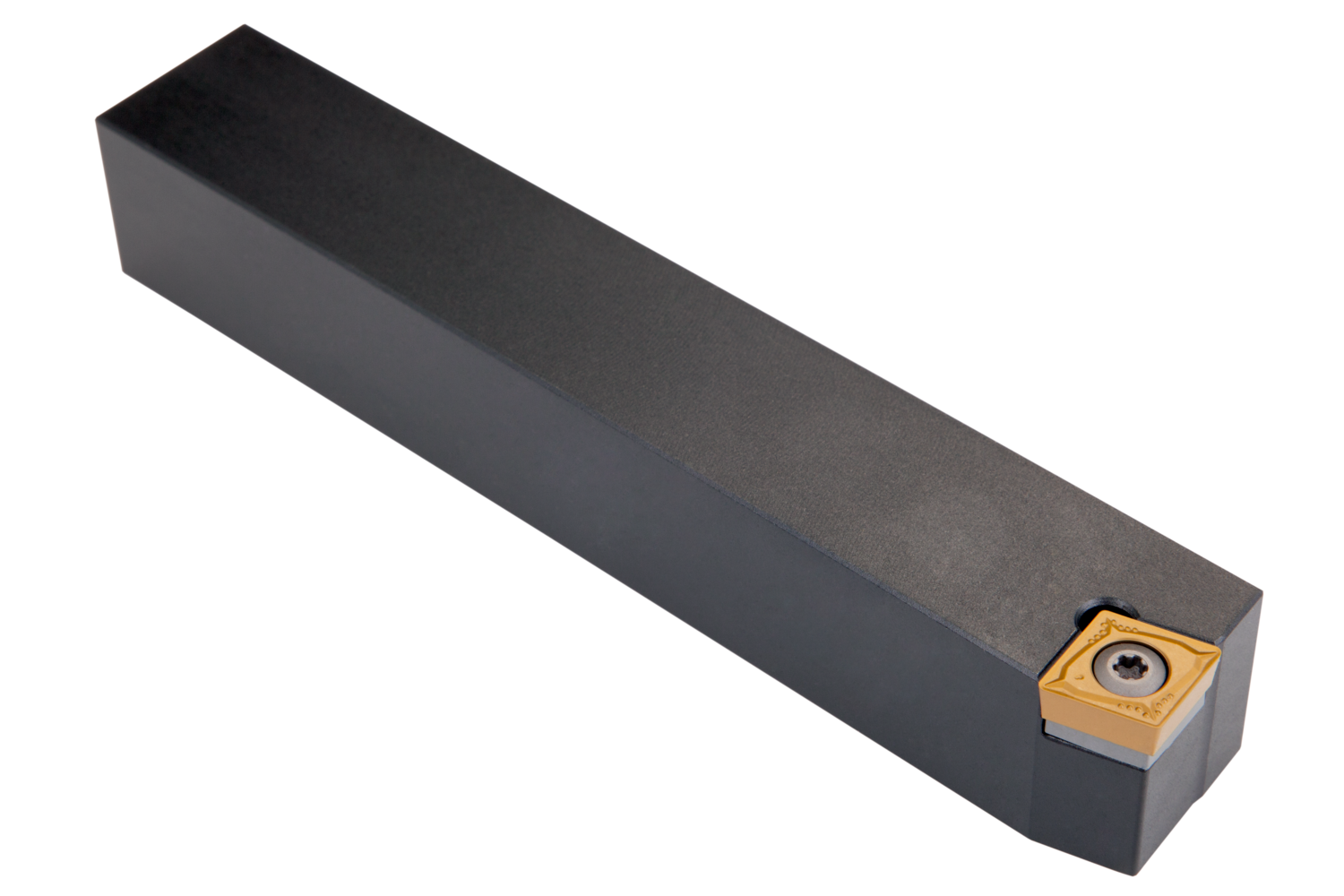

Screw clamp turning tool also compatible with sliding head machines for holding a 80° rhombus positive insert with an inscribed circle diameter of 9.525mm, 3.97mm thick (ISO designation CC.. 09T3.. ), right hand 95° side and end cutting with off-set shank, 16mm tool height x 16mm width x 125mm long for chamfering, taper turning, face turning with and without shoulder and longitudinal turning with and without shoulder

Additional information

Weight 0.176 kg
barcode
Additional Information

Description: Value
EAN number: 3603603984912
Product number (SAP): 86039678
Ordering code ANSI: SCLCR 2020 K 09
Gross weight – grams: 415.1
Net weight – grams: 402
Insert size: 09
ISO: SCLCR2020K09

Brand

PRAMET
