PRAMET SCLCR 2020 K 12-M-A Turning holders external

Product Code: SCLCR 2020 K 12-M-A

$181.28$164.80 Ex. GST

Product Code: SCLCR 2020 K 12-M-A SKU SCLCR 2020 K 12-M-A Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

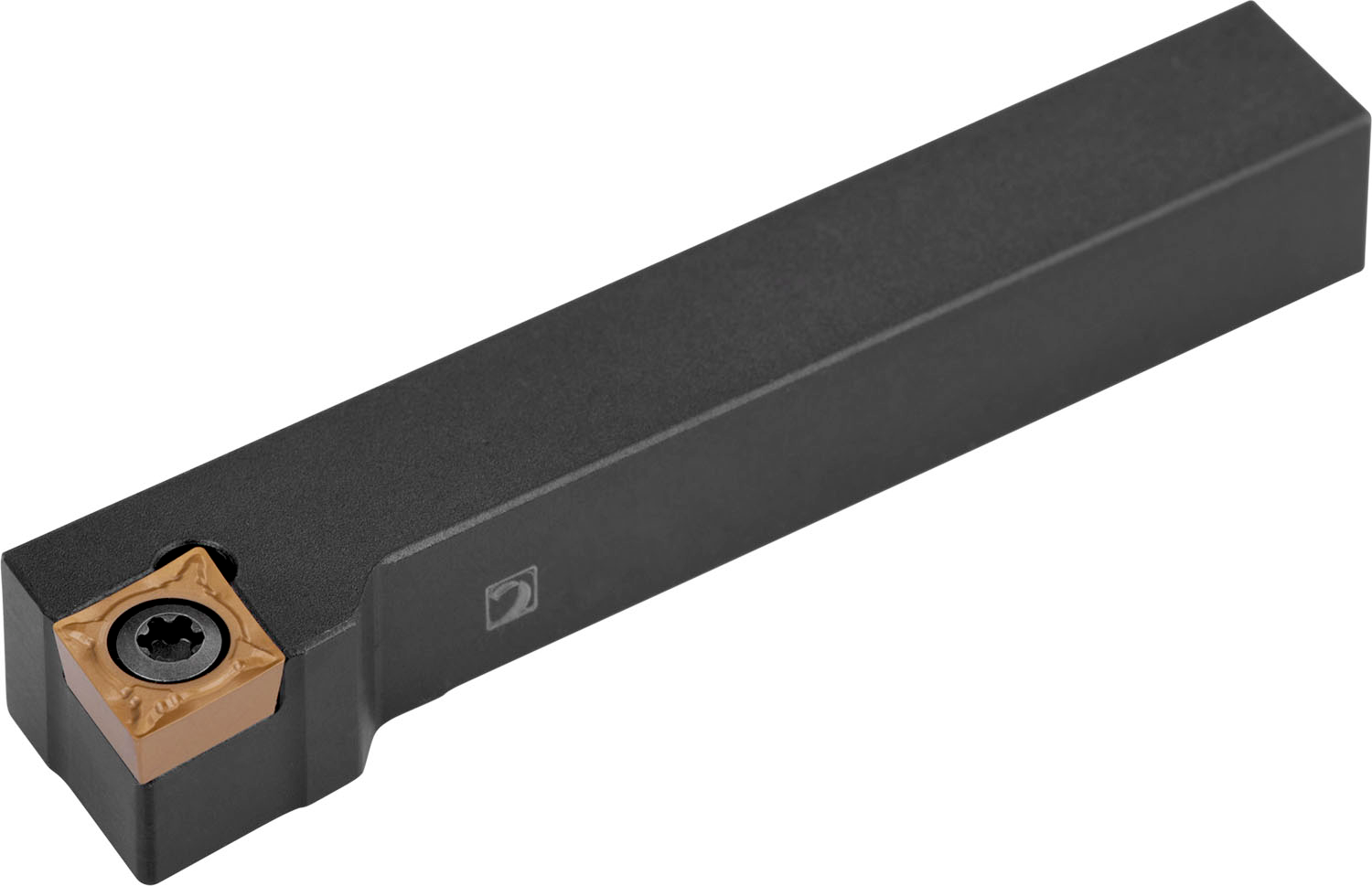

Screw clamp turning tool for holding a 80° rhombus positive insert with an inscribed circle diameter of 12.7mm, 4.76mm thick (ISO designation CC.. 1204.. ), right hand 95° side and end cutting with off-set shank, 20mm tool height x 20mm width x 125mm long for chamfering, taper turning, face turning with and without shoulder and longitudinal turning with and without shoulder

Additional information

Weight 0.176 kg
barcode
Additional Information

Description: Value
EAN number: 3603602919465
Product number (SAP): 84000783
Ordering code ANSI: SCLCR 2020 K 12-M-A
Gross weight – grams: 441.1
Shank height – millimeter (H): 20 mm
Shank width – millimeter (B): 20 mm
Functional height – millimeter (HF): 20 mm
Functional width – millimeter (WF): 25 mm
Functional length – millimeter (LF): 125 mm
Head length – millimeter (LH): 20 mm
Inclination angle (LAMS): 0
Orthogonal rake angle (GAMO): 0
Net weight – grams: 430.9
Insert size: 12
ISO: SCLCR2020K12-M-A

Brand

PRAMET
