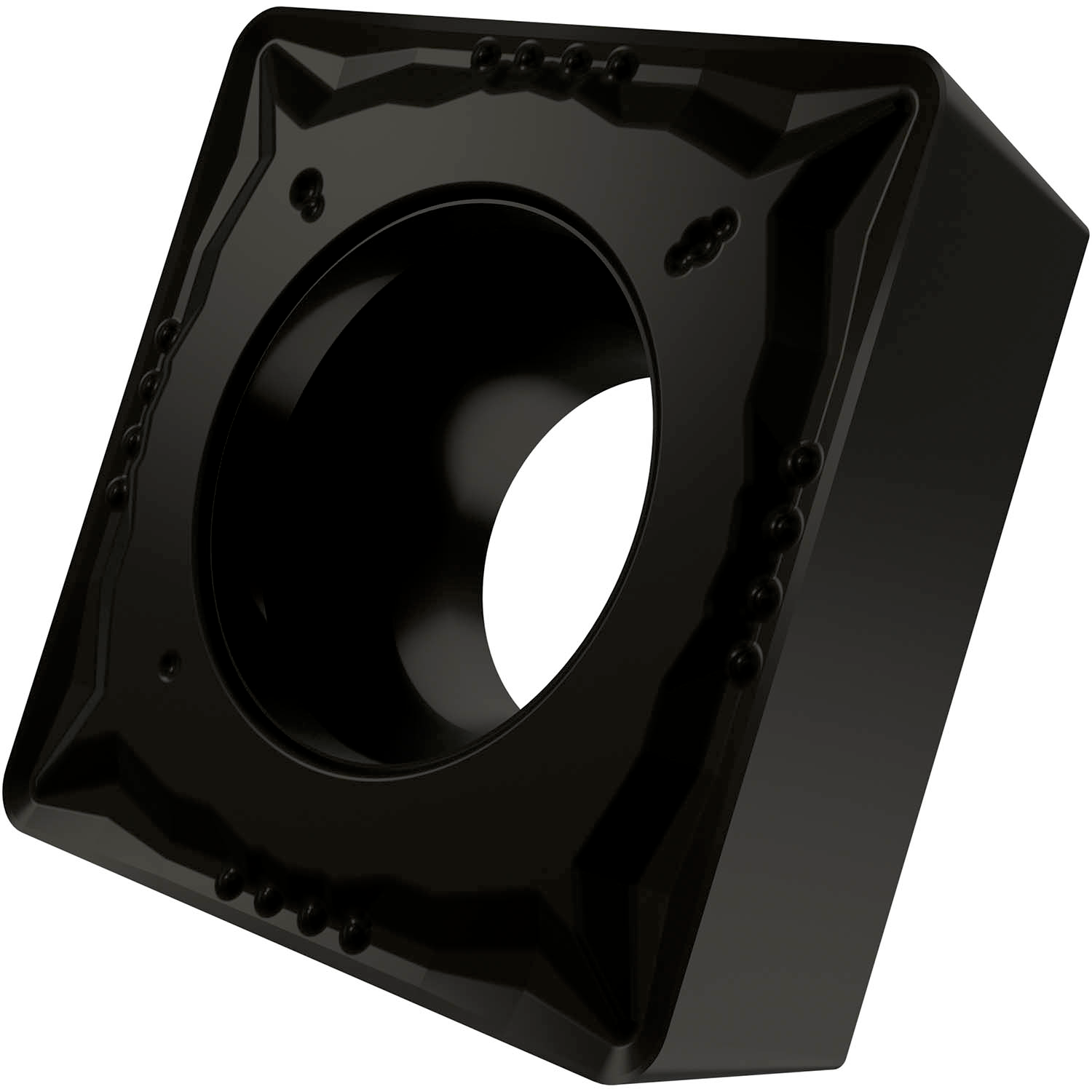

PRAMET SCMT 09T304E-FM:T7335 Turning inserts positive

Description

Single-sided positive turning insert, square with 7° clearance, inscribed circle diameter of 9.525mm, 3.97mm thick, 0.4mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker FM with rounded cutting edges, in grade T7335, a MT-CVD coated functionally graded WC-Co carbide within ISO range M20 -M40, for fine to medium machining of stainless-steels

Additional information

Weight	0.0172 kg
barcode
Additional Information	Description: Value EAN number: 3603602901644 Product number (SAP): 80017110 Ordering code ANSI: SCMT 32.51-FM:T7335 Gross weight – grams: 4.48 Inscribed circle diameter – millimeter (IC): 9.525 mm Fixing hole diameter – millimeter (D1): 4.4 mm Cutting edge length – millimeter (L): 9.525 mm Insert thickness – millimeter (S): 3.97 mm Grade: T7335 Corner radius – millimeter (RE): 0.4 mm Insert Clearance Code and Angle: C 7° Insert Design: SCMT Insert size: 09 Insert Thickness: T3 Insert Type: T Chipbreaker manufacturer's designation (CBMD): FM Insert shape code (SC): S – square Tool Design: SC Insert Geometry: Positive ISO: SCMT09T304E-FM:T7335
