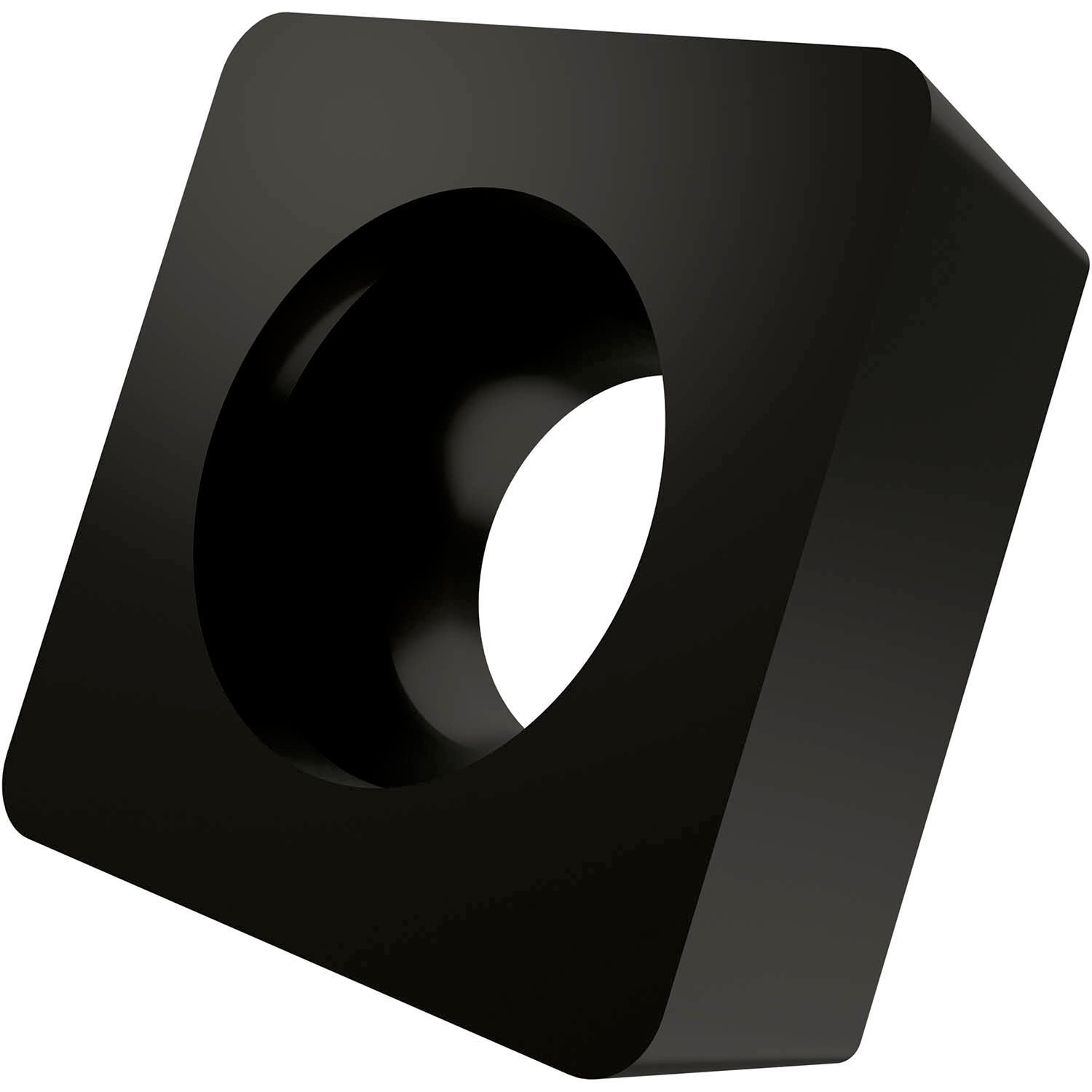

PRAMET SCMW 09T308:T5315 Turning inserts positive

Product Code: SCMW 09T308:T5315

$17.68$16.07 Ex. GST

Product Code: SCMW 09T308:T5315 SKU SCMW 09T308:T5315 Categories , ,
PRAMET SCMW 09T308:T5315 Turning inserts positive

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Single-sided positive turning insert, square with 7° clearance, inscribed circle diameter of 9.525mm, 3.97mm thick, 0.8mm nose radius and indexing accuracy according to ISO-tolerance class-M, in grade T5315, a MT-CVD coated WC-Co carbide within ISO range K10 -K25, for fine to medium machining of cast-irons

Additional information

Weight 0.0172 kg
barcode
Additional Information

Description: Value
EAN number: 3603603076464
Product number (SAP): 80026286
Ordering code ANSI: SCMW 32.52:T5315
Gross weight – grams: 3.624
Inscribed circle diameter – millimeter (IC): 9.525 mm
Fixing hole diameter – millimeter (D1): 4.4 mm
Cutting edge length – millimeter (L): 9.525 mm
Insert thickness – millimeter (S): 3.97 mm
Grade: T5315
Corner radius – millimeter (RE): 0.8 mm
Insert Clearance Code and Angle: C 7°
Insert Design: SCMW
Insert size: 09
Insert Thickness: T3
Insert Type: W
Chipbreaker manufacturer's designation (CBMD): No chipbreaker
Insert shape code (SC): S – square
Tool Design: SC
Insert Geometry: Positive
ISO: SCMW09T308:T5315

Brand

PRAMET
