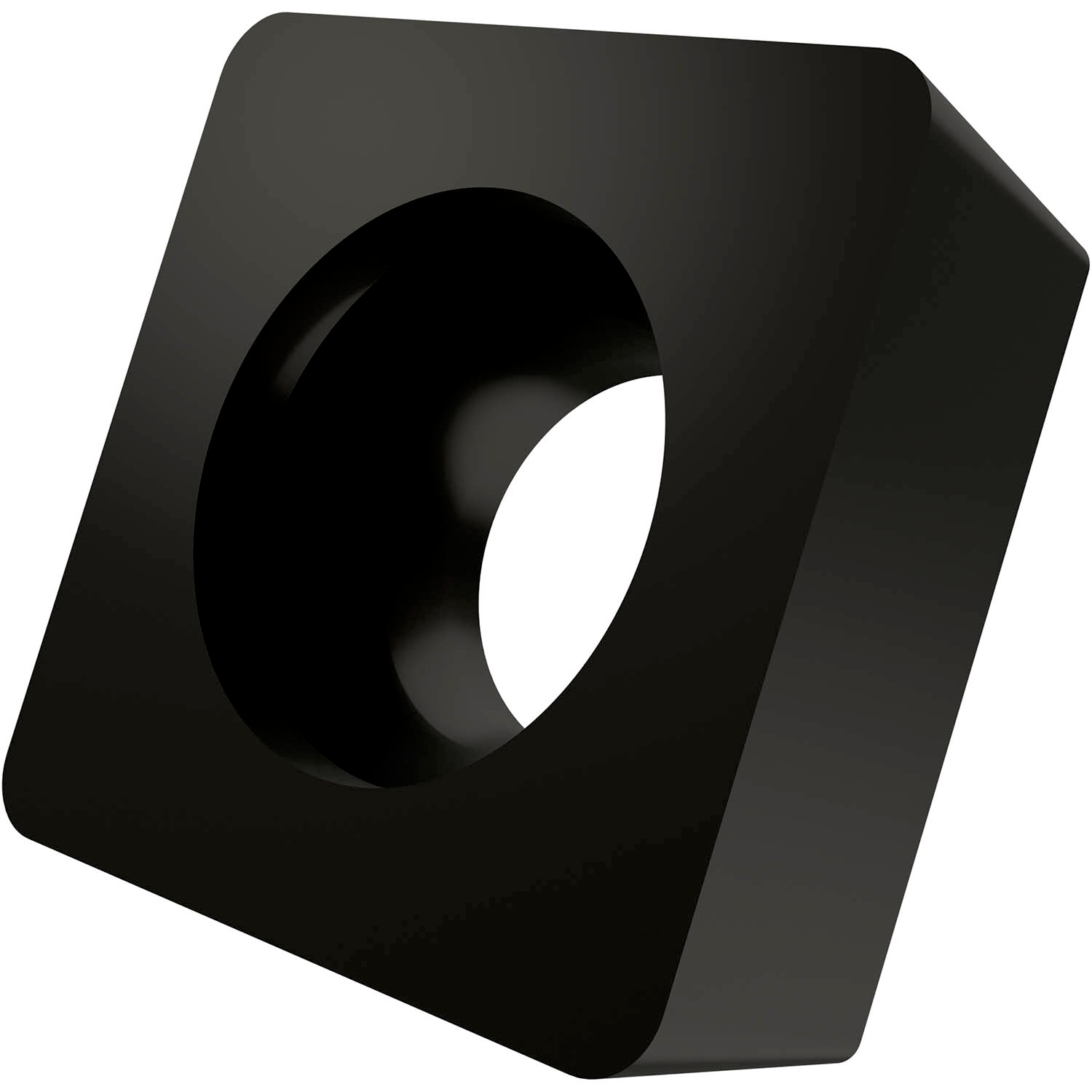

PRAMET SCMW 120408:T5305 Turning inserts positive

Description: Value
EAN number: 3603602912220
Product number (SAP): 80023038
Ordering code ANSI: SCMW 432:T5305
Gross weight – grams: 8.335
Inscribed circle diameter – millimeter (IC): 12.7 mm
Fixing hole diameter – millimeter (D1): 5.5 mm
Cutting edge length – millimeter (L): 12.7 mm
Insert thickness – millimeter (S): 4.76 mm
Grade: T5305
Corner radius – millimeter (RE): 0.8 mm
Insert Clearance Code and Angle: C 7°
Insert Design: SCMW
Insert size: 12
Insert Thickness: 04
Insert Type: W
Chipbreaker manufacturer's designation (CBMD): No chipbreaker
Insert shape code (SC): S – square
Tool Design: SC
Insert Geometry: Positive
ISO: SCMW120408:T5305
