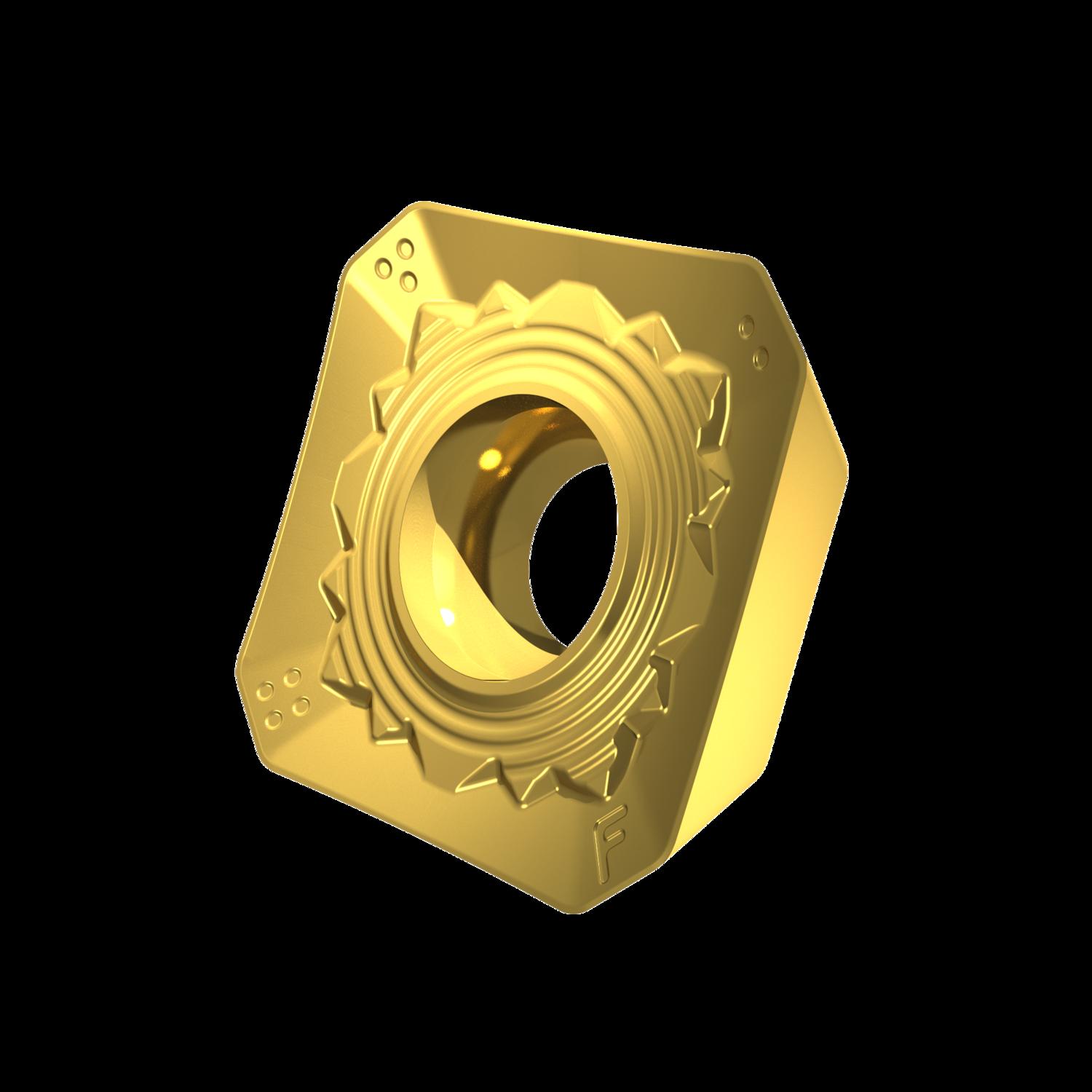

PRAMET SDET 13T3AFSN-F:M6330 Milling – other and drilling inserts clamped by screw

Product Code: SDET 13T3AFSN-F:M6330

$27.76$25.24 Ex. GST

Product Code: SDET 13T3AFSN-F:M6330 SKU SDET 13T3AFSN-F:M6330 Categories ,
PRAMET SDET 13T3AFSN-F:M6330 Milling - other and drilling inserts clamped by screw

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Single-sided milling insert SDET 13T3 with chip-breakers, square for a maximum depth of cut of 6.4mm, with an indexing accuracy according to ISO-tolerance class-E and F geometry with rounded cutting edges and facet, M6330 PVD coated WC-Co carbide within ISO-grade ranges P20 -P35/M20 -M35 and S20 -S30 for machining of steel, stainless-steel and superalloy with face mills SSD13F

Additional information

Weight 0.0084 kg
barcode

3603603977013
Additional Information

Description: Value
EAN number: 3603603977013
Product number (SAP): 80034472
Ordering code ANSI: SDET 13T3AFSN-F:M6330
Gross weight – grams: 8.433
Inscribed circle diameter – millimeter (IC): 13.385 mm
Fixing hole diameter – millimeter (D1): 4.4 mm
Insert thickness – millimeter (S): 3.97 mm
Grade: M6330
Insert Clearance Code and Angle: D 15°
Insert Type: T
m-dimension – millimeter (M): 1.5 mm
Chipbreaker manufacturer's designation (CBMD): F
Insert shape code (SC): S – square
ISO: SDET13T3AFSN-F:M6330
