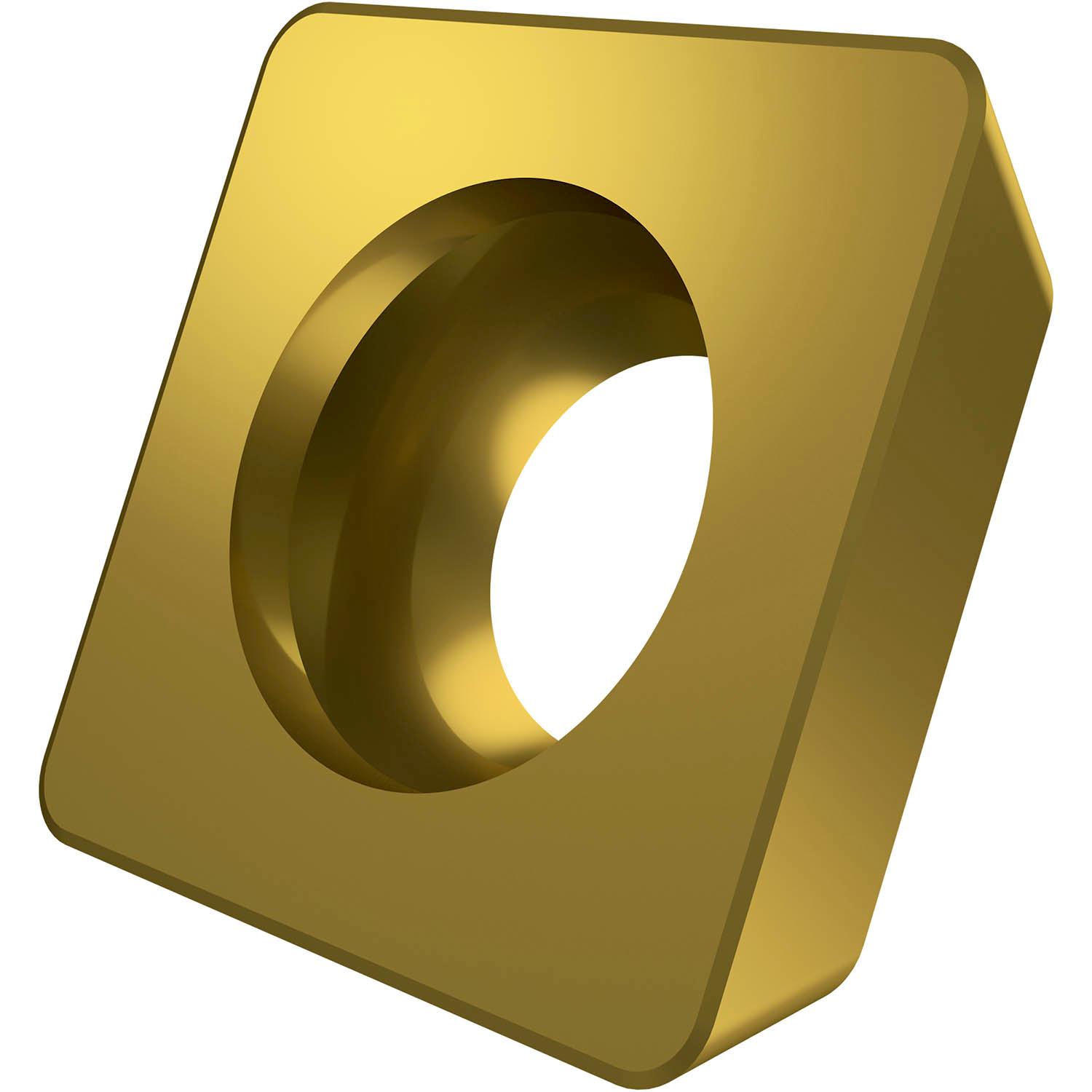

PRAMET SDEW 090308SN:M8340 Milling – other and drilling inserts clamped by screw

Product Code: SDEW 090308SN:M8340

$20.39$18.54 Ex. GST

Product Code: SDEW 090308SN:M8340 SKU SDEW 090308SN:M8340 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Single-sided milling insert SDEW 0903 with a plane rake surface, square for a maximum depth of cut of 4.5mm, with 0.8mm corner radius, an indexing accuracy according to ISO-tolerance class-E with rounded cutting edges and facet, M8340 PVD coated fine grained WC-Co carbide for machining with chamfer mills SSD09

Additional information

Weight 0.0198 kg
barcode
Additional Information

Description: Value
EAN number: 3603602993809
Product number (SAP): 80025038
Ordering code ANSI: SDEW 322SN:M8340
Gross weight – grams: 2.398
Inscribed circle diameter – millimeter (IC): 9.525 mm
Fixing hole diameter – millimeter (D1): 4.4 mm
Insert thickness – millimeter (S): 3.18 mm
Grade: M8340
Corner radius – millimeter (RE): 0.8 mm
Insert Clearance Code and Angle: D 15°
Insert size: 09
Insert Type: W
Insert shape code (SC): S – square
ISO: SDEW090308SN:M8340

Brand

PRAMET
