PRAMET SDFCR 1212 K 07-S Turning holders external

Description

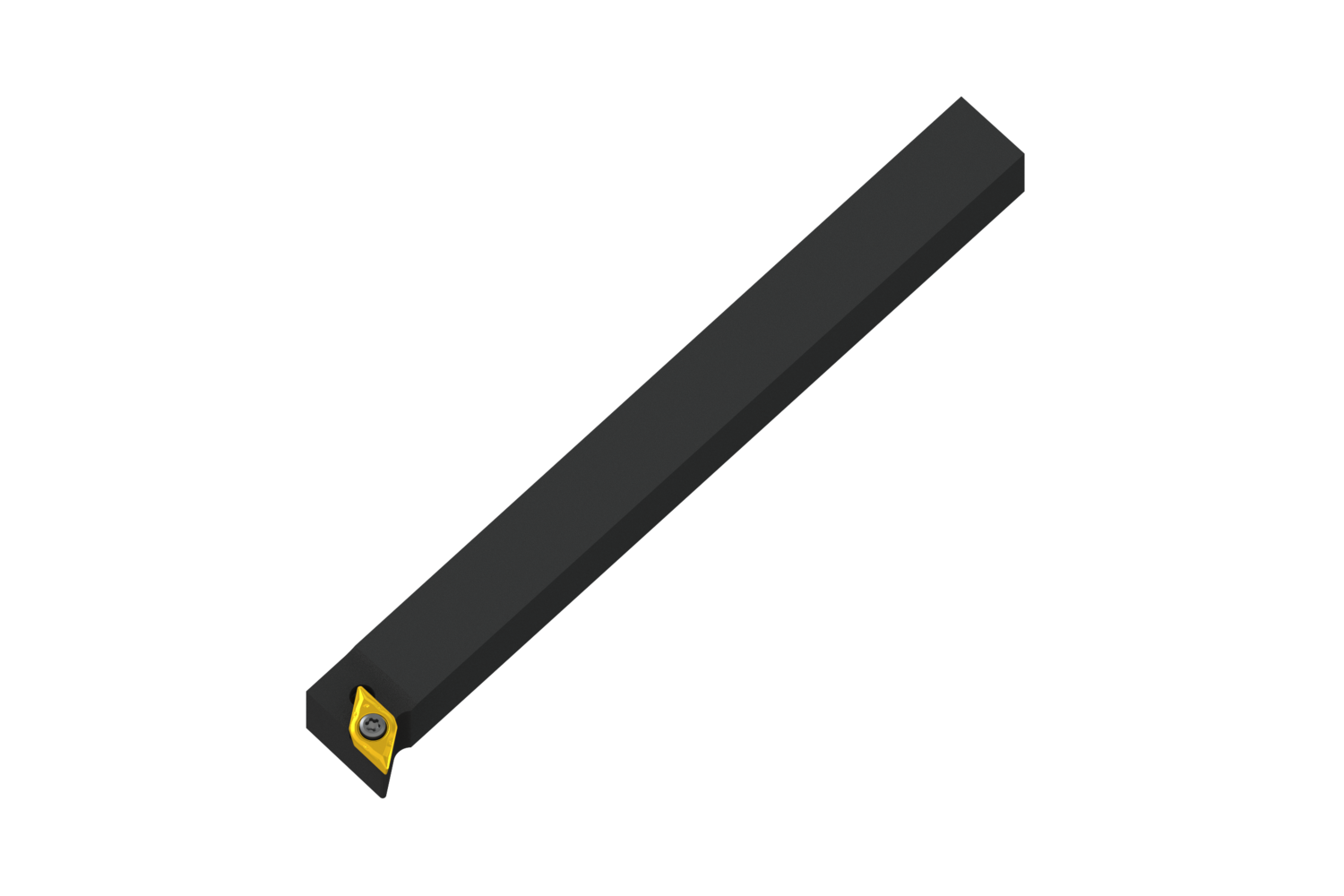

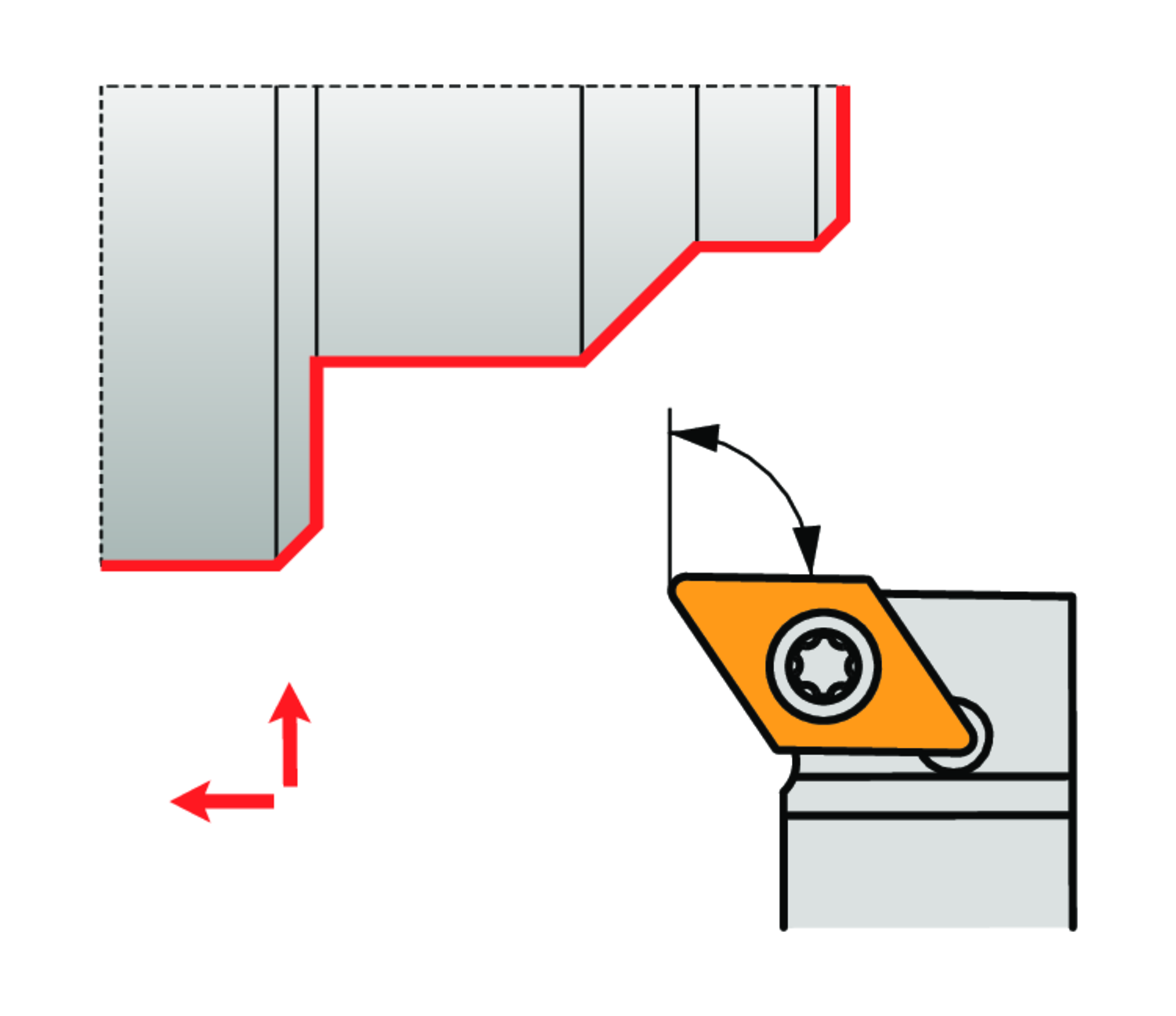

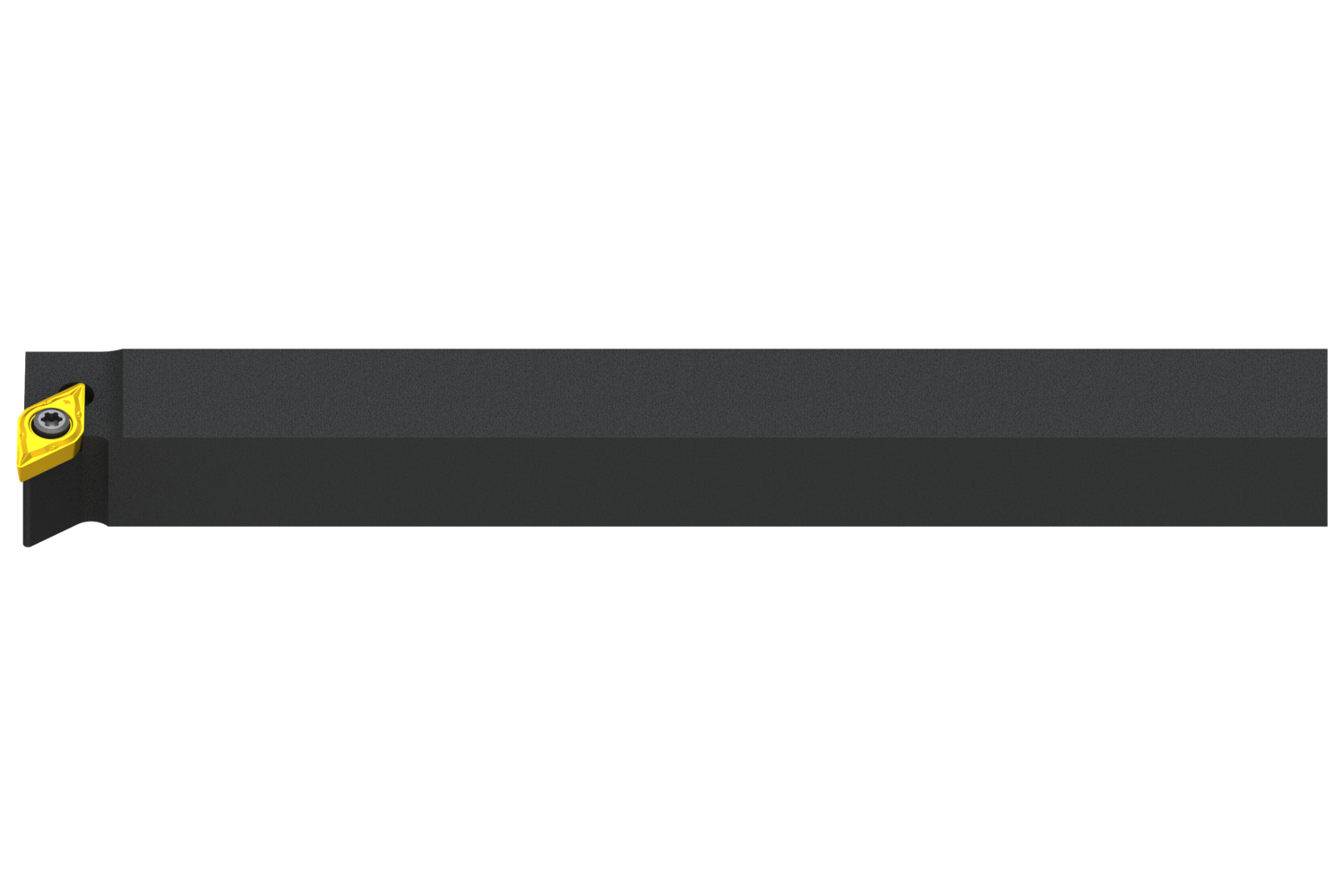

Screw clamp turning tool also compatible with sliding head machines for holding a 55° rhombus positive insert with an inscribed circle diameter of 6.35mm, 2.38mm thick (ISO designation DC.. 0702.. ), right hand 90° end cutting with off-set shank, 12mm tool height x 12mm width x 125mm long for taper turning and longitudinal turning with and without shoulder

Additional information

Weight	0.1400 kg
barcode	3603603946736

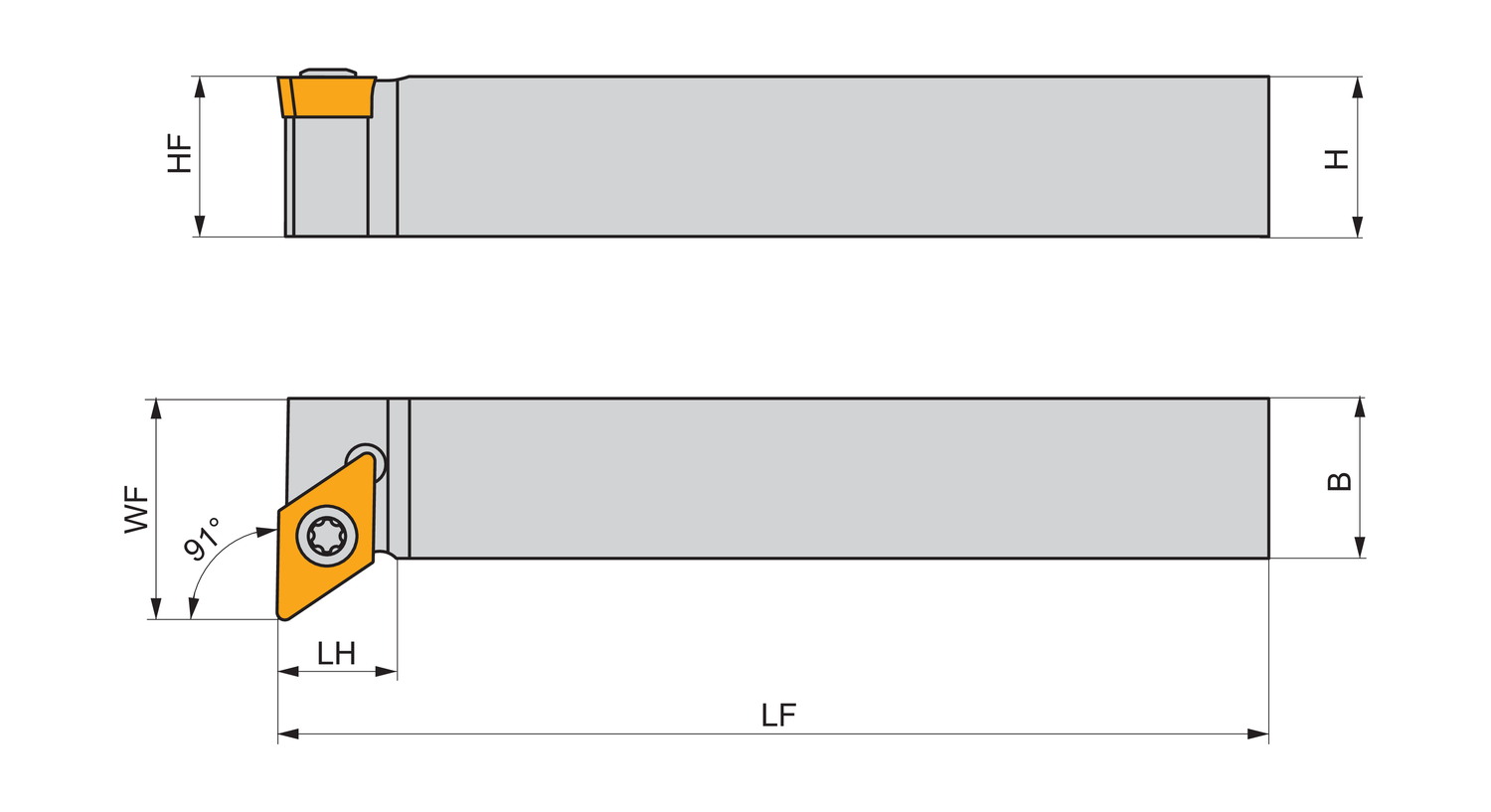

Additional Information	Description: Value EAN number: 3603603946736 Product number (SAP): 86039447 Ordering code ANSI: SDFCR 1212 K 07-S Gross weight – grams: 172.7 Shank height – millimeter (H): 12 mm Shank width – millimeter (B): 12 mm Functional height – millimeter (HF): 12 mm Functional width – millimeter (WF): 16 mm Functional length – millimeter (LF): 125 mm Head length – millimeter (LH): 8.8 mm Inclination angle (LAMS): 0 Orthogonal rake angle (GAMO): 0 Net weight – grams: 140 Insert size: 07 Sliding Head Turning Tool: YES ISO: SDFCR1212K07-S
