PRAMET SDFCR 1616 K 11-S Turning holders external

Description

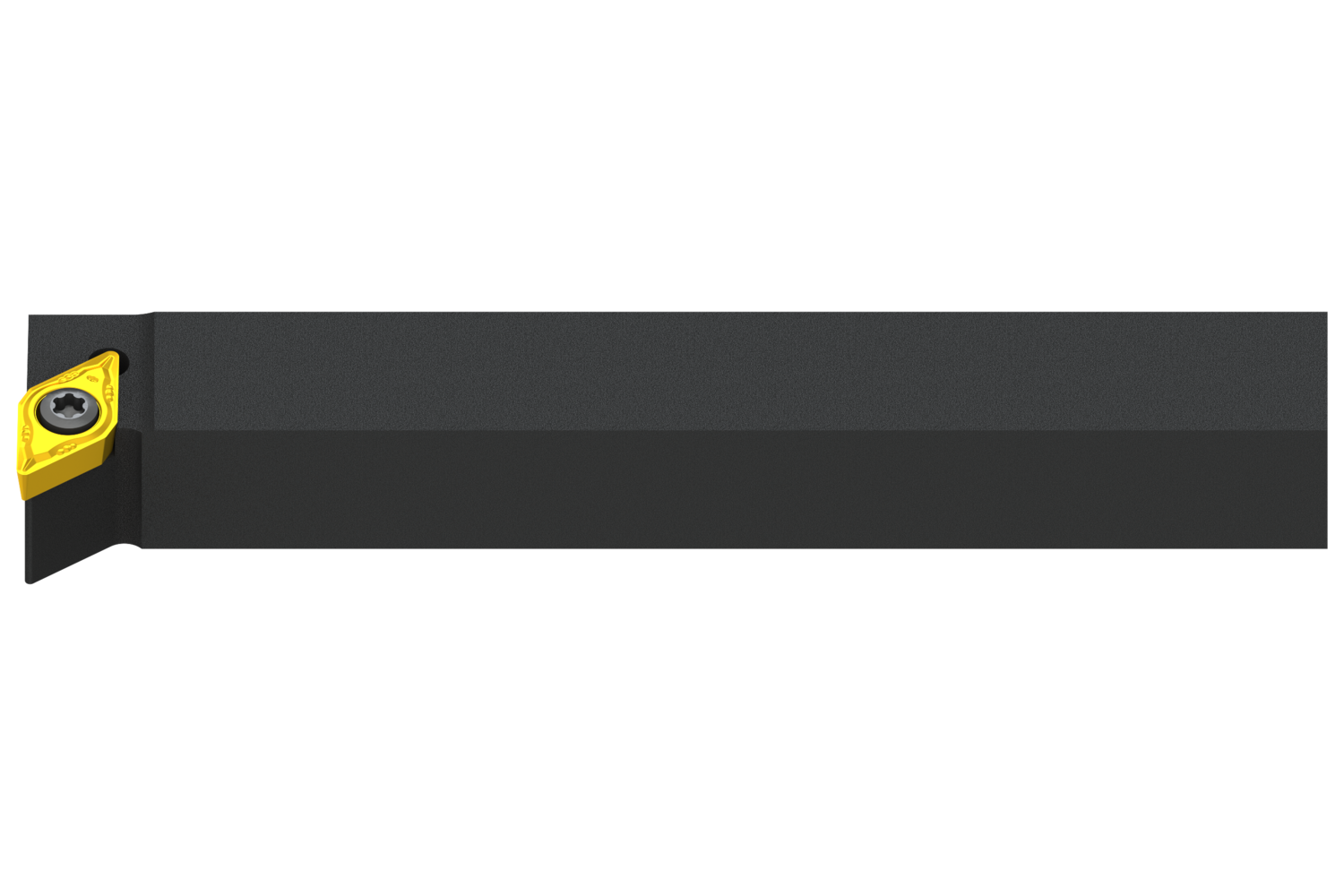

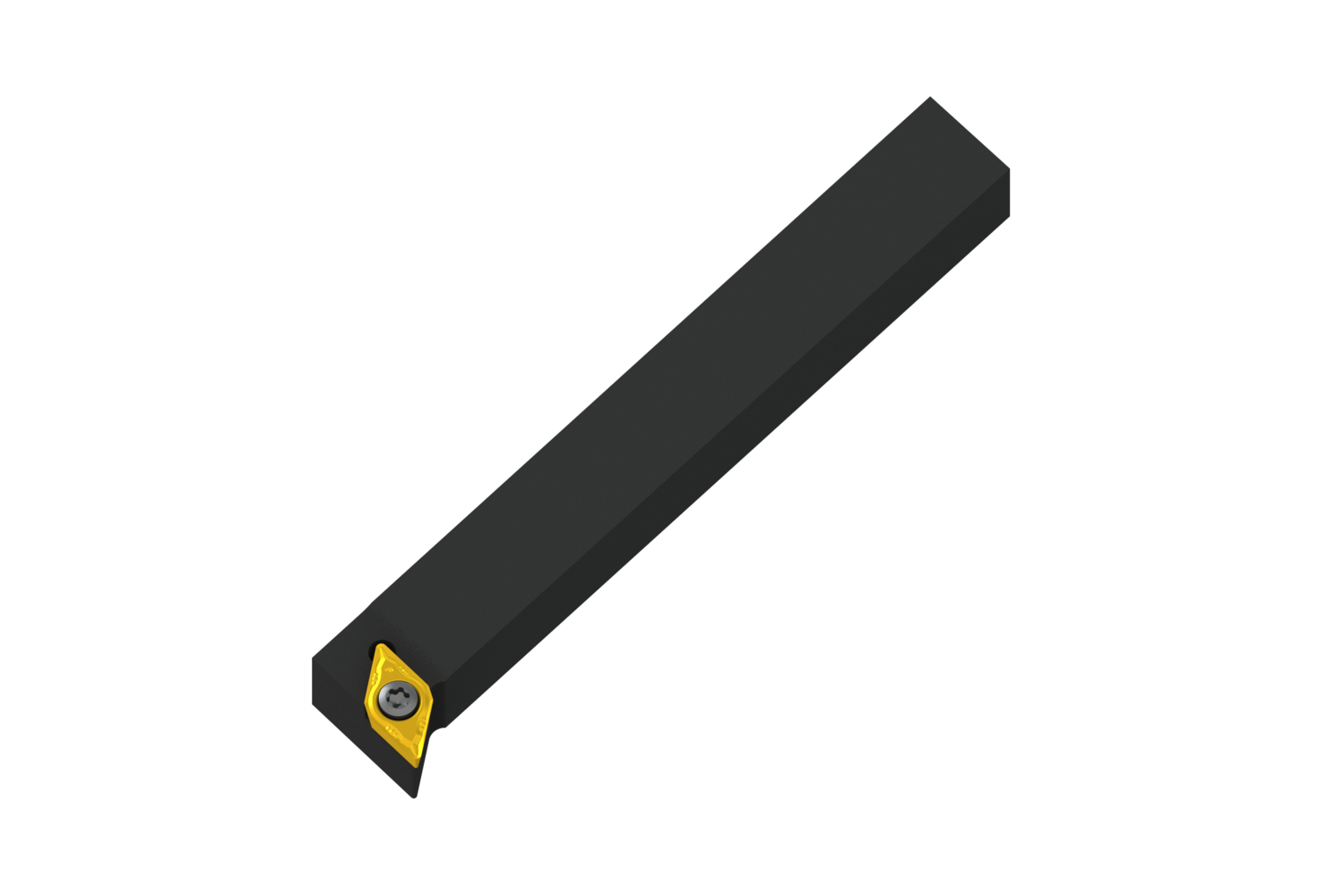

Screw clamp turning tool also compatible with sliding head machines for holding a 55° rhombus positive insert with an inscribed circle diameter of 9.525mm, 3.97mm thick (ISO designation DC.. 11T3.. ), right hand 90° end cutting with off-set shank, 16mm tool height x 16mm width x 125mm long for taper turning and longitudinal turning with and without shoulder

Additional information

Weight	0.2470 kg
barcode	3603603946743

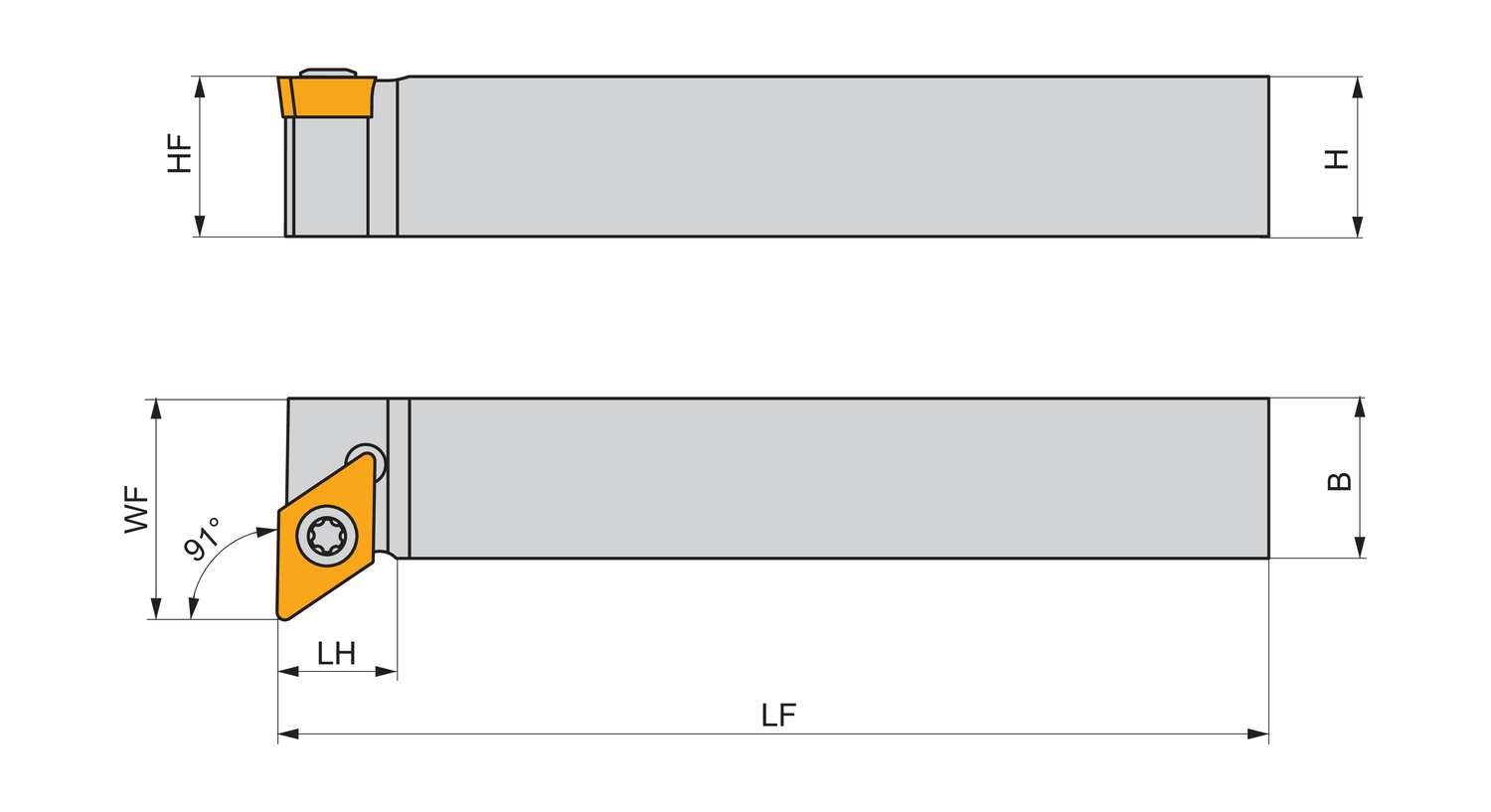

Additional Information	Description: Value EAN number: 3603603946743 Product number (SAP): 86039448 Ordering code ANSI: SDFCR 1616 K 11-S Gross weight – grams: 286 Shank height – millimeter (H): 16 mm Shank width – millimeter (B): 16 mm Functional height – millimeter (HF): 16 mm Functional width – millimeter (WF): 22 mm Functional length – millimeter (LF): 125 mm Head length – millimeter (LH): 11.9 mm Inclination angle (LAMS): 0 Orthogonal rake angle (GAMO): 0 Net weight – grams: 247 Insert size: 11 Sliding Head Turning Tool: YES ISO: SDFCR1616K11-S
