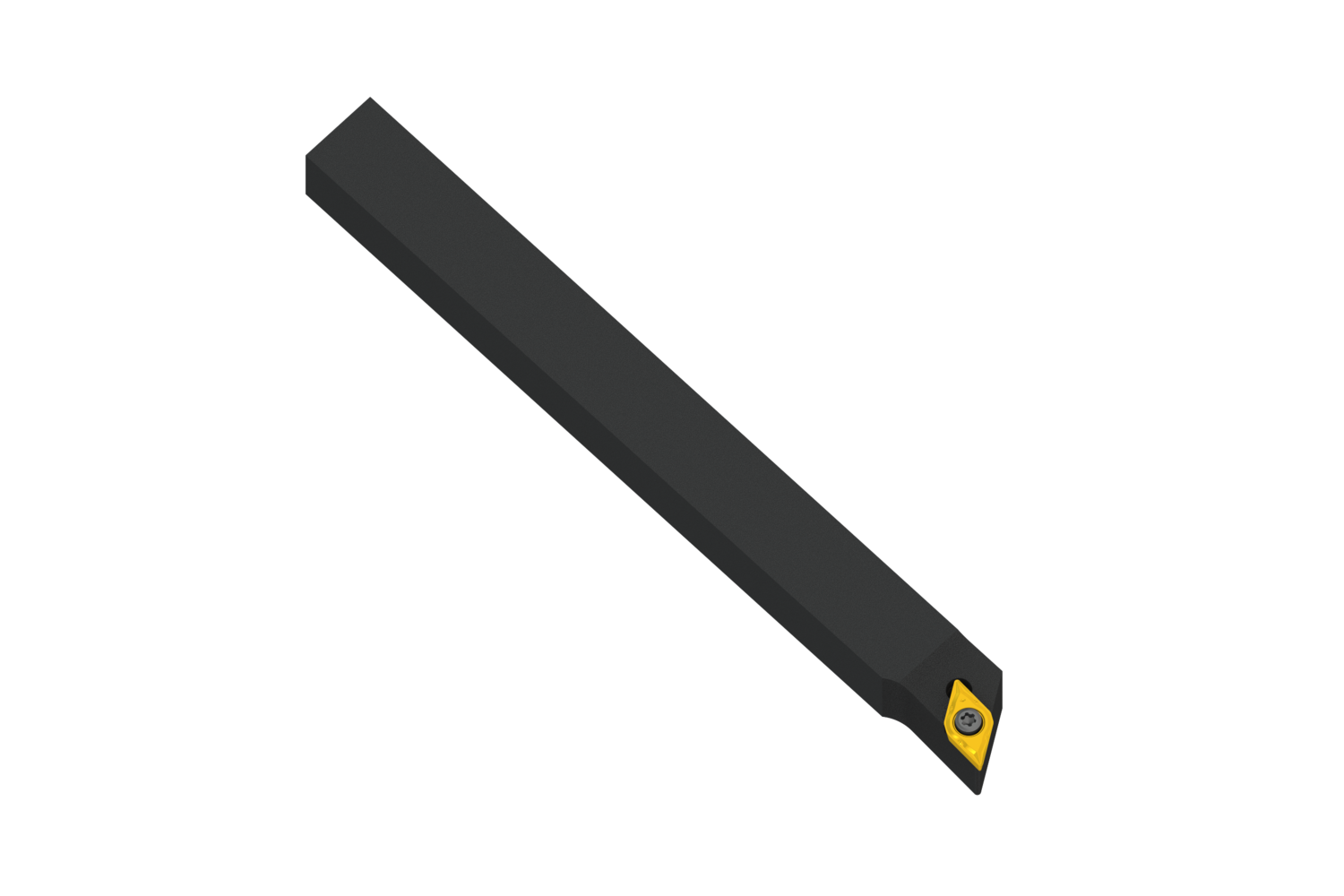

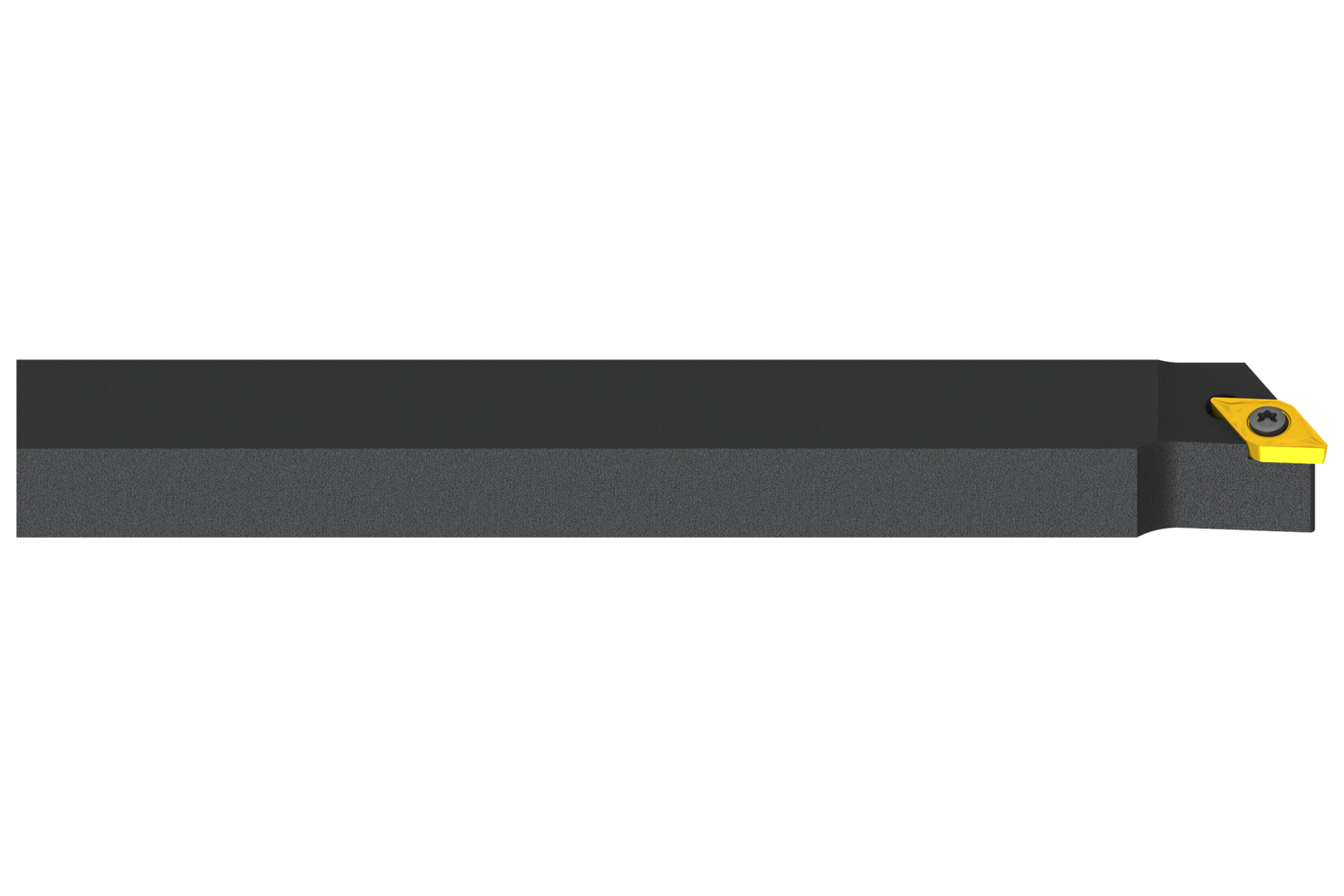

PRAMET SDJCL 1212 K 07-S Turning holders external

Description

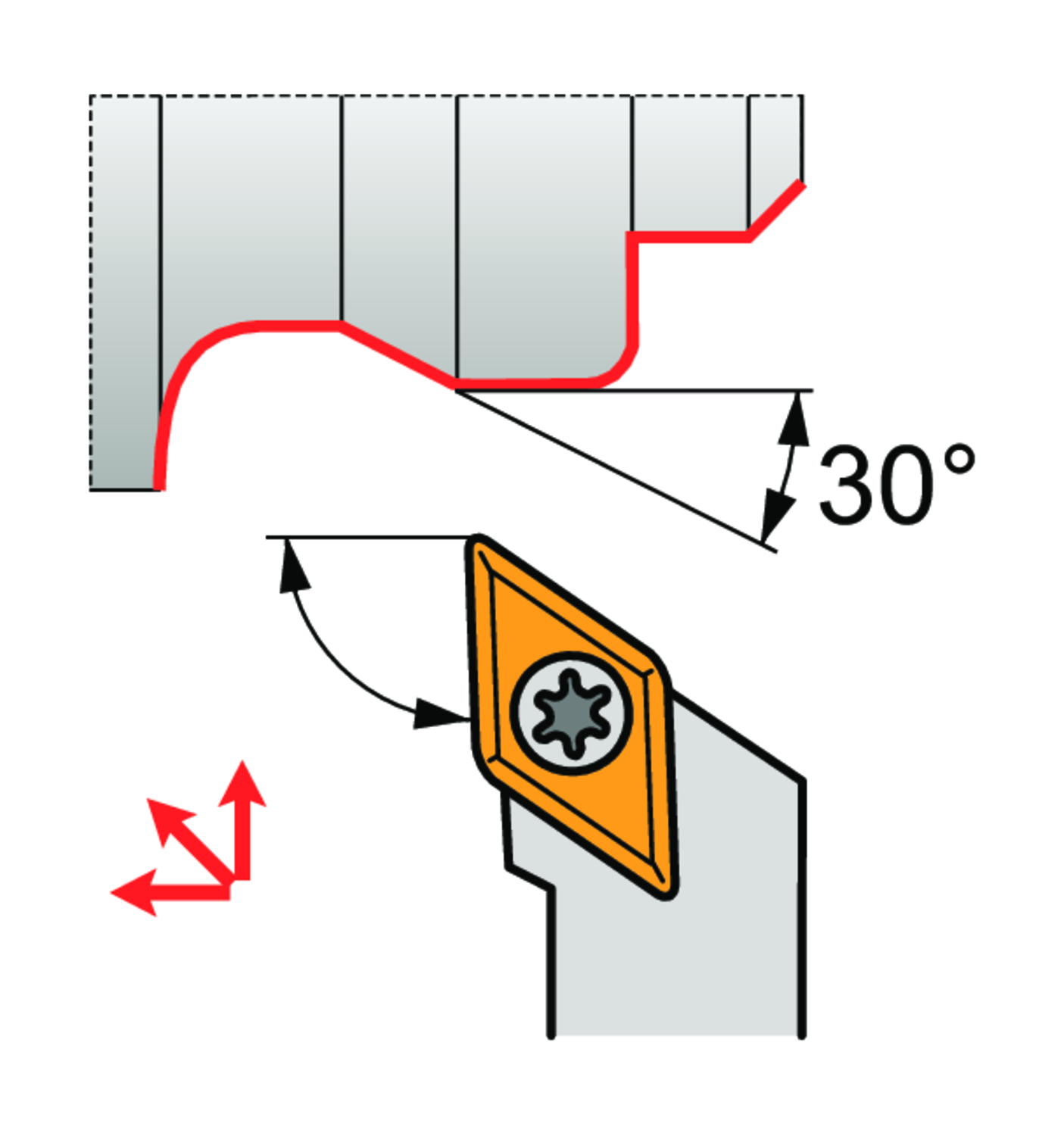

Screw clamp turning tool also compatible with sliding head machines for holding a 55° rhombus positive insert with an inscribed circle diameter of 9.525mm, 3.97mm thick (ISO designation DC.. 11T3.. ), left hand 93° side cutting with off-set shank, 12mm tool height x 12mm width x 125mm long for chamfering, taper turning, single and multi-directional copy turning and longitudinal turning with and without shoulder

Additional information

Weight	0.1340 kg
barcode	3603603946750

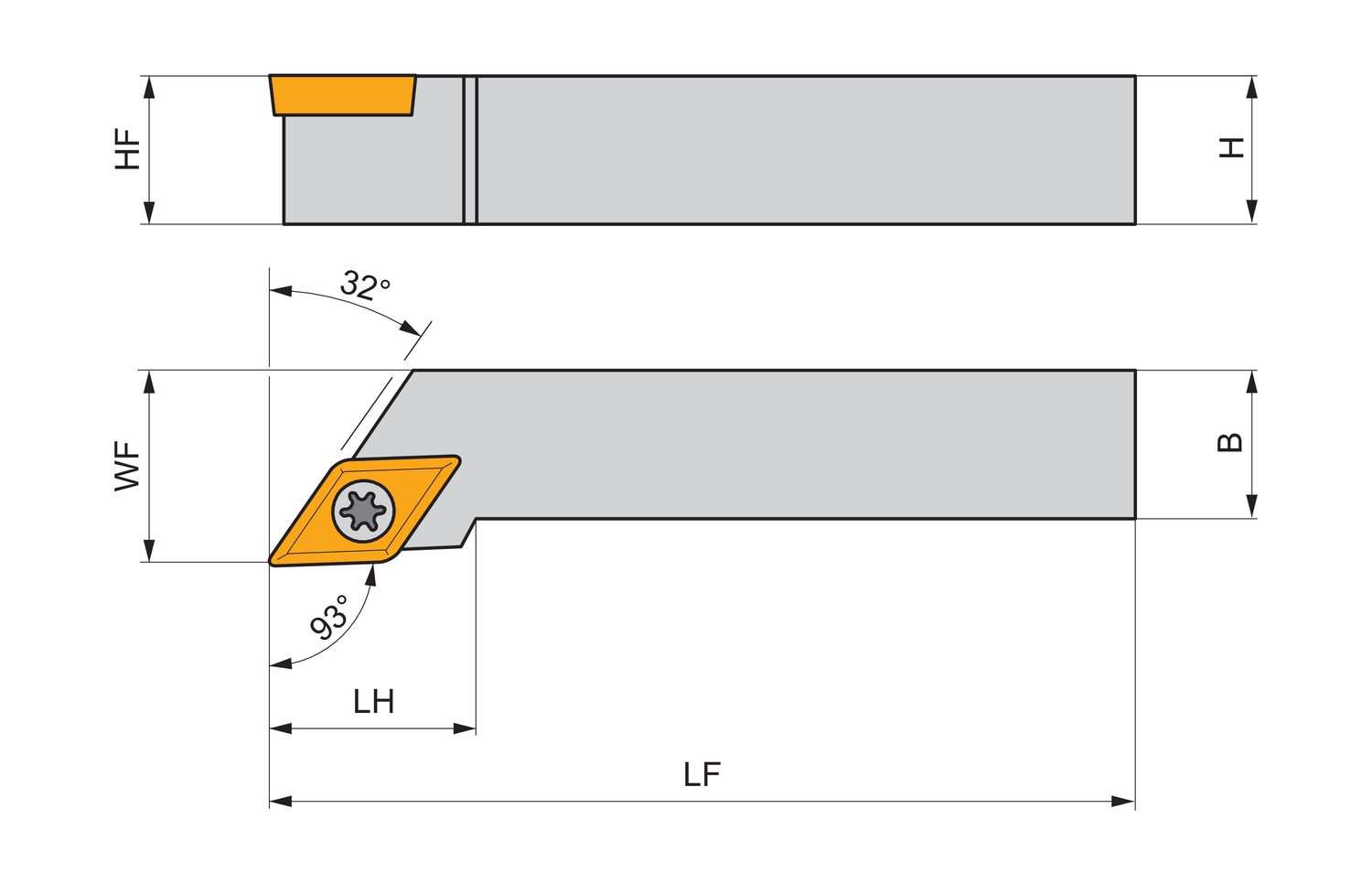

Additional Information	Description: Value EAN number: 3603603946750 Product number (SAP): 86039449 Ordering code ANSI: SDJCL 1212 K 07-S Gross weight – grams: 167 Shank height – millimeter (H): 12 mm Shank width – millimeter (B): 12 mm Functional height – millimeter (HF): 12 mm Functional width – millimeter (WF): 12 mm Functional length – millimeter (LF): 125 mm Head length – millimeter (LH): 18.2 mm Inclination angle (LAMS): 0 Orthogonal rake angle (GAMO): 0 Net weight – grams: 134 Insert size: 07 Sliding Head Turning Tool: YES ISO: SDJCL1212K07-S
