PRAMET SDJCL 2020 K 11-M-A Turning holders external

Product Code: SDJCL 2020 K 11-M-A

$181.28$164.80 Ex. GST

Product Code: SDJCL 2020 K 11-M-A SKU SDJCL 2020 K 11-M-A Categories , ,

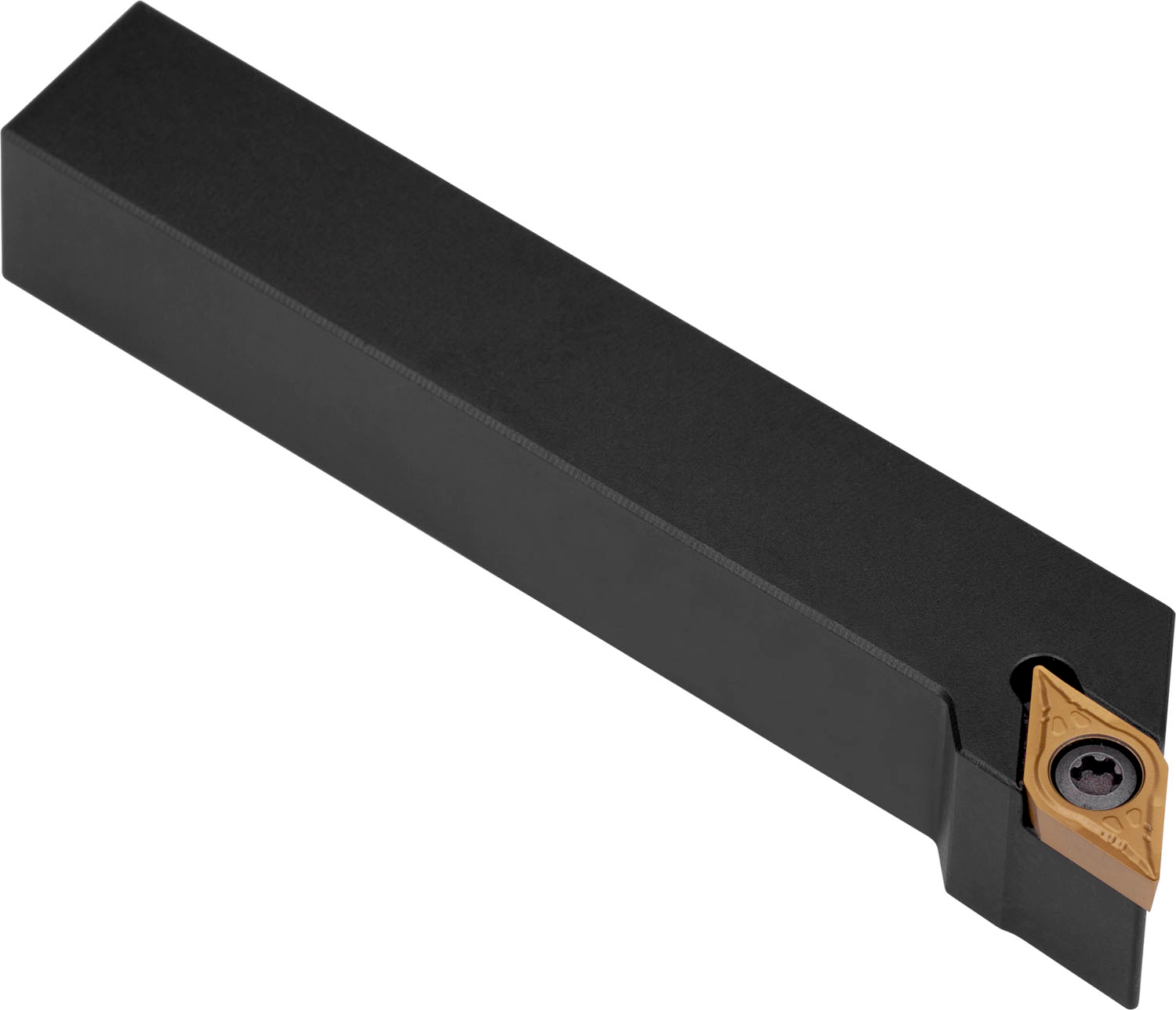

PRAMET SDJCL 2020 K 11-M-A Turning holders external

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Screw clamp turning tool for holding a 55° rhombus positive insert with an inscribed circle diameter of 9.525mm, 3.97mm thick (ISO designation DC.. 11T3.. ), left hand 93° side cutting with off-set shank, 20mm tool height x 20mm width x 125mm long for chamfering, taper turning, single and multi-directional copy turning and longitudinal turning with and without shoulder

Additional information

Weight 0.176 kg
barcode
Additional Information

Description: Value
EAN number: 3603602919489
Product number (SAP): 84000786
Ordering code ANSI: SDJCL 2020 K 11-M-A
Gross weight – grams: 414.1
Shank height – millimeter (H): 20 mm
Shank width – millimeter (B): 20 mm
Functional height – millimeter (HF): 20 mm
Functional width – millimeter (WF): 25 mm
Functional length – millimeter (LF): 125 mm
Head length – millimeter (LH): 20 mm
Inclination angle (LAMS): 0
Orthogonal rake angle (GAMO): 0
Net weight – grams: 412.4
Insert size: 11
ISO: SDJCL2020K11-M-A

Brand

PRAMET
