PRAMET SDJCL 2525 M 15 Turning holders external

Product Code: SDJCL 2525 M 15

$191.48$174.07 Ex. GST

Product Code: SDJCL 2525 M 15 SKU SDJCL 2525 M 15 Categories , ,
PRAMET SDJCL 2525 M 15 Turning holders external

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

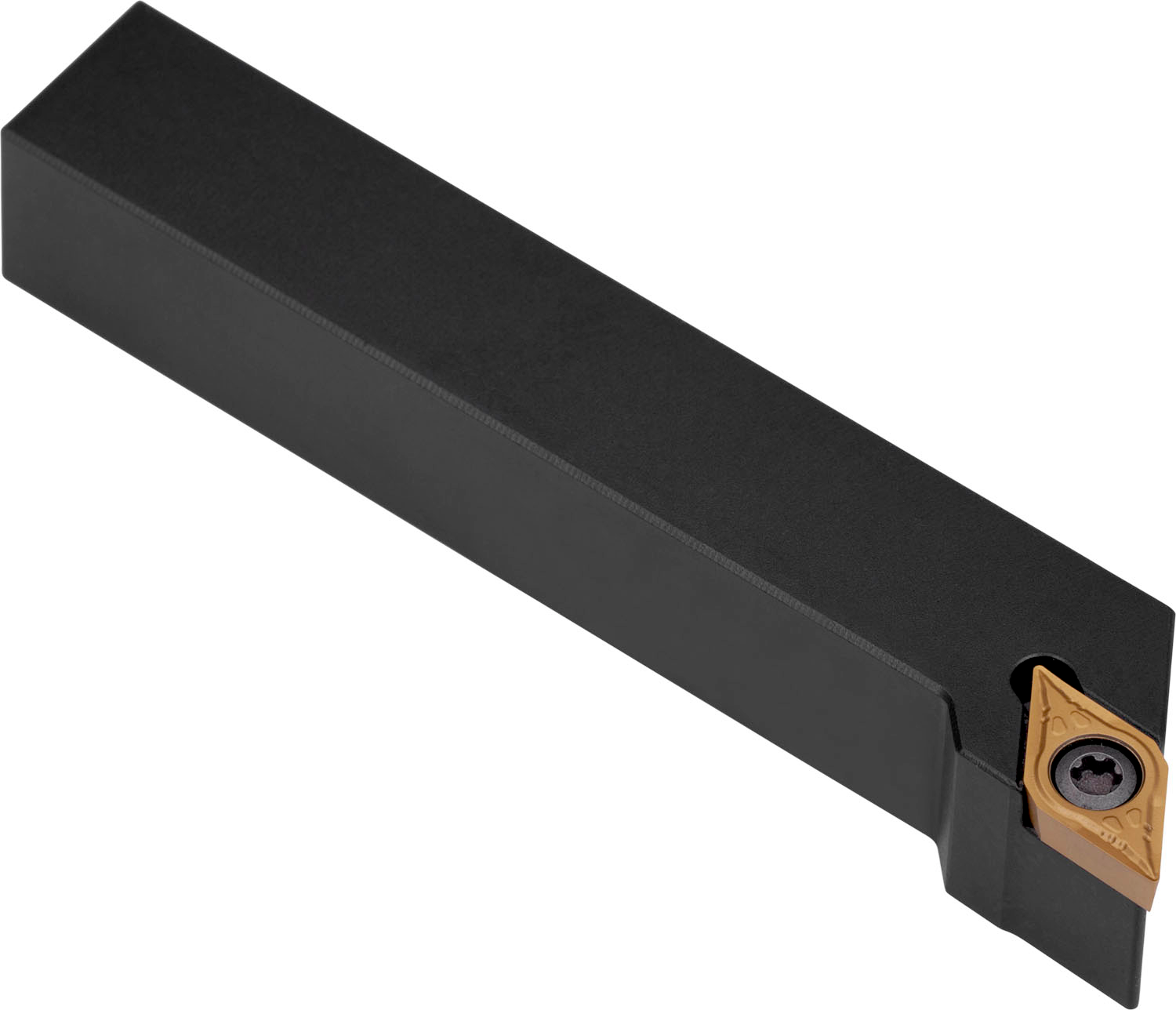

Screw clamp turning tool for holding a 55° rhombus positive insert with an inscribed circle diameter of 12.7mm, 4.76mm thick (ISO designation DC.. 1504.. ), left hand 93° side cutting with off-set shank, 25mm tool height x 25mm width x 150mm long for chamfering, taper turning, single and multi-directional copy turning and longitudinal turning with and without shoulder

Additional information

Weight 0.1859 kg
barcode
Additional Information

Description: Value
EAN number: 3603602963840
Product number (SAP): 86006623
Ordering code ANSI: SDJCL 2525 M 15
Gross weight – grams: 73.8
Shank height – millimeter (H): 25 mm
Shank width – millimeter (B): 25 mm
Functional height – millimeter (HF): 25 mm
Functional width – millimeter (WF): 32 mm
Functional length – millimeter (LF): 150 mm
Head length – millimeter (LH): 28 mm
Inclination angle (LAMS): 0
Orthogonal rake angle (GAMO): 0
Net weight – grams: 73.8
Insert size: 15
ISO: SDJCL2525M15

Brand

PRAMET
