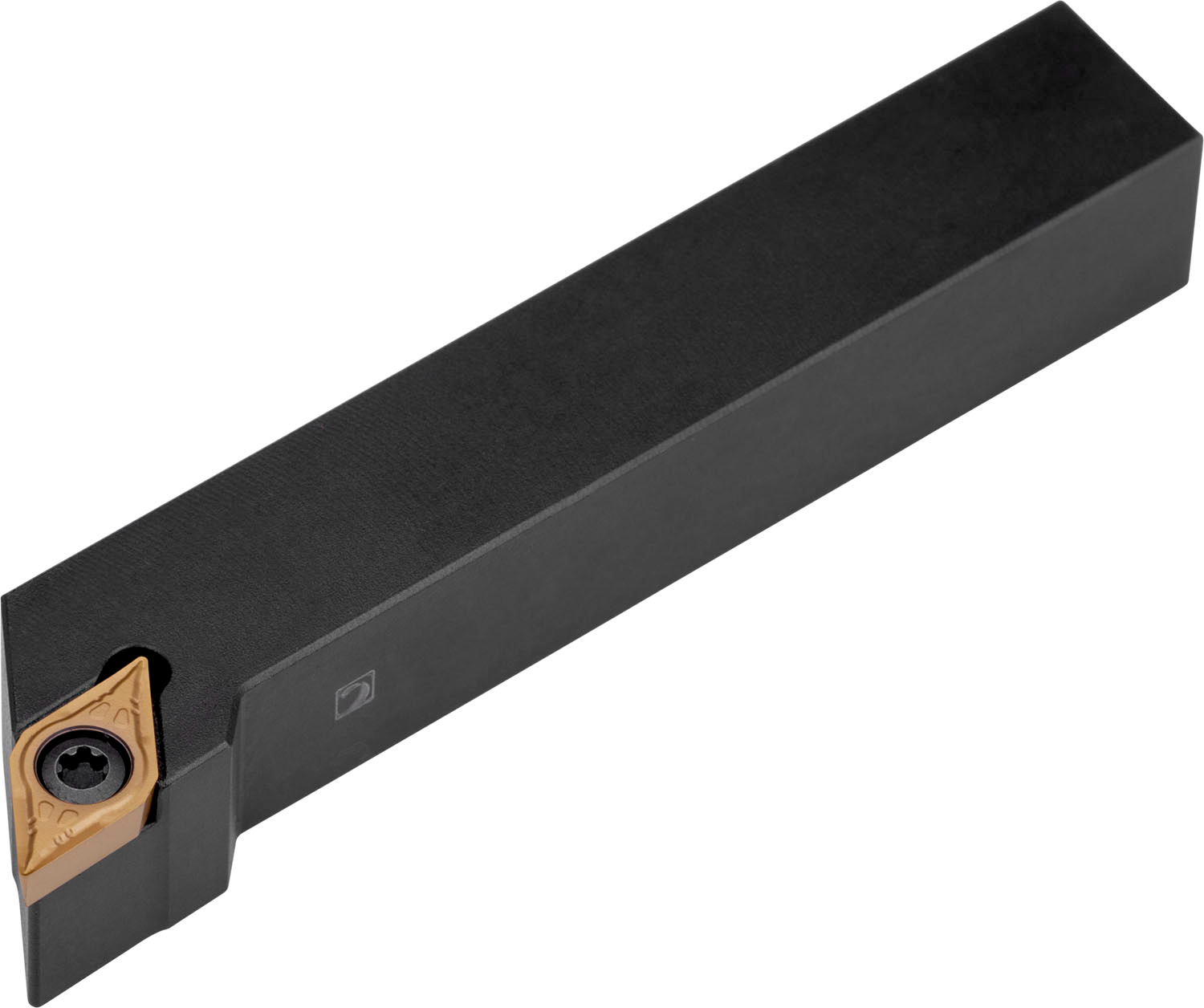

PRAMET SDJCR 1212 F 07 Turning holders external

Product Code: SDJCR 1212 F 07

$162.02$147.29 Ex. GST

Product Code: SDJCR 1212 F 07 SKU SDJCR 1212 F 07 Categories , ,
PRAMET SDJCR 1212 F 07 Turning holders external

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Screw clamp turning tool for holding a 55° rhombus positive insert with an inscribed circle diameter of 6.35mm, 2.38mm thick (ISO designation DC.. 0702.. ), right hand 93° side cutting with off-set shank, 12mm tool height x 12mm width x 80mm long for chamfering, taper turning, single and multi-directional copy turning and longitudinal turning with and without shoulder

Additional information

Weight 0.1573 kg
barcode
Additional Information

Description: Value
EAN number: 3603602921482
Product number (SAP): 84001104
Ordering code ANSI: SDJCR 1212 F 07
Gross weight – grams: 109.4
Shank height – millimeter (H): 12 mm
Shank width – millimeter (B): 12 mm
Functional height – millimeter (HF): 12 mm
Functional width – millimeter (WF): 16 mm
Functional length – millimeter (LF): 80 mm
Head length – millimeter (LH): 14 mm
Inclination angle (LAMS): 0
Orthogonal rake angle (GAMO): 0
Net weight – grams: 109.4
Insert size: 07
ISO: SDJCR1212F07

Brand

PRAMET
