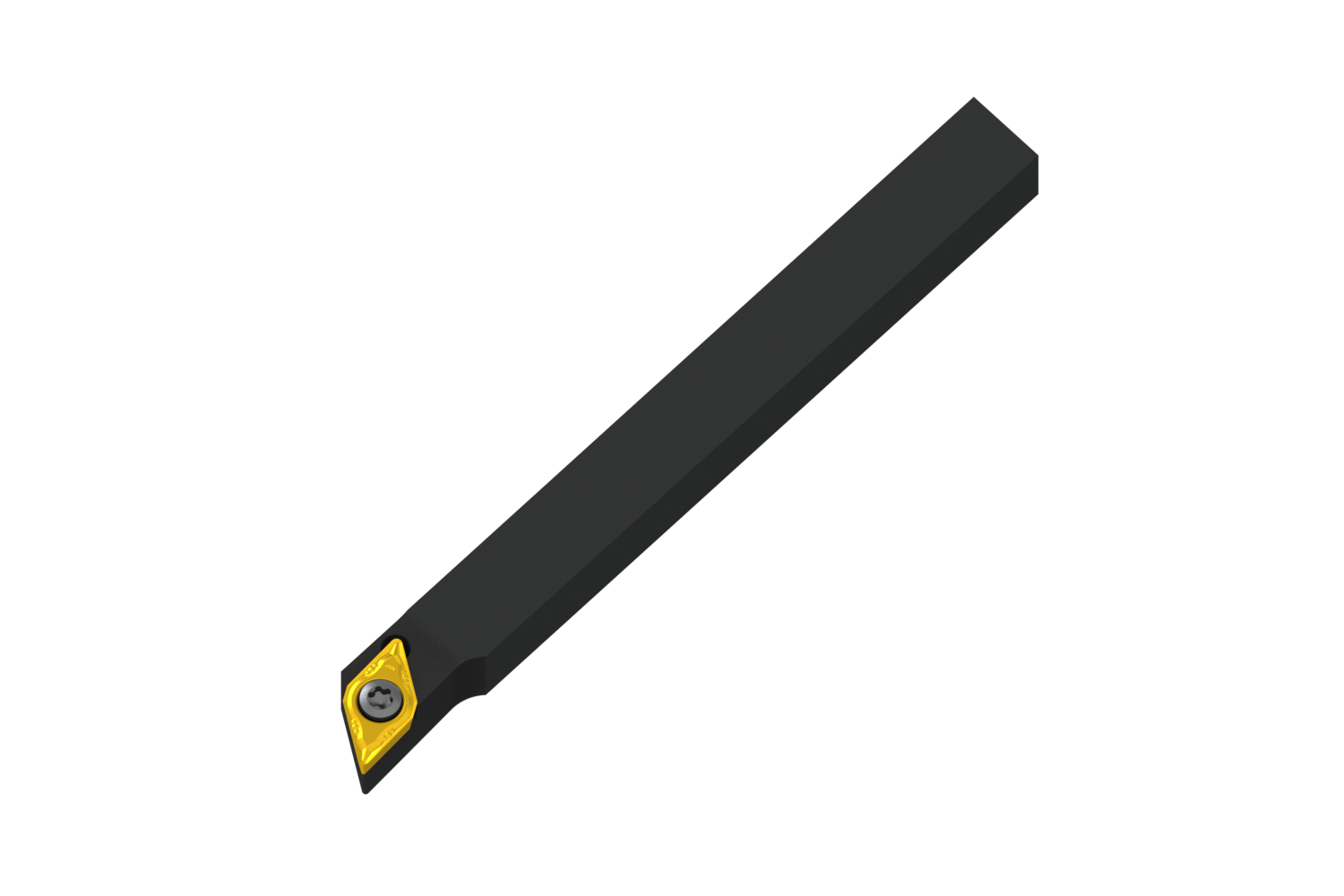

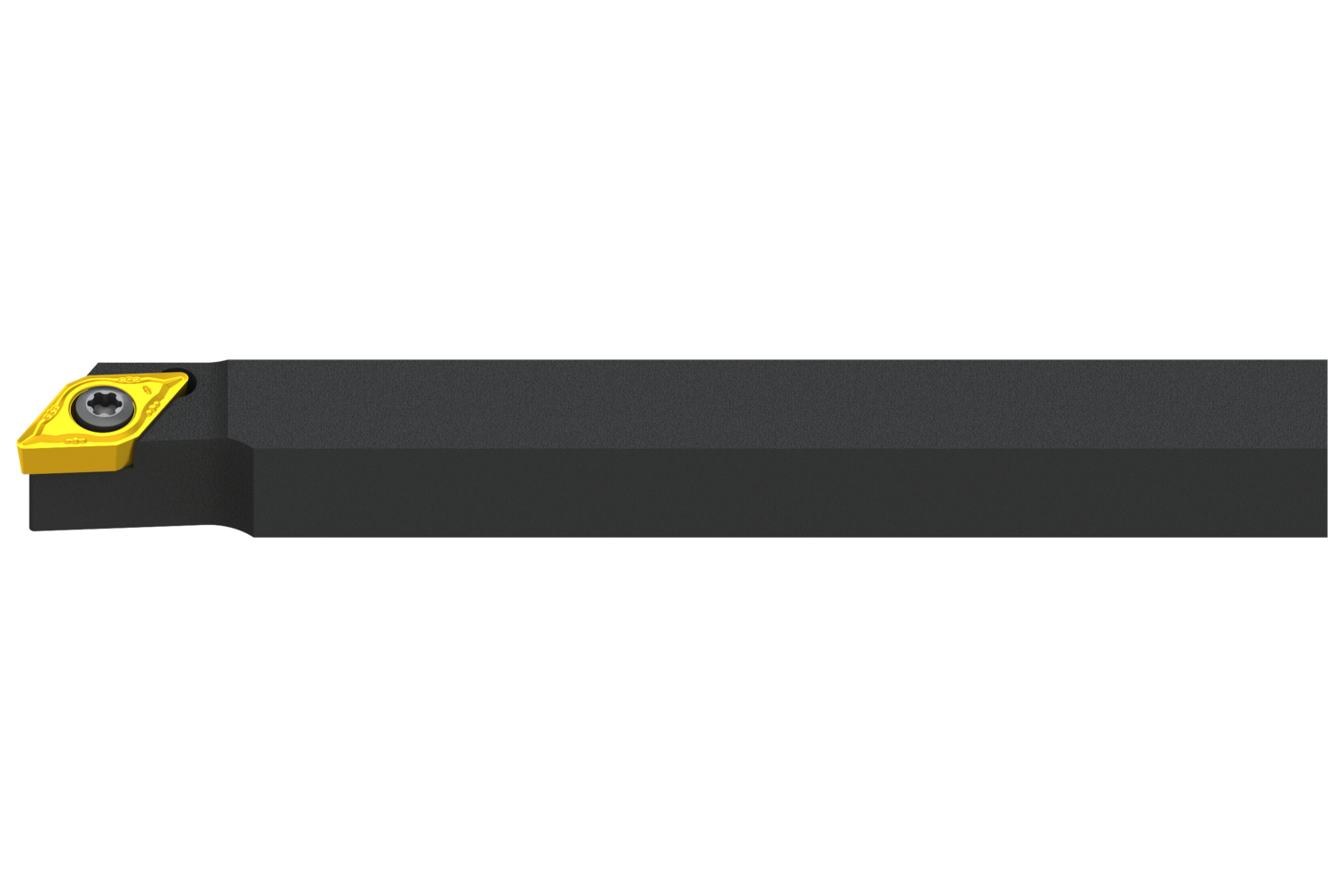

PRAMET SDJCR 1212 K 11-S Turning holders external

Product Code: SDJCR 1212 K 11-S

$173.35$157.59 Ex. GST

Product Code: SDJCR 1212 K 11-S SKU SDJCR 1212 K 11-S Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

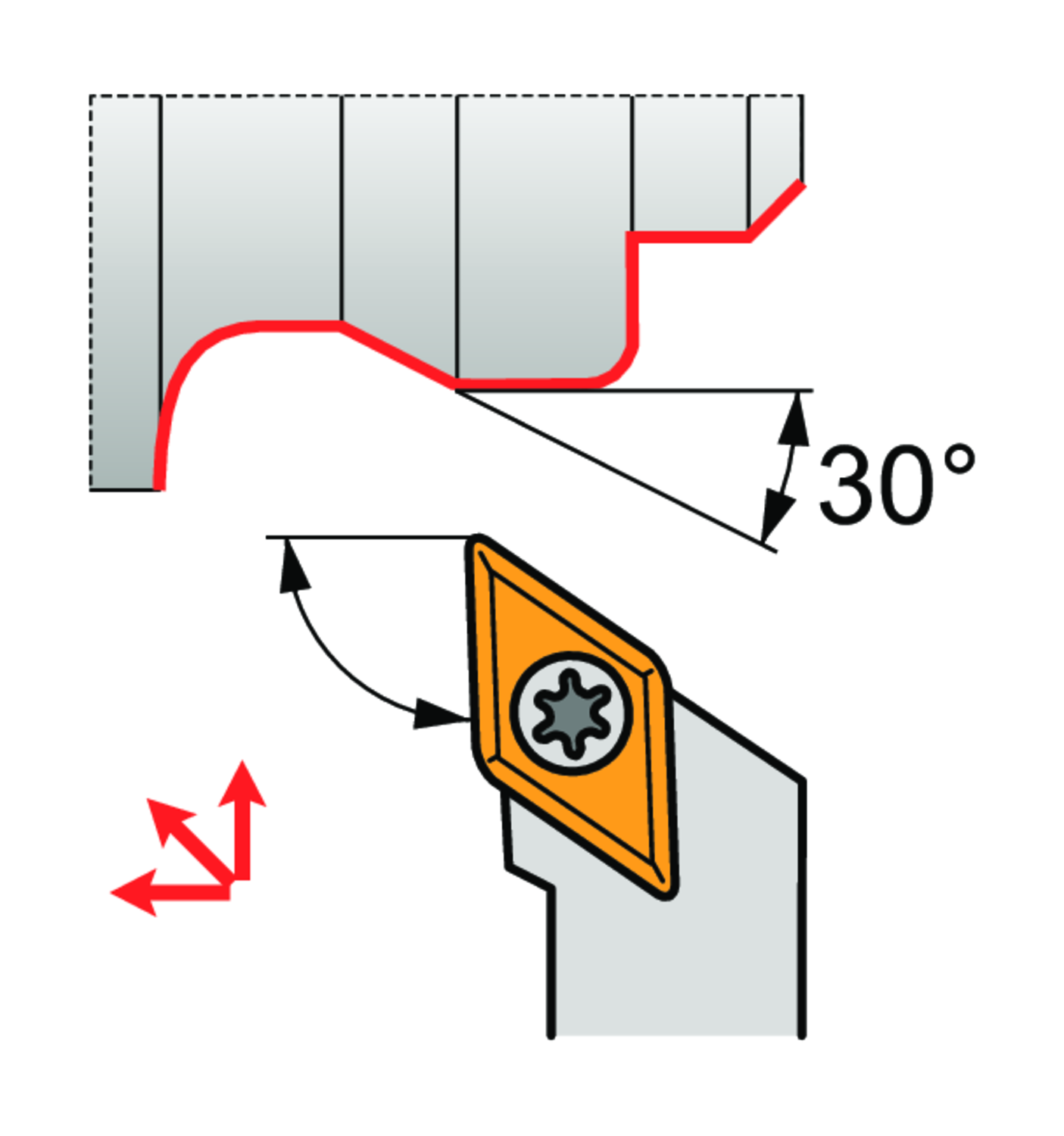

Screw clamp turning tool also compatible with sliding head machines for holding a 55° rhombus positive insert with an inscribed circle diameter of 9.525mm, 3.97mm thick (ISO designation DC.. 11T3.. ), right hand 93° side cutting with off-set shank, 12mm tool height x 12mm width x 125mm long for chamfering, taper turning, single and multi-directional copy turning and longitudinal turning with and without shoulder

Additional information

Weight 0.1300 kg
barcode

3603603946798

Additional Information

Description: Value
EAN number: 3603603946798
Product number (SAP): 86039453
Ordering code ANSI: SDJCR 1212 K 11-S
Gross weight – grams: 169.6

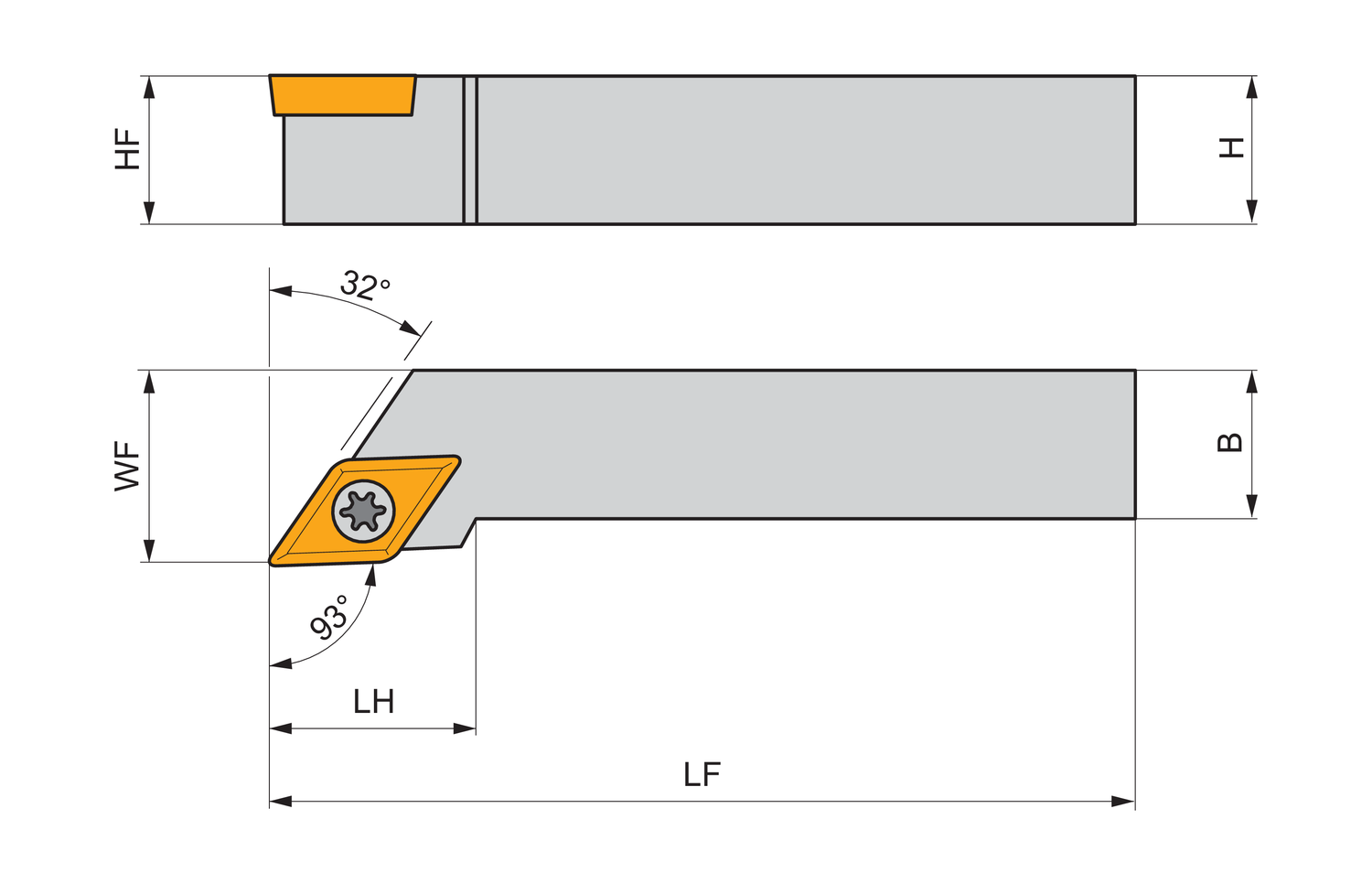

Shank height – millimeter (H): 12 mm
Shank width – millimeter (B): 12 mm
Functional height – millimeter (HF): 12 mm
Functional width – millimeter (WF): 12 mm
Functional length – millimeter (LF): 125 mm
Head length – millimeter (LH): 22.6 mm
Inclination angle (LAMS): 0
Orthogonal rake angle (GAMO): 0
Net weight – grams: 130
Insert size: 11
Sliding Head Turning Tool: YES
ISO: SDJCR1212K11-S
