PRAMET SDJCR 2525 M 11-M-A Turning holders external

Product Code: SDJCR 2525 M 11-M-A

$191.48$174.07 Ex. GST

Product Code: SDJCR 2525 M 11-M-A SKU SDJCR 2525 M 11-M-A Categories , ,

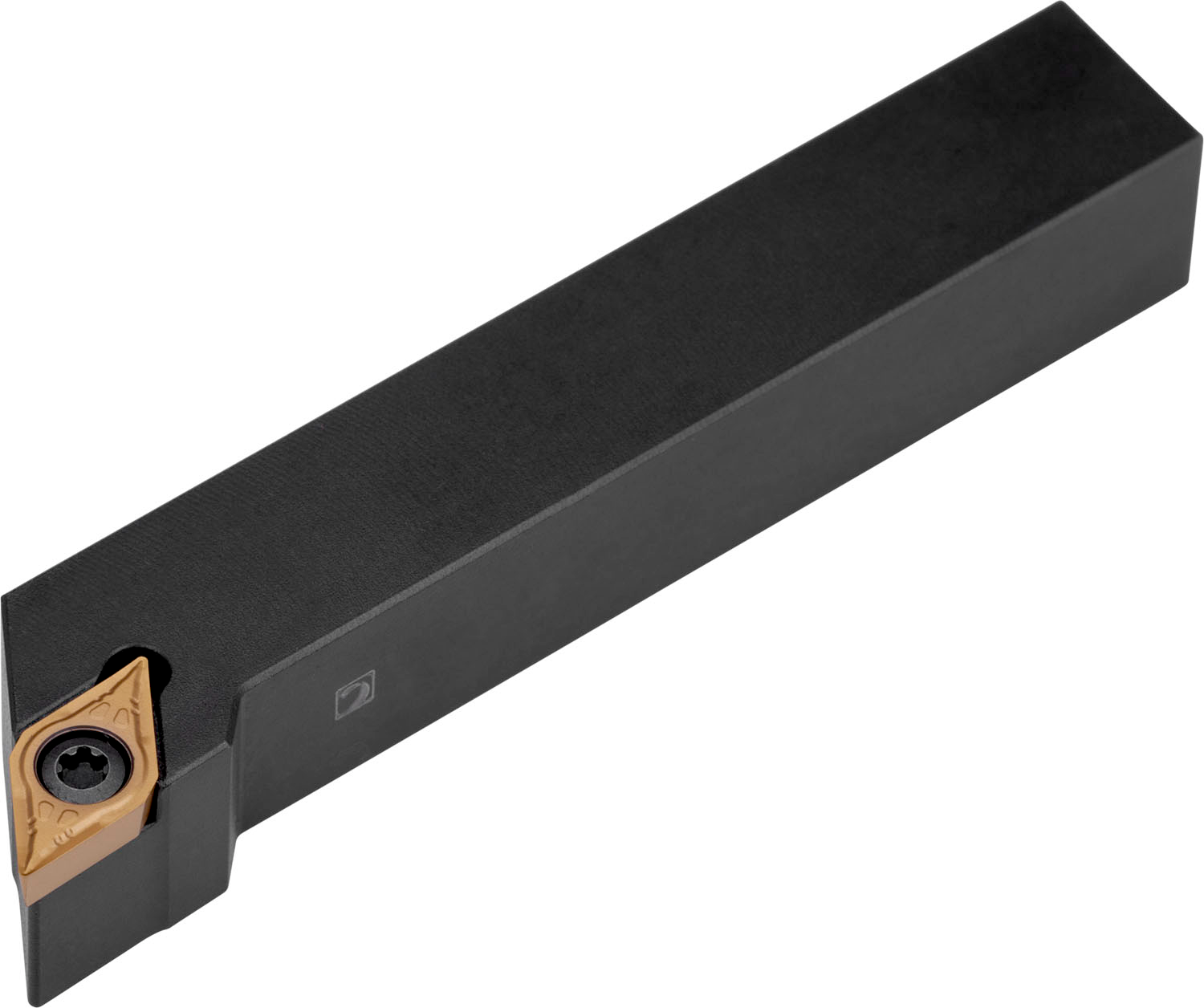

PRAMET SDJCR 2525 M 11-M-A Turning holders external

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Screw clamp turning tool for holding a 55° rhombus positive insert with an inscribed circle diameter of 9.525mm, 3.97mm thick (ISO designation DC.. 11T3.. ), right hand 93° side cutting with off-set shank, 25mm tool height x 25mm width x 150mm long for chamfering, taper turning, single and multi-directional copy turning and longitudinal turning with and without shoulder

Additional information

Weight 0.1859 kg
barcode
Additional Information

Description: Value
EAN number: 3603602919519
Product number (SAP): 84000789
Ordering code ANSI: SDJCR 2525 M 11-M-A
Gross weight – grams: 737.1
Shank height – millimeter (H): 25 mm
Shank width – millimeter (B): 25 mm
Functional height – millimeter (HF): 25 mm
Functional width – millimeter (WF): 32 mm
Functional length – millimeter (LF): 150 mm
Head length – millimeter (LH): 20 mm
Inclination angle (LAMS): 0
Orthogonal rake angle (GAMO): 0
Net weight – grams: 727.2
Insert size: 11
ISO: SDJCR2525M11-M-A

Brand

PRAMET
