PRAMET SDKT 1205PDFR-F:8215 Milling – other and drilling inserts clamped by screw

Product Code: SDKT 1205PDFR-F:8215

$32.75$29.77 Ex. GST

Product Code: SDKT 1205PDFR-F:8215 SKU SDKT 1205PDFR-F:8215 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

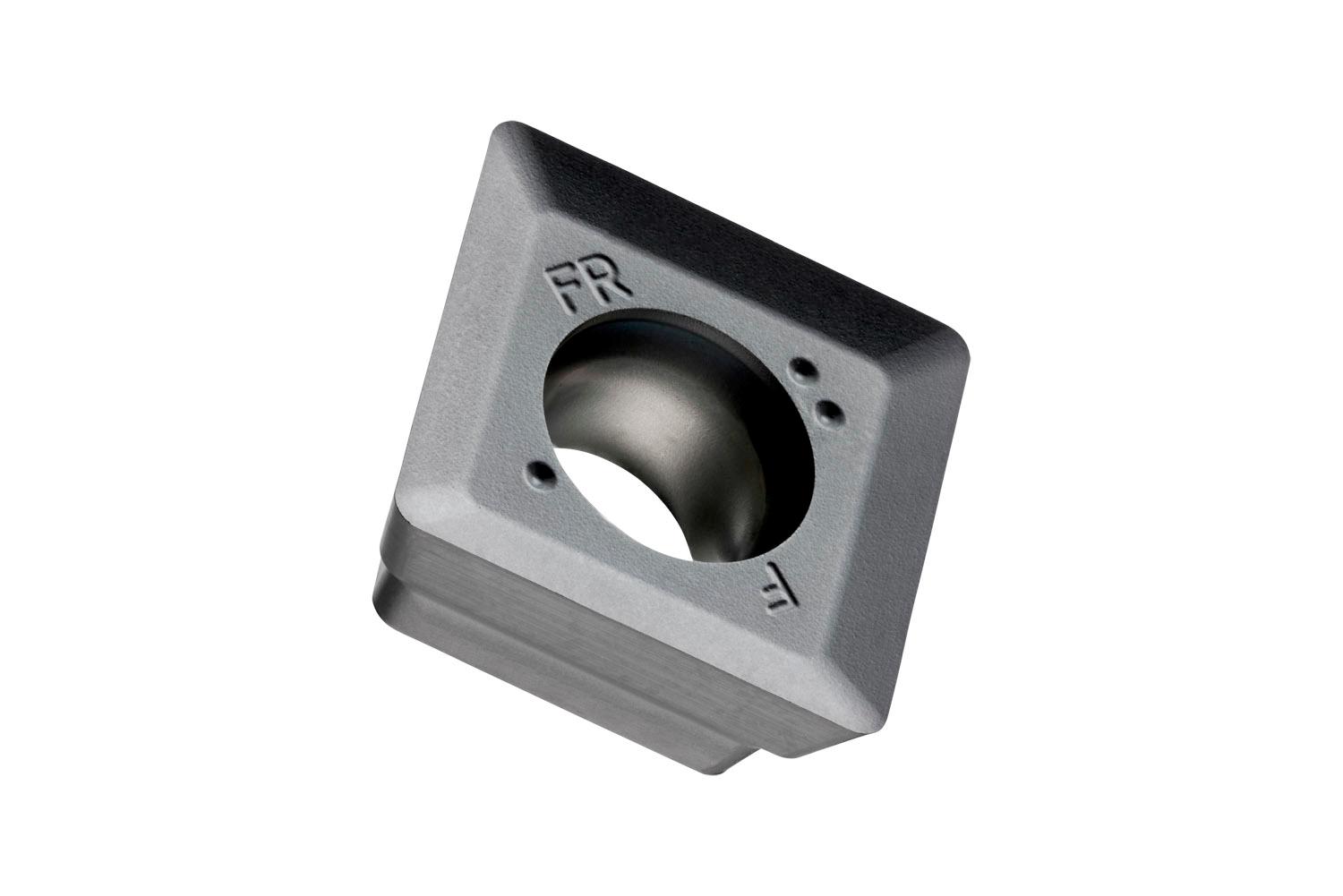

Single-sided milling insert SDKT 1205 with chip-breakers, square for a maximum depth of cut of 10.0mm, with 0.8mm corner radius, an indexing accuracy according to ISO-tolerance class-K and F geometry with sharp cutting edges, 8215 PVD coated fine grained WC-Co carbide within ISO-grade range P10 -P20 for machining of steel with copy face mills SOD05

Additional information

Weight 0.0318 kg
barcode
Additional Information

Description: Value
EAN number: 3603603288294
Product number (SAP): 80029430
Ordering code ANSI: SDKT 1205PDFR-F:8215
Gross weight – grams: 6.978
Inscribed circle diameter – millimeter (IC): 12.7 mm
Fixing hole diameter – millimeter (D1): 5.5 mm
Insert thickness – millimeter (S): 5.56 mm
Grade: 8215
Corner radius – millimeter (RE): 0.8 mm
Insert Clearance Code and Angle: D 15°
Insert size: 12
Insert Thickness: 05
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): F
Insert shape code (SC): S – square
ISO: SDKT1205PDFR-F:8215

Brand

PRAMET
