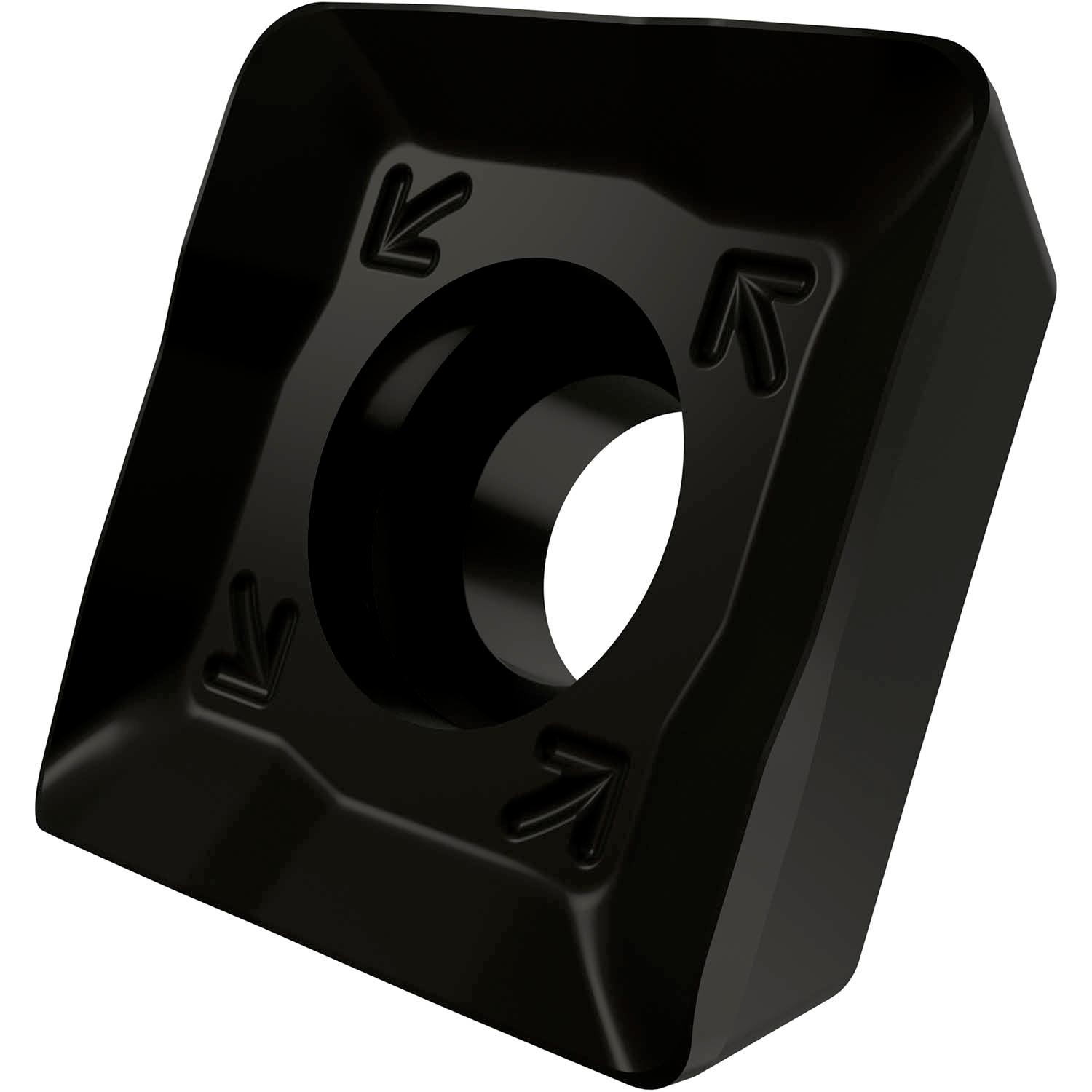

PRAMET SDMT 120508SR-M:M9325 Milling – other and drilling inserts clamped by screw

Product Code: SDMT 120508SR-M:M9325

$30.25$27.50 Ex. GST

Product Code: SDMT 120508SR-M:M9325 SKU SDMT 120508SR-M:M9325 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Single-sided milling insert SDMT 1205 with chip-breakers, square for a maximum depth of cut of 10.0mm, with 0.8mm corner radius, an indexing accuracy according to ISO-tolerance class-M and M geometry with rounded cutting edges and facet, M9325 MT-CVD coated WC-Co carbide within ISO-grade range P10 -P30 for machining of steel with shoulder mills SSD12

Additional information

Weight 0.0294 kg
barcode
Additional Information

Description: Value
EAN number: 3603602899286
Product number (SAP): 80016698
Ordering code ANSI: SDMT 120508SR-M:M9325
Gross weight – grams: 6.573
Inscribed circle diameter – millimeter (IC): 12.7 mm
Fixing hole diameter – millimeter (D1): 4.4 mm
Cutting edge length – millimeter (L): 12.7 mm
Insert thickness – millimeter (S): 5 mm
Grade: M9325
Corner radius – millimeter (RE): 0.8 mm
Insert Clearance Code and Angle: D 15°
Insert size: 12
Insert Thickness: 05
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): M
Insert shape code (SC): S – square
ISO: SDMT120508SR-M:M9325

Brand

PRAMET
