PRAMET SDMT 13T3AFSN-M:M6330 Milling – other and drilling inserts clamped by screw

Product Code: SDMT 13T3AFSN-M:M6330

$25.04$22.76 Ex. GST

Product Code: SDMT 13T3AFSN-M:M6330 SKU SDMT 13T3AFSN-M:M6330 Categories ,
PRAMET SDMT 13T3AFSN-M:M6330 Milling - other and drilling inserts clamped by screw

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

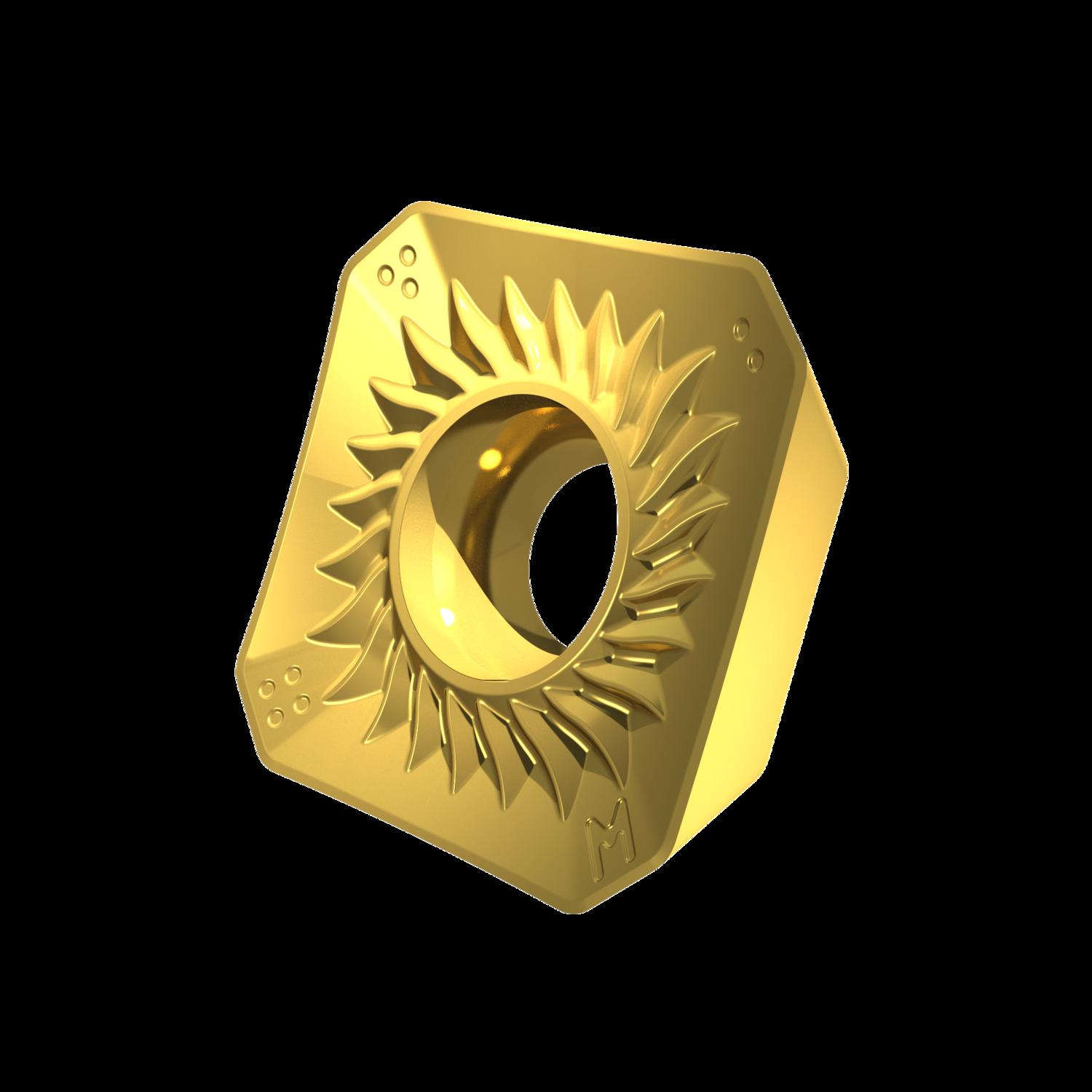

Single-sided milling insert SDMT 13T3 with chip-breakers, square for a maximum depth of cut of 6.4mm, with an indexing accuracy according to ISO-tolerance class-M and M geometry with rounded cutting edges and facet, M6330 PVD coated WC-Co carbide within ISO-grade ranges P20 -P35/M20 -M35 and S20 -S30 for machining of steel, stainless-steel and superalloy with face mills SSD13F

Additional information

Weight 0.0083 kg
barcode

3603603977099
Additional Information

Description: Value
EAN number: 3603603977099
Product number (SAP): 80034480
Ordering code ANSI: SDMT 13T3AFSN-M:M6330
Gross weight – grams: 8.308
Inscribed circle diameter – millimeter (IC): 13.385 mm
Fixing hole diameter – millimeter (D1): 4.4 mm
Insert thickness – millimeter (S): 3.97 mm
Grade: M6330
Insert Clearance Code and Angle: D 15°
Insert Type: T
m-dimension – millimeter (M): 1.5 mm
Chipbreaker manufacturer's designation (CBMD): M
Insert shape code (SC): S – square
ISO: SDMT13T3AFSN-M:M6330
