PRAMET SDMT 13T3AFSN-M:M9325 Milling – other and drilling inserts clamped by screw

Product Code: SDMT 13T3AFSN-M:M9325

$25.04$22.76 Ex. GST

Product Code: SDMT 13T3AFSN-M:M9325 SKU SDMT 13T3AFSN-M:M9325 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

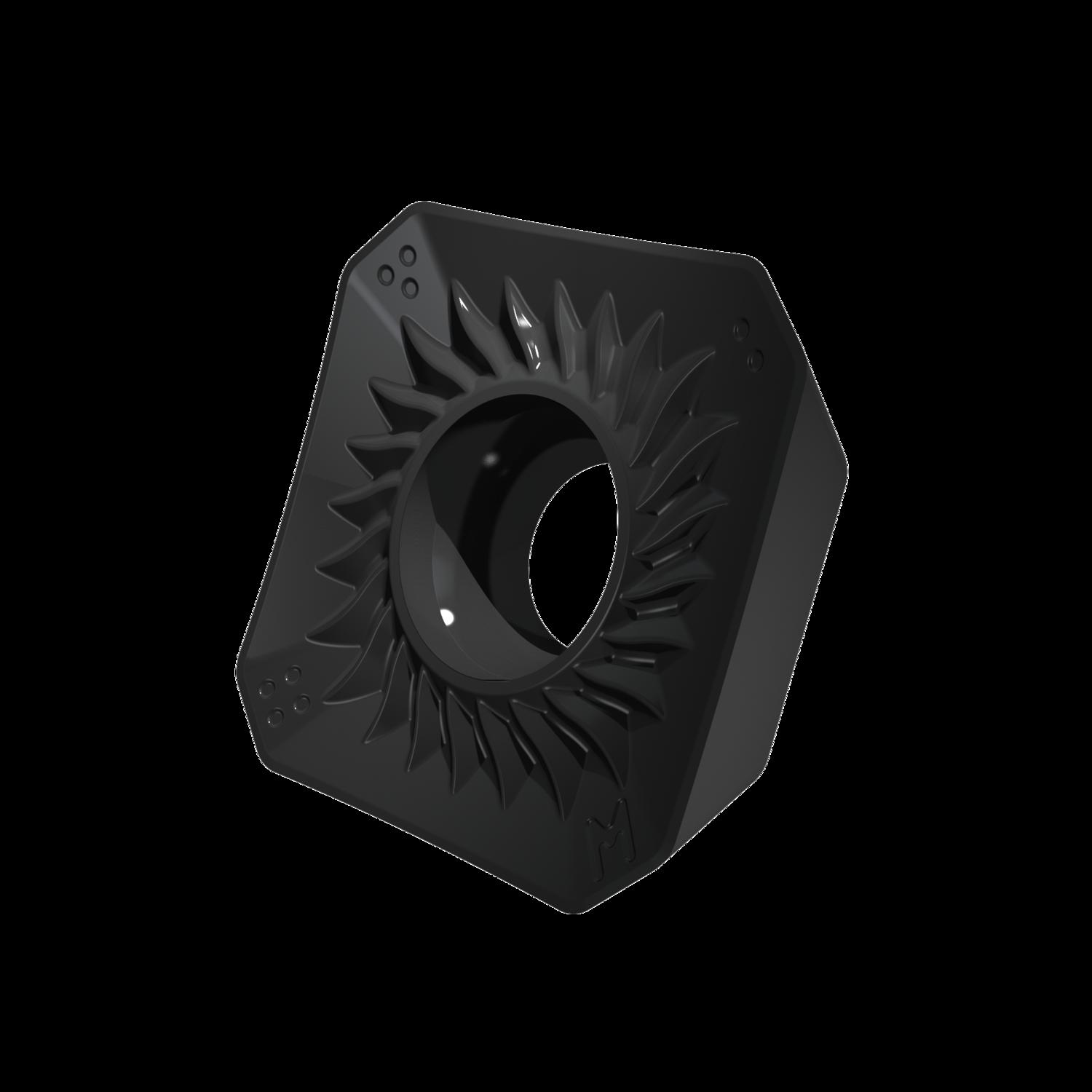

Single-sided milling insert SDMT 13T3 with chip-breakers, square for a maximum depth of cut of 6.4mm, with an indexing accuracy according to ISO-tolerance class-M and M geometry with rounded cutting edges and facet, M9325 MT-CVD coated WC-Co carbide within ISO-grade ranges P10 -P30 and K10 -K30 for machining of steel and cast-iron with face mills SSD13F

Additional information

Weight 0.0092 kg
barcode

3603603977129

Additional Information

Description: Value
EAN number: 3603603977129
Product number (SAP): 80034483
Ordering code ANSI: SDMT 13T3AFSN-M:M9325
Gross weight – grams: 9.207
Inscribed circle diameter – millimeter (IC): 13.385 mm
Fixing hole diameter – millimeter (D1): 4.4 mm
Insert thickness – millimeter (S): 3.97 mm
Grade: M9325
Insert Clearance Code and Angle: D 15°
Insert Type: T
m-dimension – millimeter (M): 1.5 mm
Chipbreaker manufacturer's designation (CBMD): M
Insert shape code (SC): S – square
ISO: SDMT13T3AFSN-M:M9325
