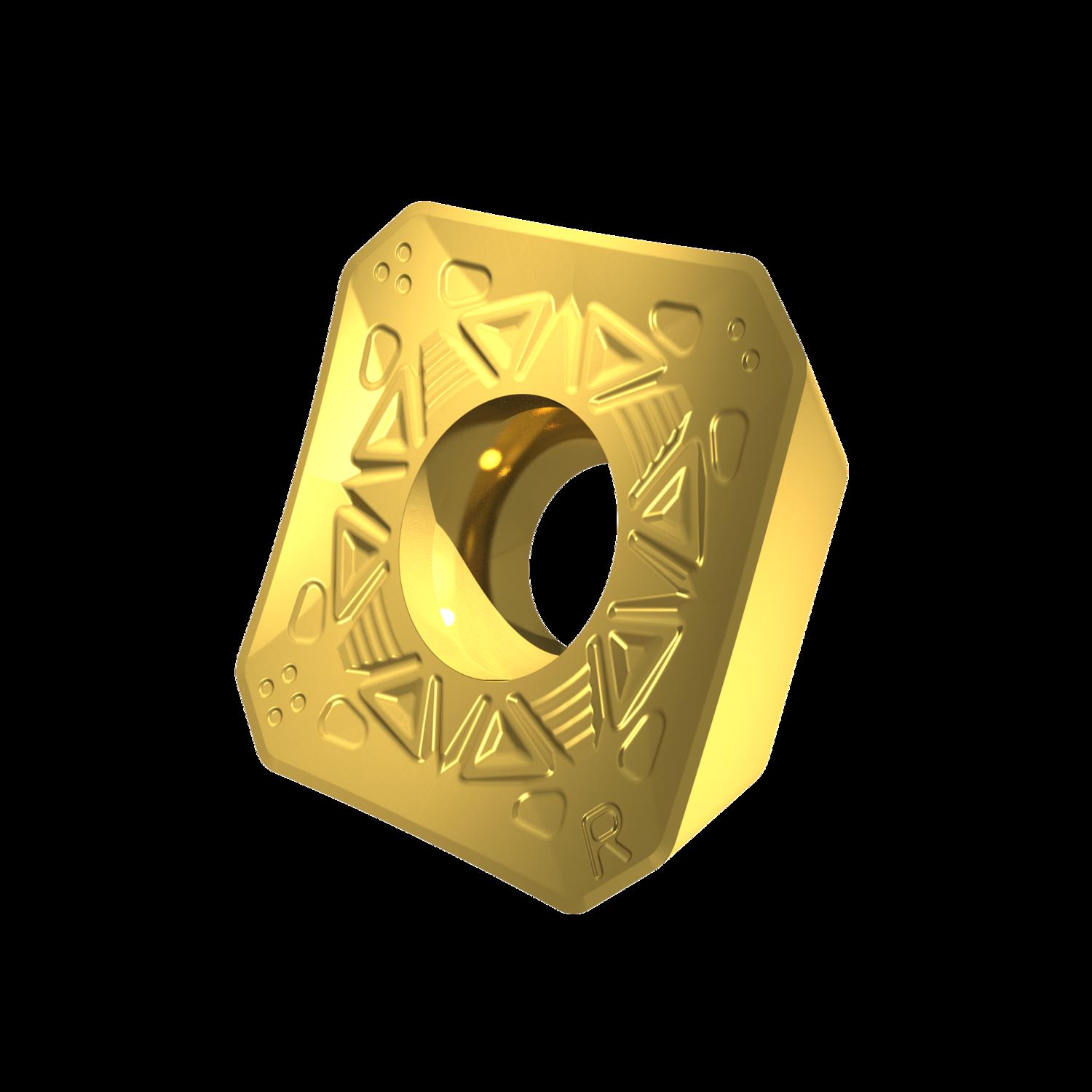

PRAMET SDMT 13T3AFSN-R:M8330 Milling – other and drilling inserts clamped by screw

Product Code: SDMT 13T3AFSN-R:M8330

$25.04$22.76 Ex. GST

Product Code: SDMT 13T3AFSN-R:M8330 SKU SDMT 13T3AFSN-R:M8330 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Single-sided milling insert SDMT 13T3 with chip-breakers, square for a maximum depth of cut of 6.4mm, with an indexing accuracy according to ISO-tolerance class-M and R geometry with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20 -P40 and K20 -K40 for machining of steel and cast-iron with face mills SSD13F

Additional information

Weight 0.0085 kg
barcode

3603603977167

Additional Information

Description: Value
EAN number: 3603603977167
Product number (SAP): 80034487
Ordering code ANSI: SDMT 13T3AFSN-R:M8330
Gross weight – grams: 8.509
Inscribed circle diameter – millimeter (IC): 13.385 mm
Fixing hole diameter – millimeter (D1): 4.4 mm
Insert thickness – millimeter (S): 3.97 mm
Grade: M8330
Insert Clearance Code and Angle: D 15°
Insert Type: T
m-dimension – millimeter (M): 1.5 mm
Chipbreaker manufacturer's designation (CBMD): R
Insert shape code (SC): S – square
ISO: SDMT13T3AFSN-R:M8330
