PRAMET SDNCN 1212 F 07 Turning holders external

Product Code: SDNCN 1212 F 07

$162.02$147.29 Ex. GST

Product Code: SDNCN 1212 F 07 SKU SDNCN 1212 F 07 Categories , ,
PRAMET SDNCN 1212 F 07 Turning holders external

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

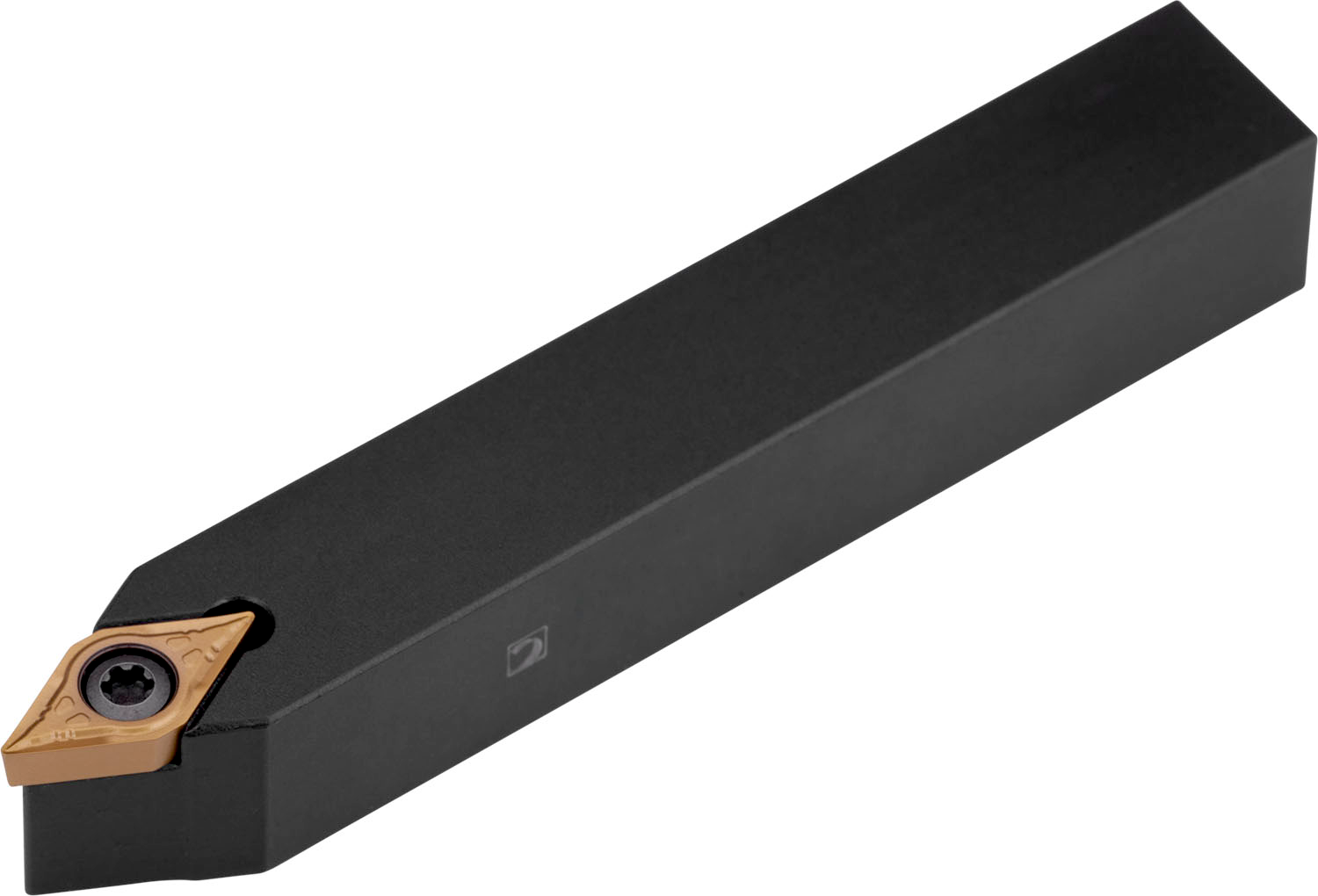

Screw clamp turning tool for holding a 55° rhombus positive insert with an inscribed circle diameter of 6.35mm, 2.38mm thick (ISO designation DC.. 0702.. ), neutral hand 62°30′ side cutting with straight shank, 12mm tool height x 12mm width x 80mm long for chamfering, taper turning, single and multi-directional copy turning and longitudinal turning without shoulder

Additional information

Weight 0.1573 kg
barcode
Additional Information

Description: Value
EAN number: 3603602922274
Product number (SAP): 84001244
Ordering code ANSI: SDNCN 1212 F 07
Gross weight – grams: 106
Shank height – millimeter (H): 12 mm
Shank width – millimeter (B): 12 mm
Functional height – millimeter (HF): 12 mm
Functional width – millimeter (WF): 6 mm
Functional length – millimeter (LF): 80 mm
Inclination angle (LAMS): 0
Orthogonal rake angle (GAMO): 0
Net weight – grams: 105.3
Insert size: 07
ISO: SDNCN1212F07

Brand

PRAMET
