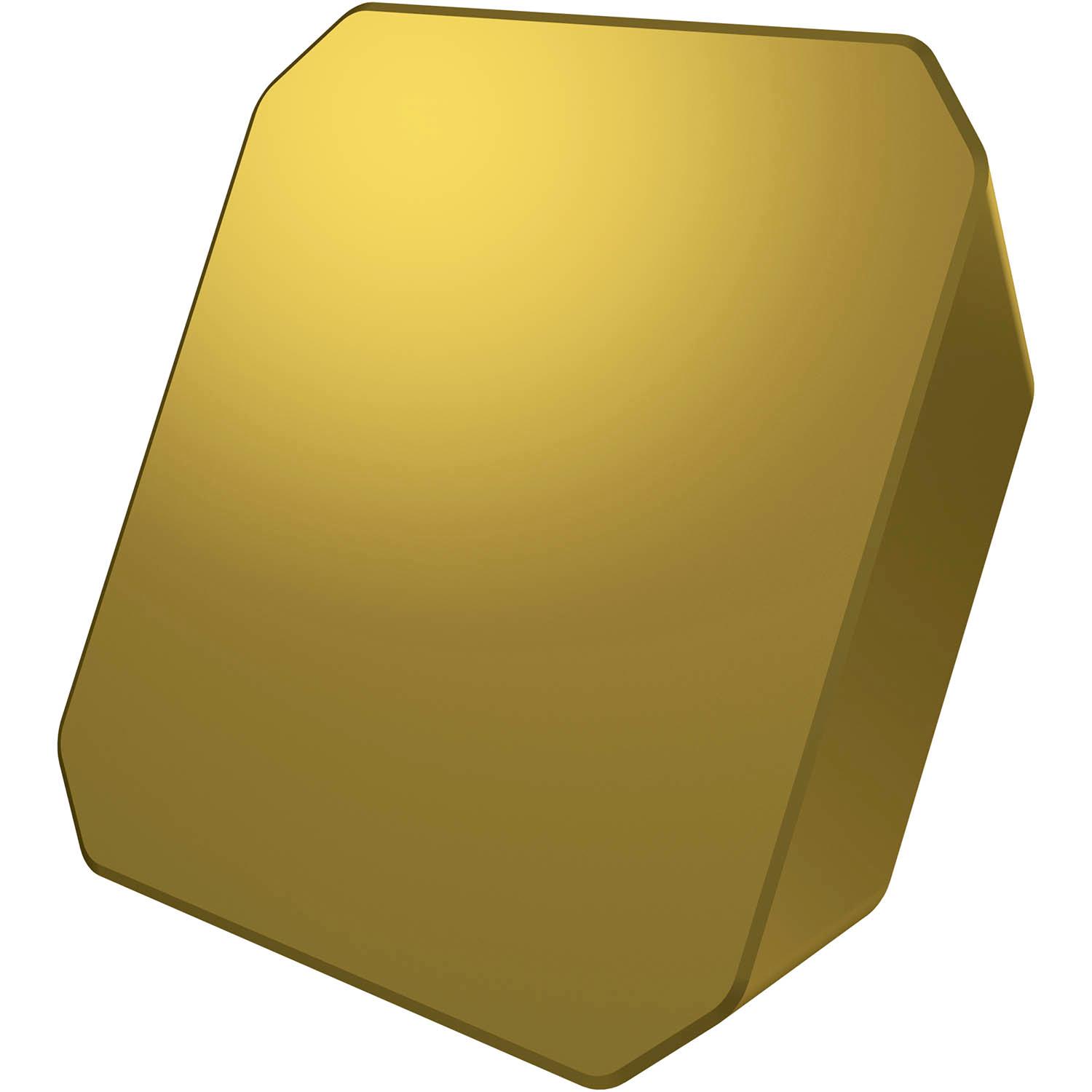

PRAMET SEEN 1504AFSN:M8340 Milling inserts clamped by wedge

Product Code: SEEN 1504AFSN:M8340

$36.60$33.27 Ex. GST

Product Code: SEEN 1504AFSN:M8340 SKU SEEN 1504AFSN:M8340 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Single-sided milling insert SEEN 1504 with a plane rake surface, square for a maximum depth of cut of 9.0mm, with an indexing accuracy according to ISO-tolerance class-E with rounded cutting edges and facet, M8340 PVD coated fine grained WC-Co carbide within ISO-grade range P25 -P50 for machining of steel

Additional information

Weight 0.0355 kg
barcode
Additional Information

Description: Value
EAN number: 3603602993885
Product number (SAP): 80025048
Ordering code ANSI: SEEN 53AFSN:M8340
Gross weight – grams: 13.162
Inscribed circle diameter – millimeter (IC): 15.875 mm
m-dimension – millimeter (M): 2 mm
Insert thickness – millimeter (S): 4.76 mm
Grade: M8340
Insert Clearance Code and Angle: E 20°
Insert size: 15
Insert Thickness: 04
Insert Type: N
Chipbreaker manufacturer's designation (CBMD): No chipbreaker
Insert shape code (SC): S – square
ISO: SEEN1504AFSN:M8340

Brand

PRAMET
