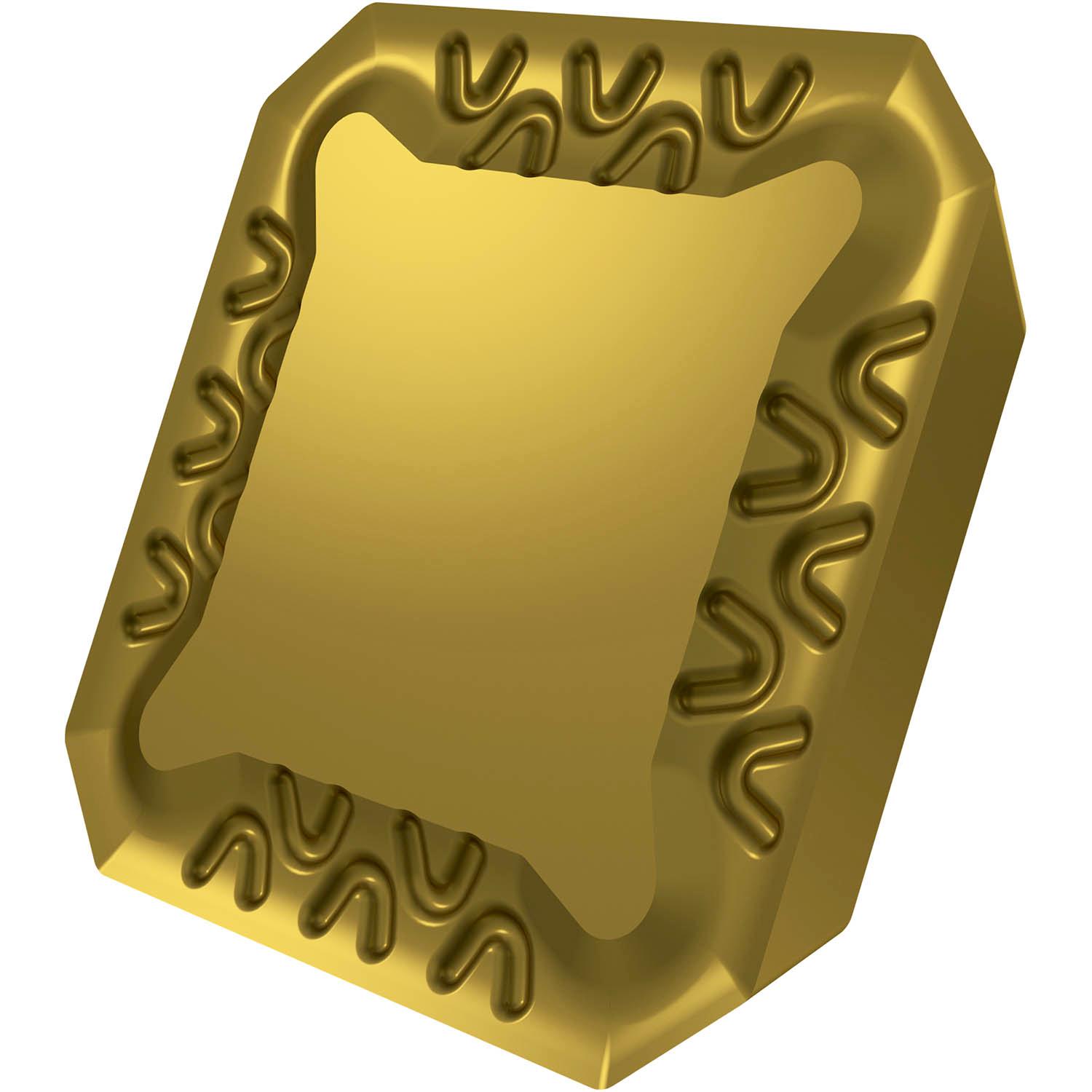

PRAMET SEER 1203AFEN:M8330 Milling inserts clamped by wedge

Product Code: SEER 1203AFEN:M8330

$26.06$23.69 Ex. GST

Product Code: SEER 1203AFEN:M8330 SKU SEER 1203AFEN:M8330 Categories , ,
PRAMET SEER 1203AFEN:M8330 Milling inserts clamped by wedge

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Single-sided milling insert SEER 1203 with chip-breakers, square for a maximum depth of cut of 6.5mm, with an indexing accuracy according to ISO-tolerance class-E with rounded cutting edges, M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20 -P40 and M20 -M35 for machining of steel and stainless-steel

Additional information

Weight 0.0253 kg
barcode
Additional Information

Description: Value
EAN number: 3603603389069
Product number (SAP): 80030172
Ordering code ANSI: SEER 42AFEN:M8330
Gross weight – grams: 6.92
Inscribed circle diameter – millimeter (IC): 12.7 mm
m-dimension – millimeter (M): 1.6 mm
Insert thickness – millimeter (S): 3.18 mm
Grade: M8330
Insert Clearance Code and Angle: E 20°
Insert size: 12
Insert Thickness: 03
Insert Type: R
Chipbreaker manufacturer's designation (CBMD): With chipbreaker -no designation
Insert shape code (SC): S – square
ISO: SEER1203AFEN:M8330

Brand

PRAMET
