PRAMET SEER 1203AFEN:M8340 Milling inserts clamped by wedge

Product Code: SEER 1203AFEN:M8340

$26.06$23.69 Ex. GST

Product Code: SEER 1203AFEN:M8340 SKU SEER 1203AFEN:M8340 Categories , ,

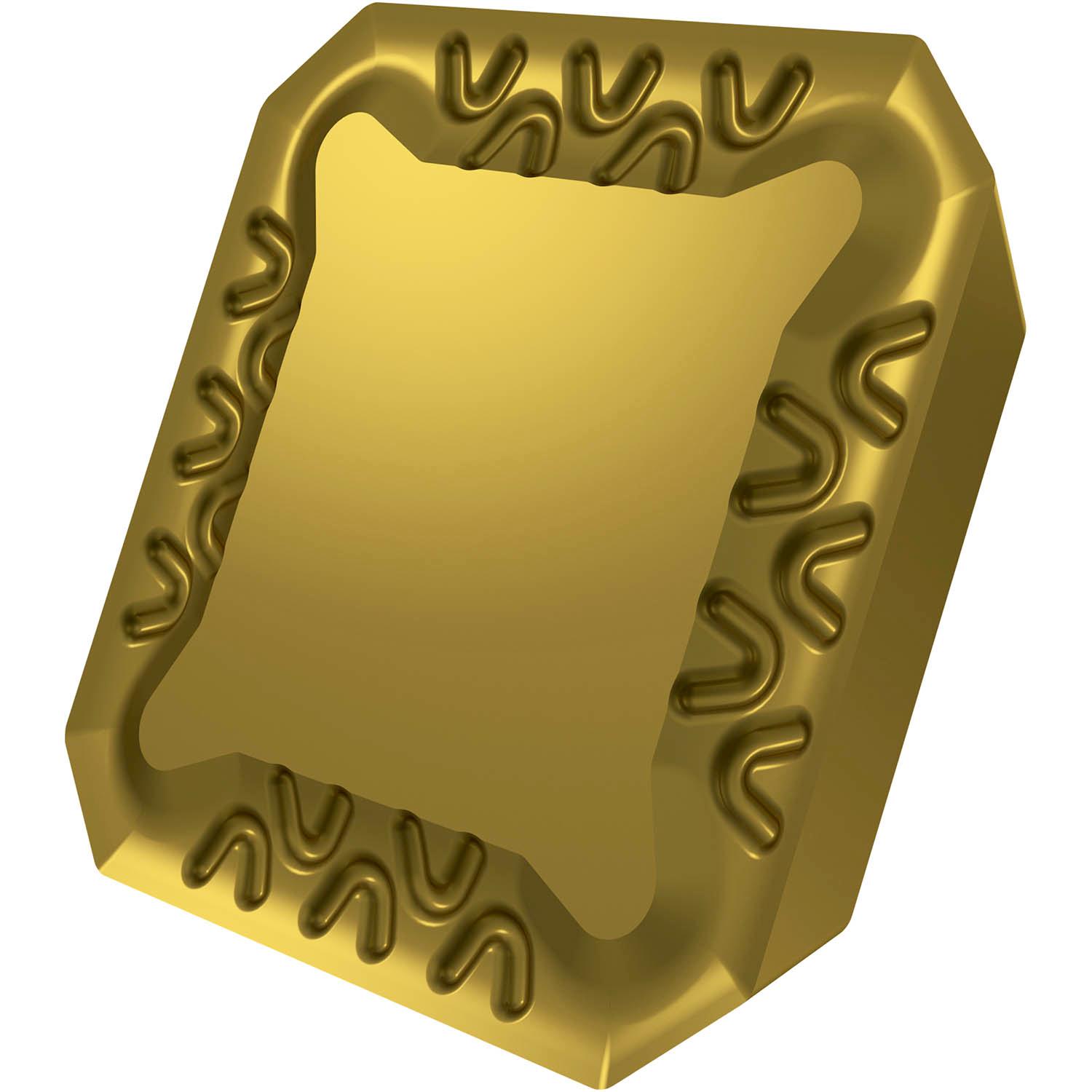

PRAMET SEER 1203AFEN:M8340 Milling inserts clamped by wedge

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Single-sided milling insert SEER 1203 with chip-breakers, square for a maximum depth of cut of 6.5mm, with an indexing accuracy according to ISO-tolerance class-E with rounded cutting edges, M8340 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25 -P50 and M20 -M40 for machining of steel and stainless-steel

Additional information

Weight 0.0253 kg
barcode
Additional Information

Description: Value
EAN number: 3603603081338
Product number (SAP): 80026704
Ordering code ANSI: SEER 42AFEN:M8340
Gross weight – grams: 5.638
Inscribed circle diameter – millimeter (IC): 12.7 mm
m-dimension – millimeter (M): 1.6 mm
Insert thickness – millimeter (S): 3.18 mm
Grade: M8340
Insert Clearance Code and Angle: E 20°
Insert size: 12
Insert Thickness: 03
Insert Type: R
Chipbreaker manufacturer's designation (CBMD): With chipbreaker -no designation
Insert shape code (SC): S – square
ISO: SEER1203AFEN:M8340

Brand

PRAMET
