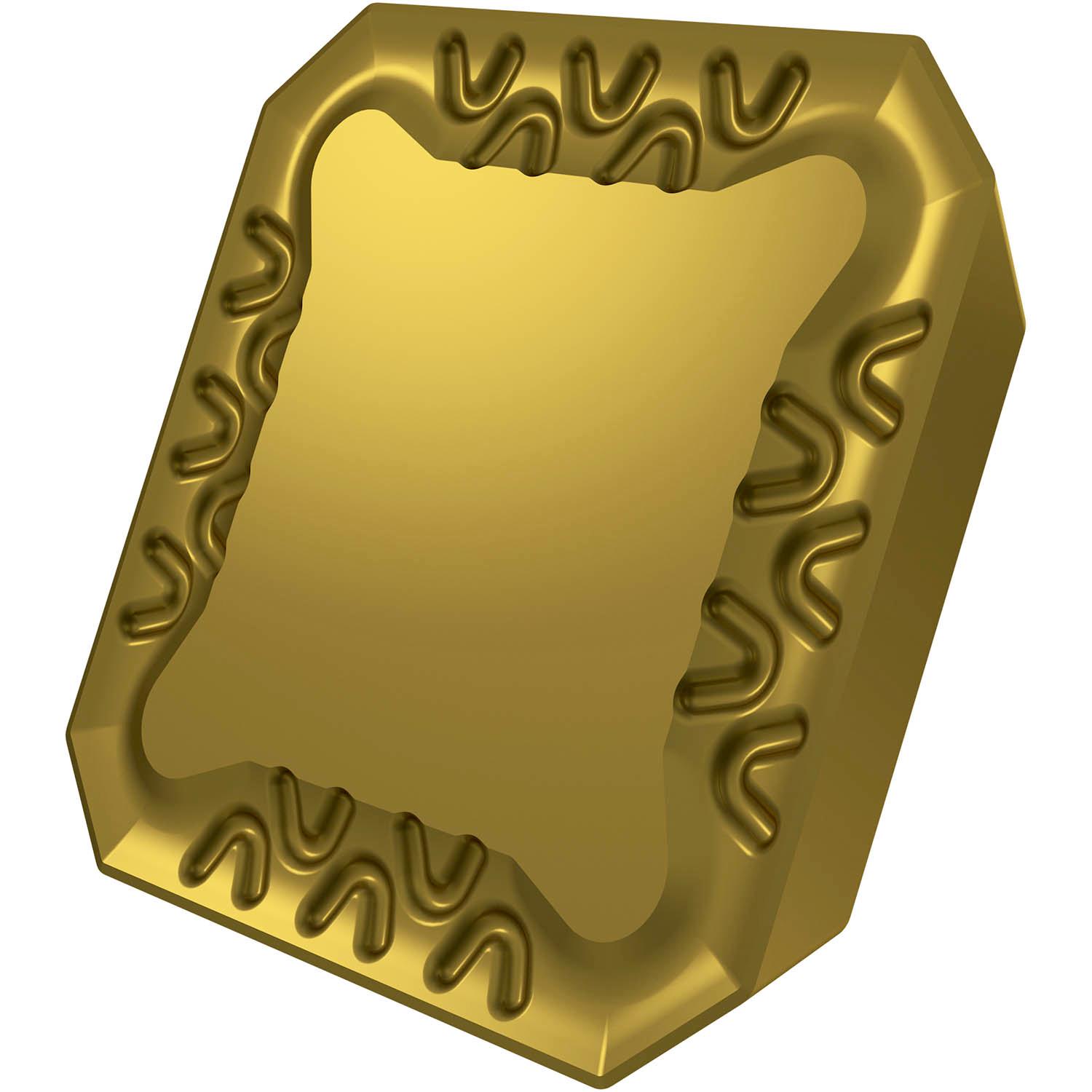

PRAMET SEER 1204AFSN:M8330 Milling inserts clamped by wedge

Product Code: SEER 1204AFSN:M8330

$29.80$27.09 Ex. GST

Product Code: SEER 1204AFSN:M8330 SKU SEER 1204AFSN:M8330 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Single-sided milling insert SEER 1204 with chip-breakers, square for a maximum depth of cut of 6.5mm, with an indexing accuracy according to ISO-tolerance class-E with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20 -P40 and K20 -K40 for machining of steel and cast-iron

Additional information

Weight 0.0289 kg
barcode
Additional Information

Description: Value
EAN number: 3603603389090
Product number (SAP): 80030175
Ordering code ANSI: SEER 43AFSN:M8330
Gross weight – grams: 7.957
Inscribed circle diameter – millimeter (IC): 12.7 mm
m-dimension – millimeter (M): 1.6 mm
Insert thickness – millimeter (S): 4.76 mm
Grade: M8330
Insert Clearance Code and Angle: E 20°
Insert size: 12
Insert Thickness: 04
Insert Type: R
Chipbreaker manufacturer's designation (CBMD): With chipbreaker -no designation
Insert shape code (SC): S – square
ISO: SEER1204AFSN:M8330

Brand

PRAMET
