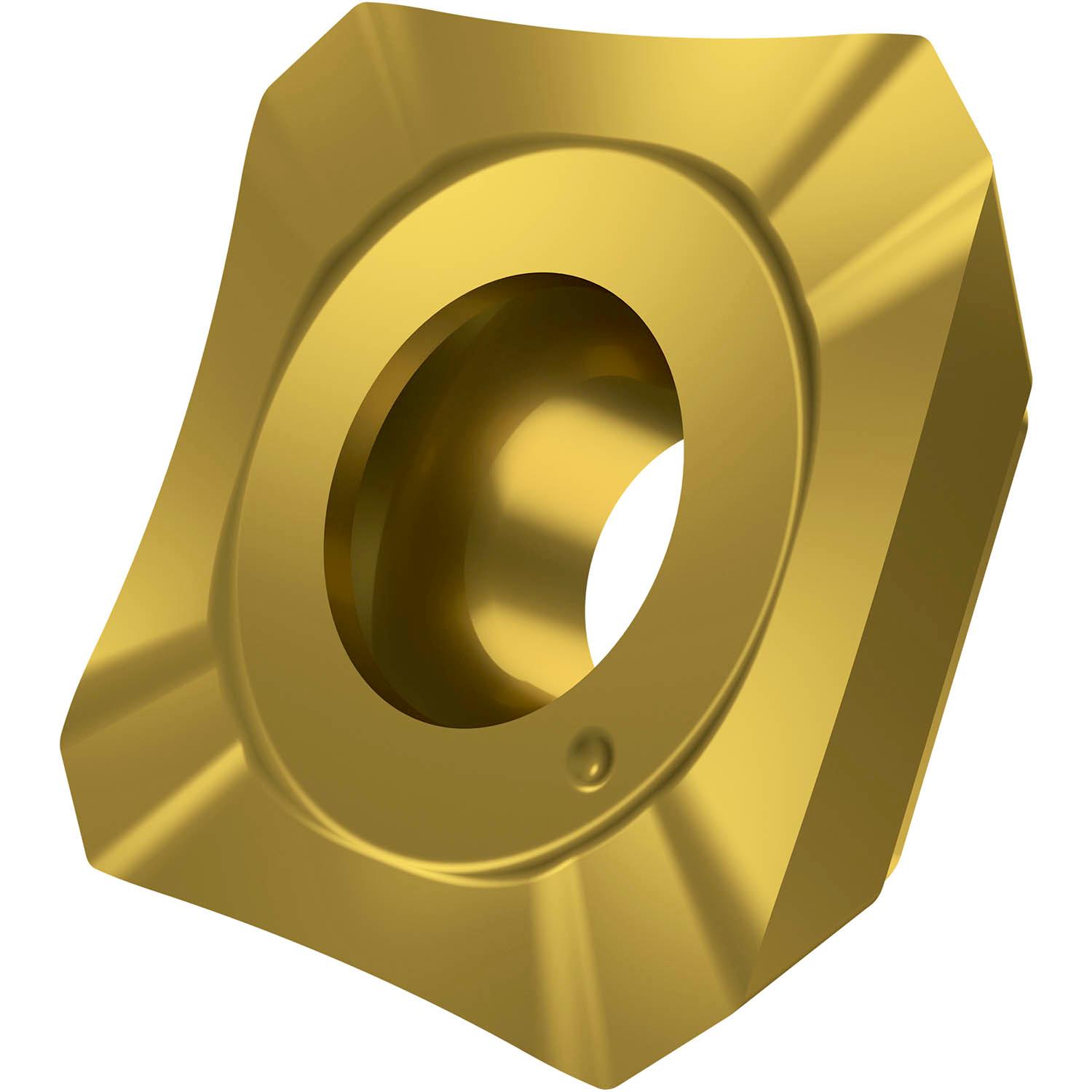

PRAMET SEET 09T3AFEN:M8330 Milling – other and drilling inserts clamped by screw

Product Code: SEET 09T3AFEN:M8330

$24.82$22.56 Ex. GST

Product Code: SEET 09T3AFEN:M8330 SKU SEET 09T3AFEN:M8330 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Single-sided milling insert SEET 09T3 with chip-breakers, square for a maximum depth of cut of 4.5mm, with an indexing accuracy according to ISO-tolerance class-E with rounded cutting edges, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range P20 -P40 for machining of steel with face mills SSE09

Additional information

Weight 0.0241 kg
barcode
Additional Information

Description: Value
EAN number: 3603603389120
Product number (SAP): 80030178
Ordering code ANSI: SEET 09T3AFEN:M8330
Gross weight – grams: 2.724
Inscribed circle diameter – millimeter (IC): 9.525 mm
Fixing hole diameter – millimeter (D1): 3.5 mm
m-dimension – millimeter (M): 1.21 mm
Insert thickness – millimeter (S): 3.97 mm
Grade: M8330
Insert Clearance Code and Angle: E 20°
Insert size: 09
Insert Thickness: T3
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): With chipbreaker -no designation
Insert shape code (SC): S – square
ISO: SEET09T3AFEN:M8330

Brand

PRAMET
