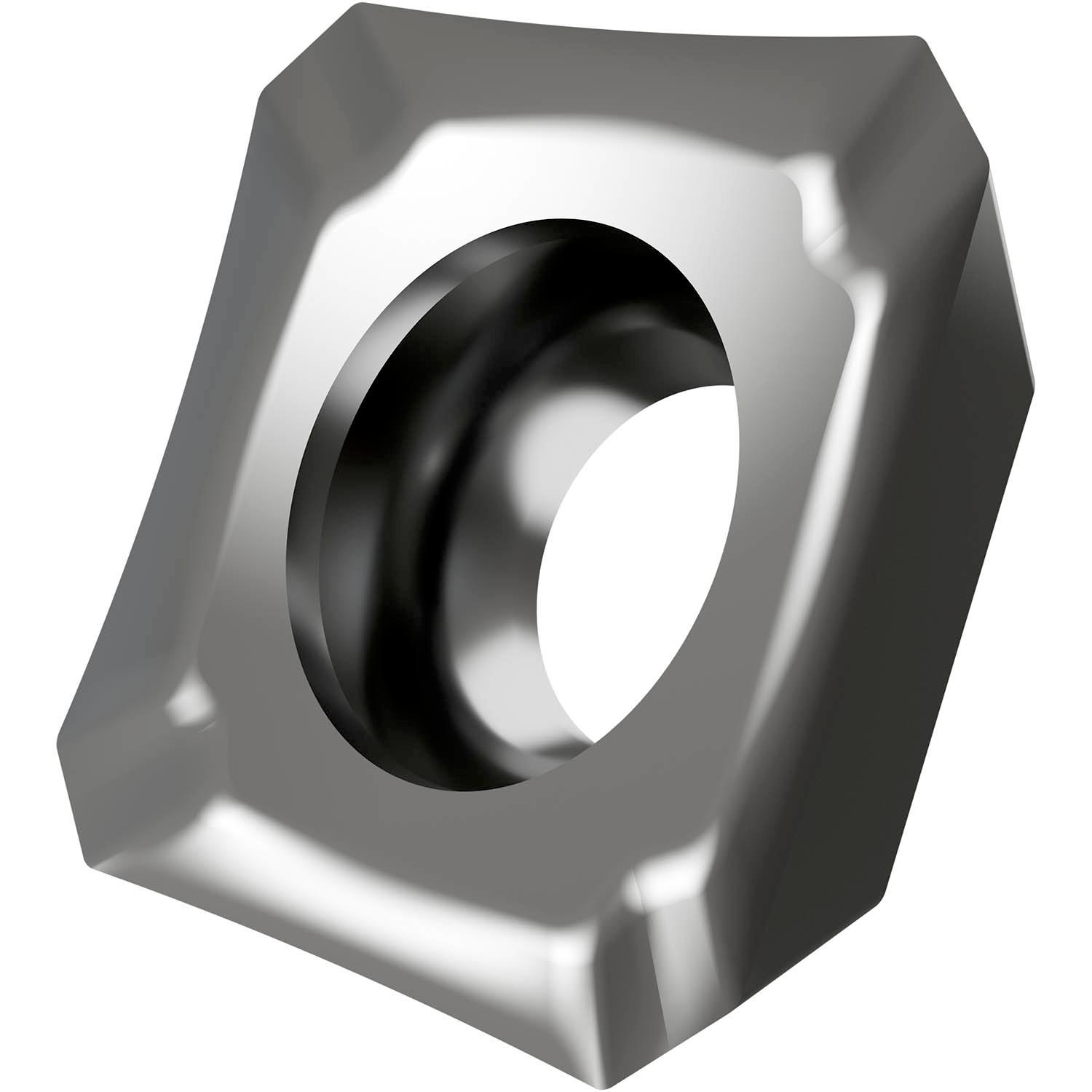

PRAMET SEET 1204AFFN-FA:HF7 Milling inserts – geometry FA

Product Code: SEET 1204AFFN-FA:HF7

$36.60$33.27 Ex. GST

Product Code: SEET 1204AFFN-FA:HF7 SKU SEET 1204AFFN-FA:HF7 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Single-sided milling insert SEET 1204 with chip-breakers, square for a maximum depth of cut of 4.5mm, with an indexing accuracy according to ISO-tolerance class-E and FA geometry with sharp cutting edges, HF7 uncoated fine grained WC-Co carbide within ISO-grade range N10 -N25 for machining of non-ferrous metal

Additional information

Weight 0.0355 kg
barcode
Additional Information

Description: Value
EAN number: 3603602872043
Product number (SAP): 80002593
Ordering code ANSI: SEET 1204AFFN-FA:HF7
Gross weight – grams: 5.223
Inscribed circle diameter – millimeter (IC): 12.7 mm
Fixing hole diameter – millimeter (D1): 5.5 mm
m-dimension – millimeter (M): 1.6 mm
Insert thickness – millimeter (S): 4.76 mm
Grade: HF7
Insert Clearance Code and Angle: E 20°
Insert size: 12
Insert Thickness: 04
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): FA
Insert shape code (SC): S – square
ISO: SEET1204AFFN-FA:HF7

Brand

PRAMET
