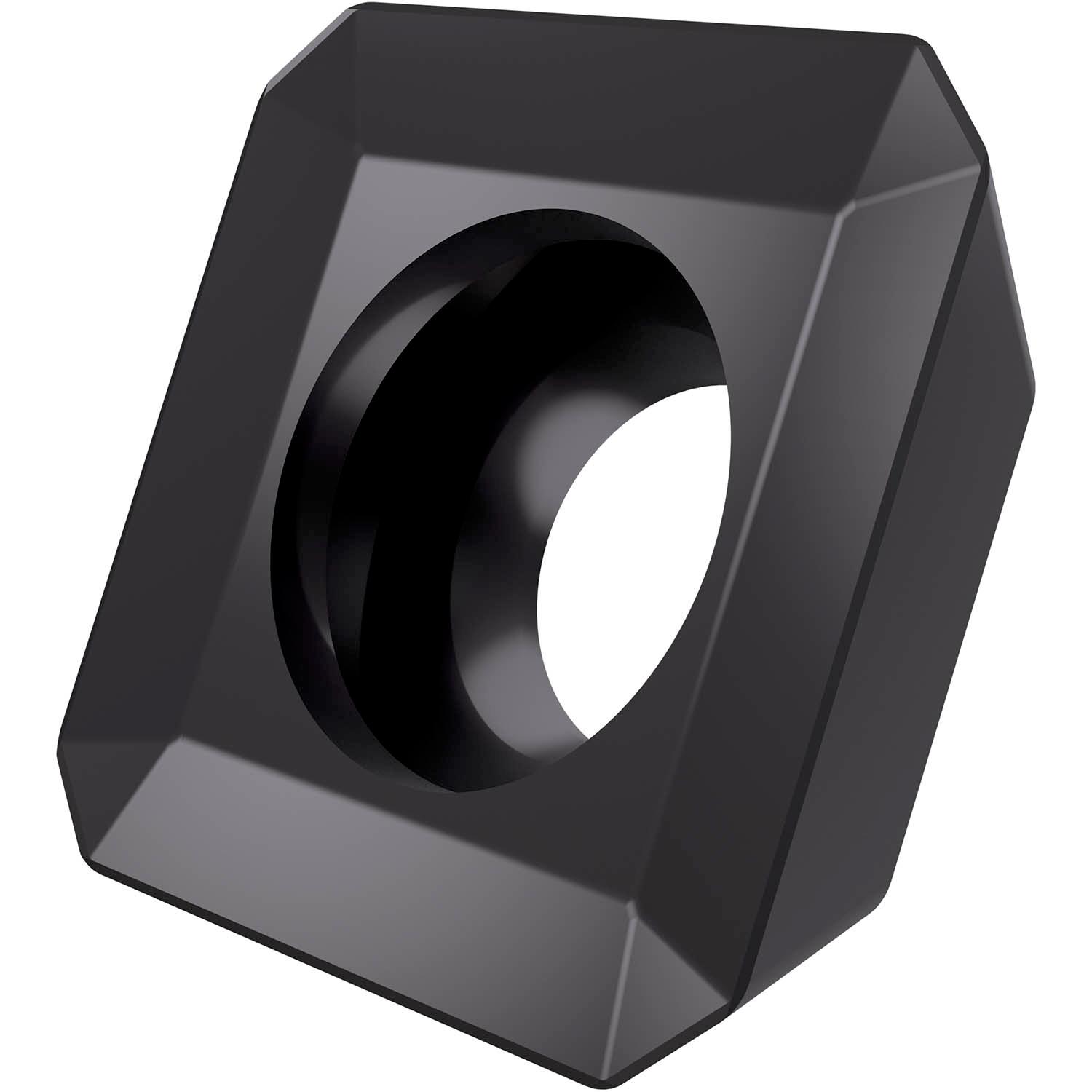

PRAMET SEET 1204AFSN:8215 Milling – other and drilling inserts clamped by screw

Description: Value
EAN number: 3603602887733
Product number (SAP): 80014608
Ordering code ANSI: SEET 1204AFSN:8215
Gross weight – grams: 5.605
Inscribed circle diameter – millimeter (IC): 12.7 mm
Fixing hole diameter – millimeter (D1): 5.5 mm
m-dimension – millimeter (M): 1.6 mm
Insert thickness – millimeter (S): 4.76 mm
Grade: 8215
Insert Clearance Code and Angle: E 20°
Insert size: 12
Insert Thickness: 04
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): With chipbreaker -no designation
Insert shape code (SC): S – square
ISO: SEET1204AFSN:8215
