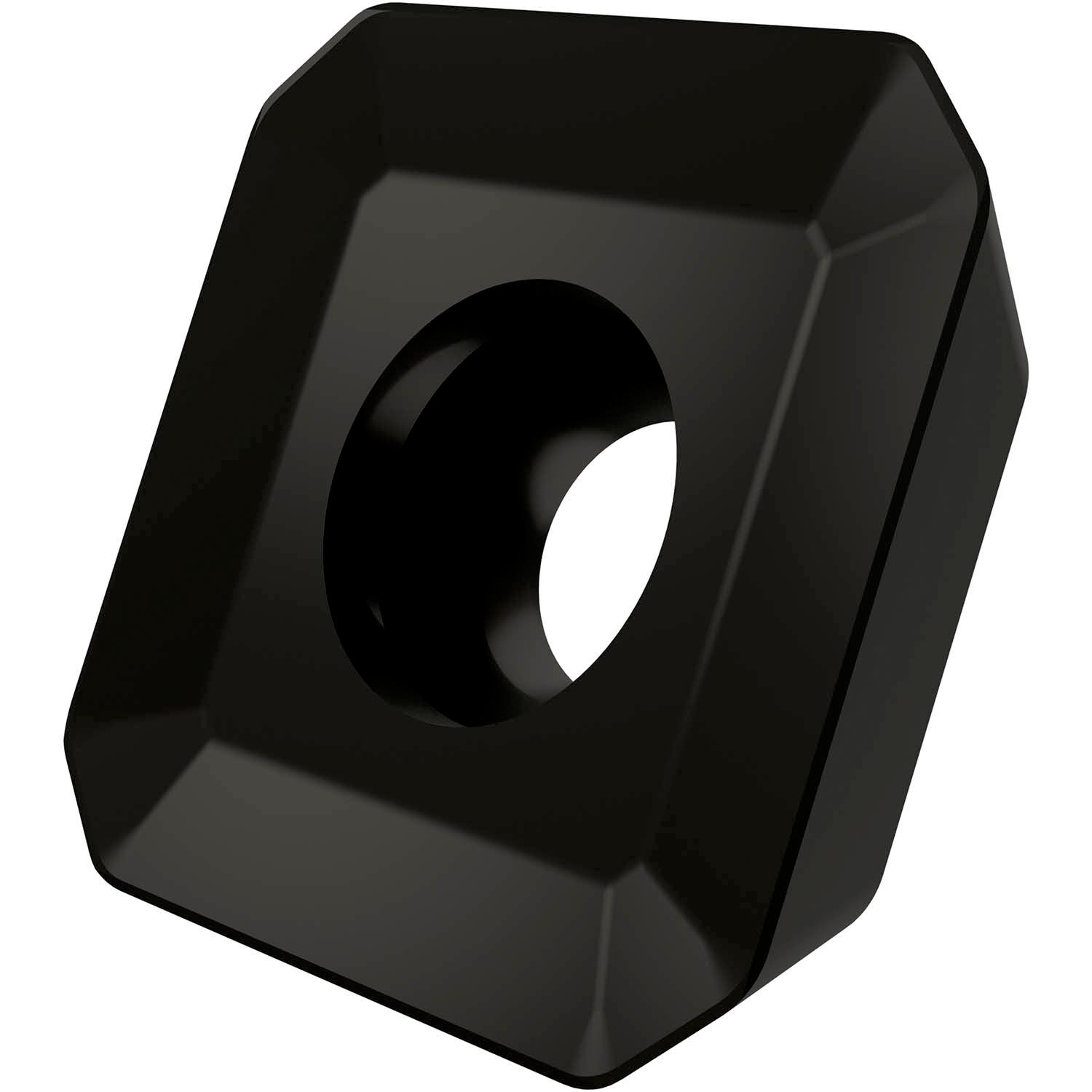

PRAMET SEET 12T3M-PM:M9325 Milling – other and drilling inserts clamped by screw

Product Code: SEET 12T3M-PM:M9325

$28.22$25.65 Ex. GST

Product Code: SEET 12T3M-PM:M9325 SKU SEET 12T3M-PM:M9325 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Single-sided milling insert SEET 12T3 with chip-breakers, square for a maximum depth of cut of 6.5mm, with an indexing accuracy according to ISO-tolerance class-E and PM geometry with rounded cutting edges and double facet, M9325 MT-CVD coated WC-Co carbide within ISO-grade ranges P10 -P30 and K10 -K30 for machining of steel and cast-iron

Additional information

Weight 0.0274 kg
barcode
Additional Information

Description: Value
EAN number: 3603602899347
Product number (SAP): 80016704
Ordering code ANSI: SEET 12T3M-PM:M9325
Gross weight – grams: 6.208
Inscribed circle diameter – millimeter (IC): 13.4 mm
Fixing hole diameter – millimeter (D1): 4.2 mm
m-dimension – millimeter (M): 1.5 mm
Insert thickness – millimeter (S): 3.97 mm
Grade: M9325
Insert Clearance Code and Angle: E 20°
Insert size: 12
Insert Thickness: T3
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): PM
Insert shape code (SC): S – square
ISO: SEET12T3M-PM:M9325

Brand

PRAMET
