PRAMET SEL 2020 K 16 Threading turning holders internal and external

Product Code: SEL 2020 K 16

$244.73$222.48 Ex. GST

Product Code: SEL 2020 K 16 SKU SEL 2020 K 16 Categories , ,

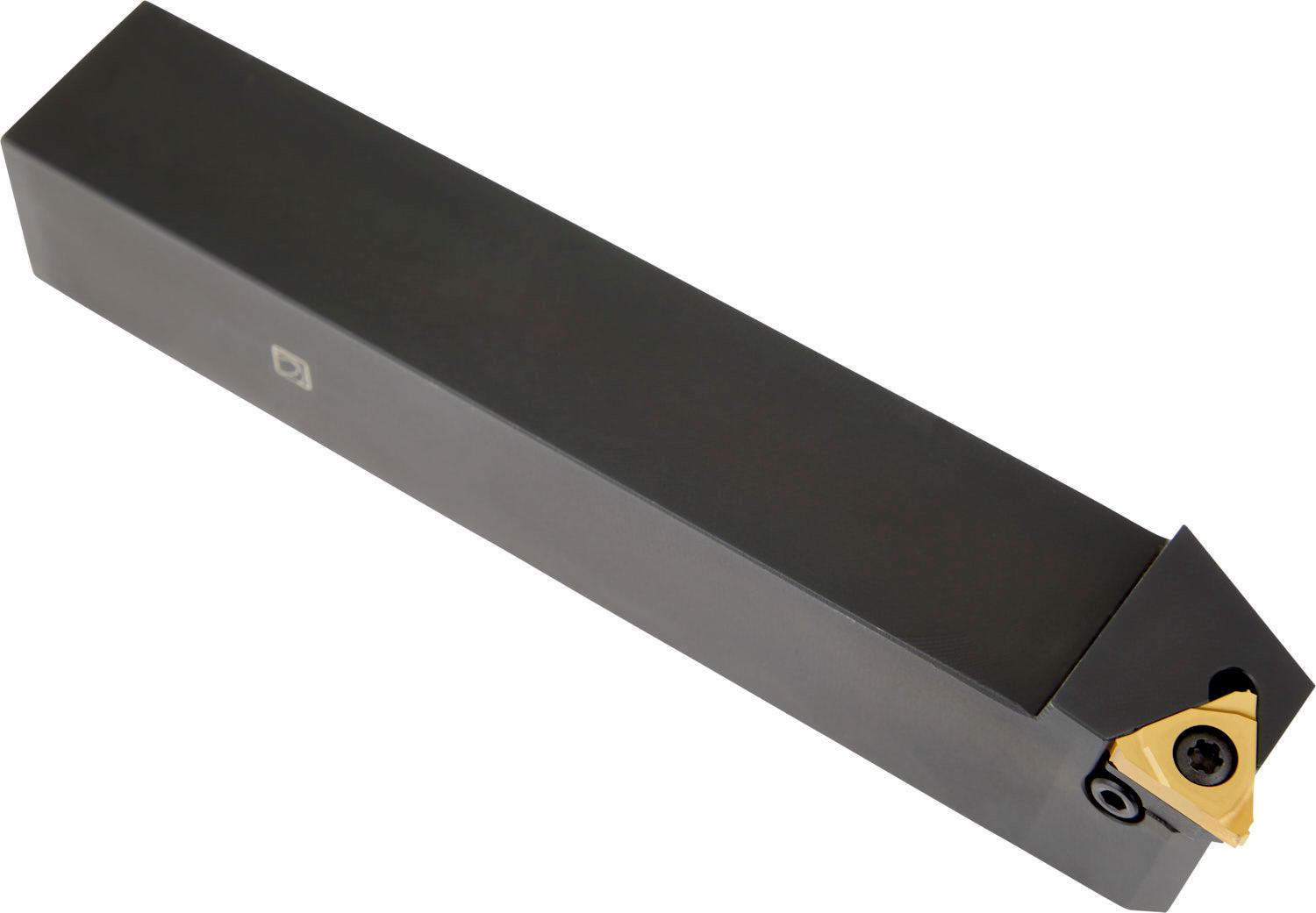

PRAMET SEL 2020 K 16 Threading turning holders internal and external

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Screw clamp thread turning tool with 1.5° helix angle for holding a triangle shaped insert with an inscribed circle diameter of 9.525mm (designation TN 16EL.. ), left hand standard design with straight shank, 20mm tool height, 20mm width and 125mm overall length for external threading, circlip grooving, and o-ring grooving

Additional information

Weight 0.2376 kg
barcode
Additional Information

Description: Value
EAN number: 3603602923370
Product number (SAP): 84001412
Ordering code ANSI: SEL 2020 K 16
Gross weight – grams: 406.5
Shank height – millimeter (H): 20 mm
Functional height – millimeter (HF): 20 mm
Shank width – millimeter (B): 20 mm
Functional width – millimeter (WF): 20 mm
Functional length – millimeter (LF): 125 mm
Head length – millimeter (LH): 22.5 mm
Insert size: 16
ISO: SEL2020K16

Brand

PRAMET
