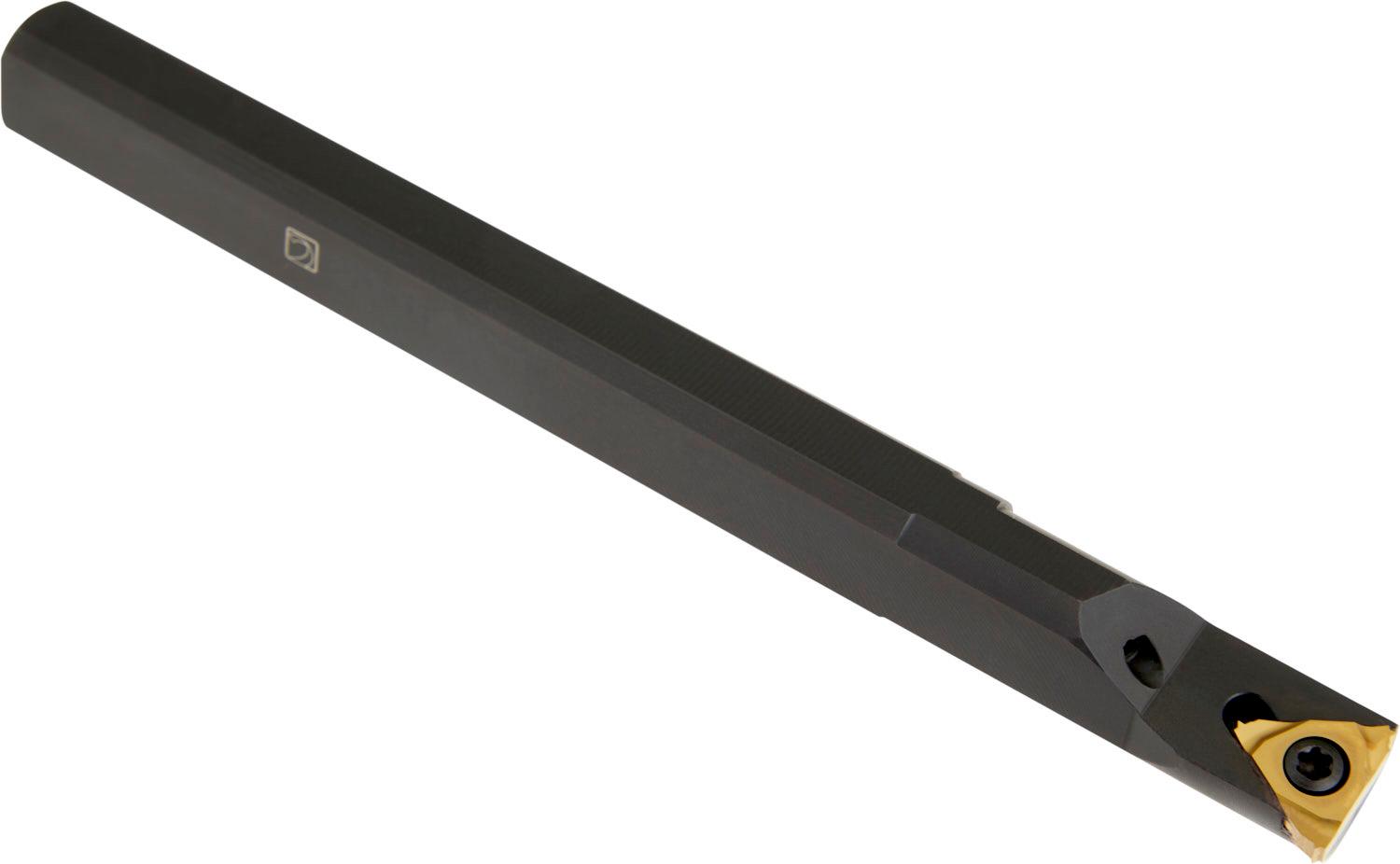

PRAMET SIL 0013 M 11-1 Threading turning holders internal and external

Description: Value
EAN number: 3603602926098
Product number (SAP): 84001964
Ordering code ANSI: SIL 0013 M 11-1
Gross weight – grams: 224
Shank width – millimeter (B): 14.5 mm
Connection diameter – millimeter (DCON MS): 16 mm
Minimum bore diameter – millimeter (DMIN): 16 mm
Body diameter – millimeter (BD): 13 mm
Functional width – millimeter (WF): 9 mm
Shank height – millimeter (H): 14 mm
Functional height – millimeter (HF): 7 mm
Functional length – millimeter (LF): 150 mm
Head length – millimeter (LH): 32 mm
Inclination angle (LAMS): 1
Insert size: 11
ISO: SIL0013M11-1
