PRAMET SIL 1416 N 16-0 Threading turning holders internal and external

Product Code: SIL 1416 N 16-0

$282.12$256.47 Ex. GST

Product Code: SIL 1416 N 16-0 SKU SIL 1416 N 16-0 Categories , ,
PRAMET SIL 1416 N 16-0 Threading turning holders internal and external

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

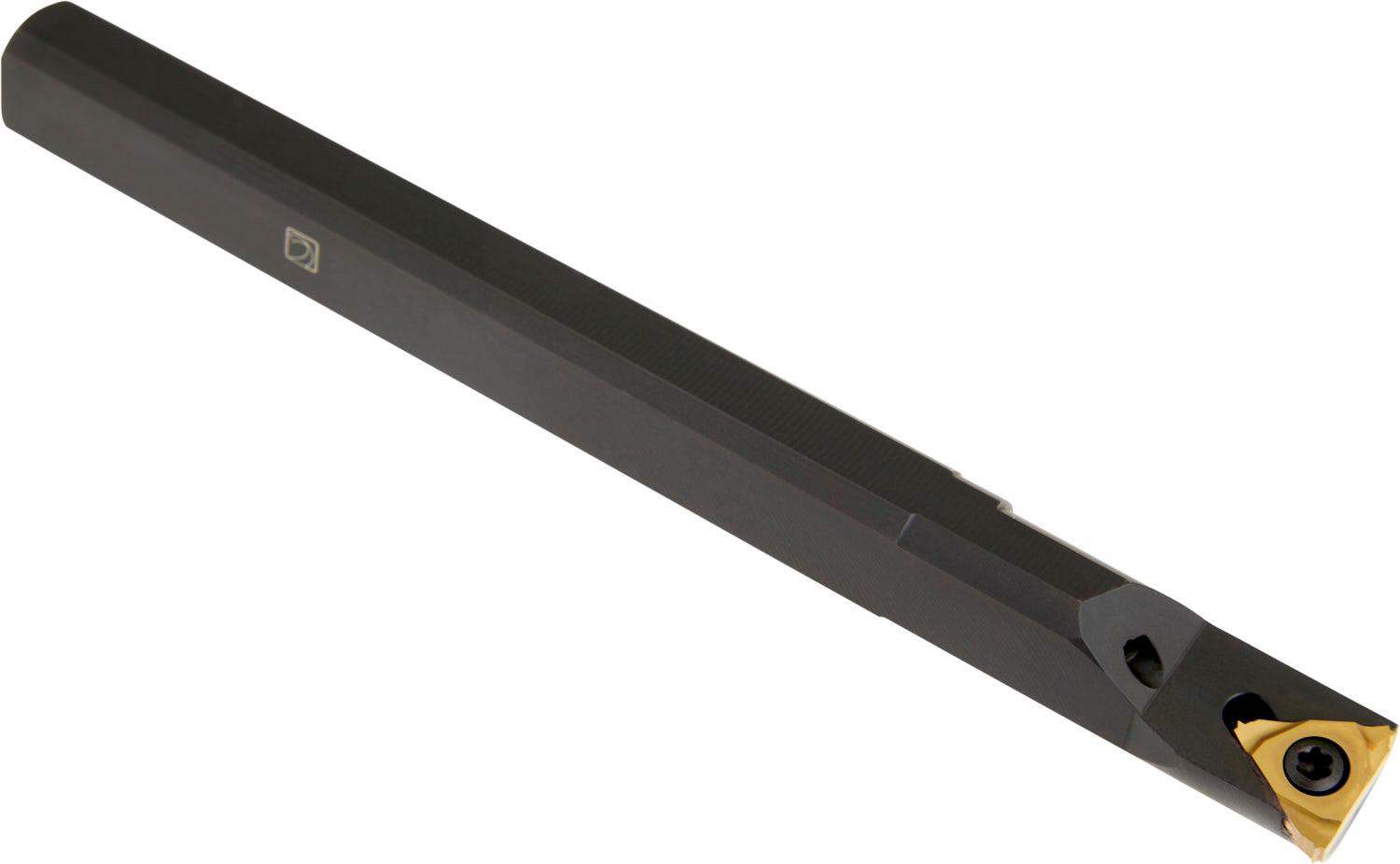

Screw clamp thread turning bar with 0° helix angle for holding a triangle shaped insert with an inscribed circle diameter of 9.525mm (designation TN 16NL.. ), left hand standard design with straight shank made of steel without coolant hole, 16mm diameter and 160mm overall length for internal threading, circlip grooving, and o-ring grooving

Additional information

Weight 0.2739 kg
barcode
Additional Information

Description: Value
EAN number: 3603602925282
Product number (SAP): 84001818
Ordering code ANSI: SIL 1416 N 16-0
Gross weight – grams: 250
Shank width – millimeter (B): 14 mm
Connection diameter – millimeter (DCON MS): 16 mm
Minimum bore diameter – millimeter (DMIN): 22 mm
Body diameter – millimeter (BD): 17 mm
Functional width – millimeter (WF): 11.4 mm
Shank height – millimeter (H): 14.5 mm
Functional height – millimeter (HF): 7.25 mm
Functional length – millimeter (LF): 160 mm
Inclination angle (LAMS): 0
Insert size: 16
ISO: SIL1416N16-0

Brand

PRAMET
