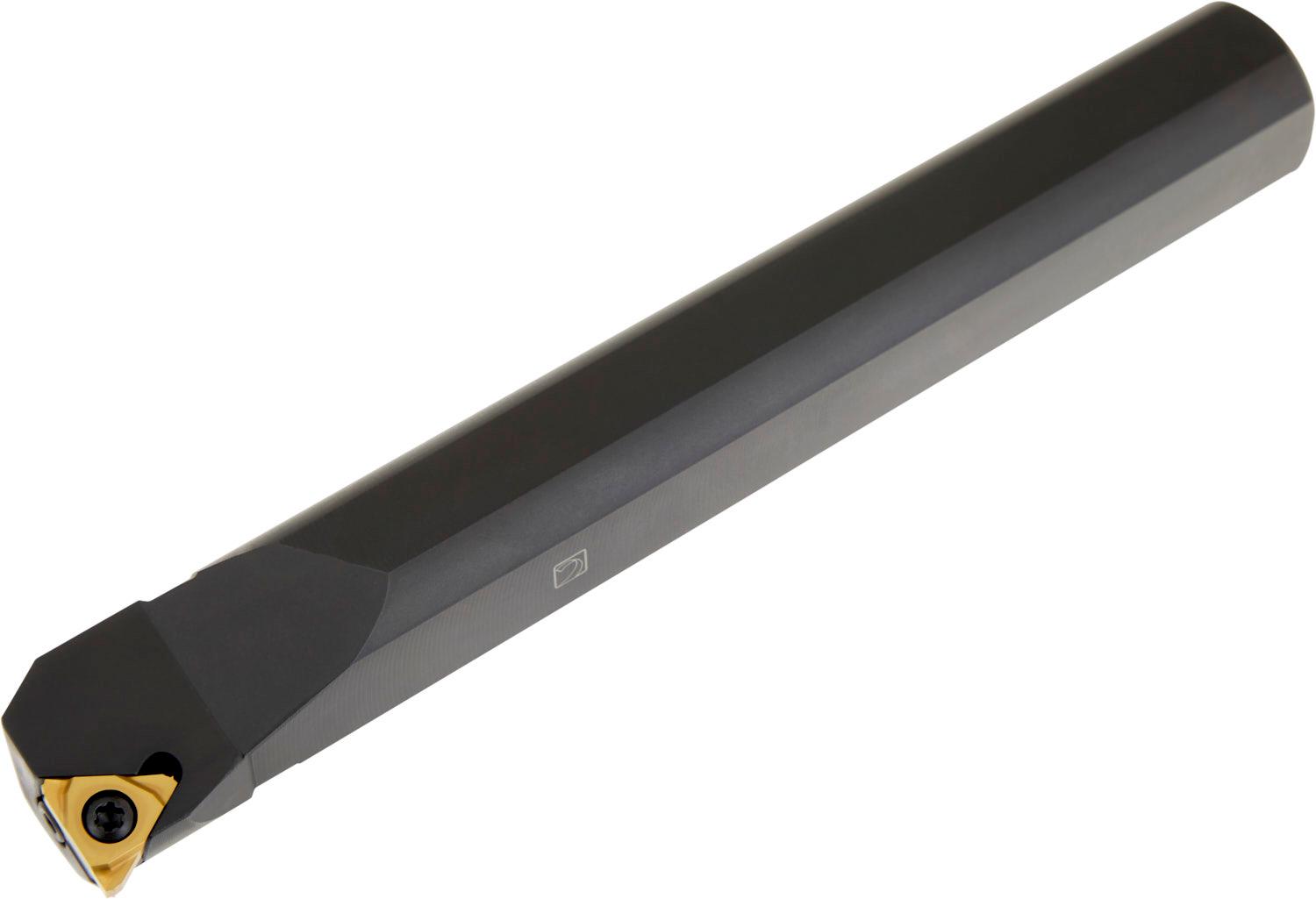

PRAMET SIR 2532 S 22-2 Threading turning holders internal and external

Description: Value
EAN number: 3603602950352
Product number (SAP): 84008333
Ordering code ANSI: SIR 2532 S 22-2
Gross weight – grams: 1074.9
Shank width – millimeter (B): 30 mm
Connection diameter – millimeter (DCON MS): 32 mm
Minimum bore diameter – millimeter (DMIN): 25 mm
Body diameter – millimeter (BD): 25 mm
Functional width – millimeter (WF): 16.65 mm
Shank height – millimeter (H): 25 mm
Functional height – millimeter (HF): 12.5 mm
Functional length – millimeter (LF): 250 mm
Head length – millimeter (LH): 80 mm
Inclination angle (LAMS): 2
Insert size: 22
ISO: SIR2532S22-2
