Description: Value
EAN number: 3603602927750
Product number (SAP): 84002388

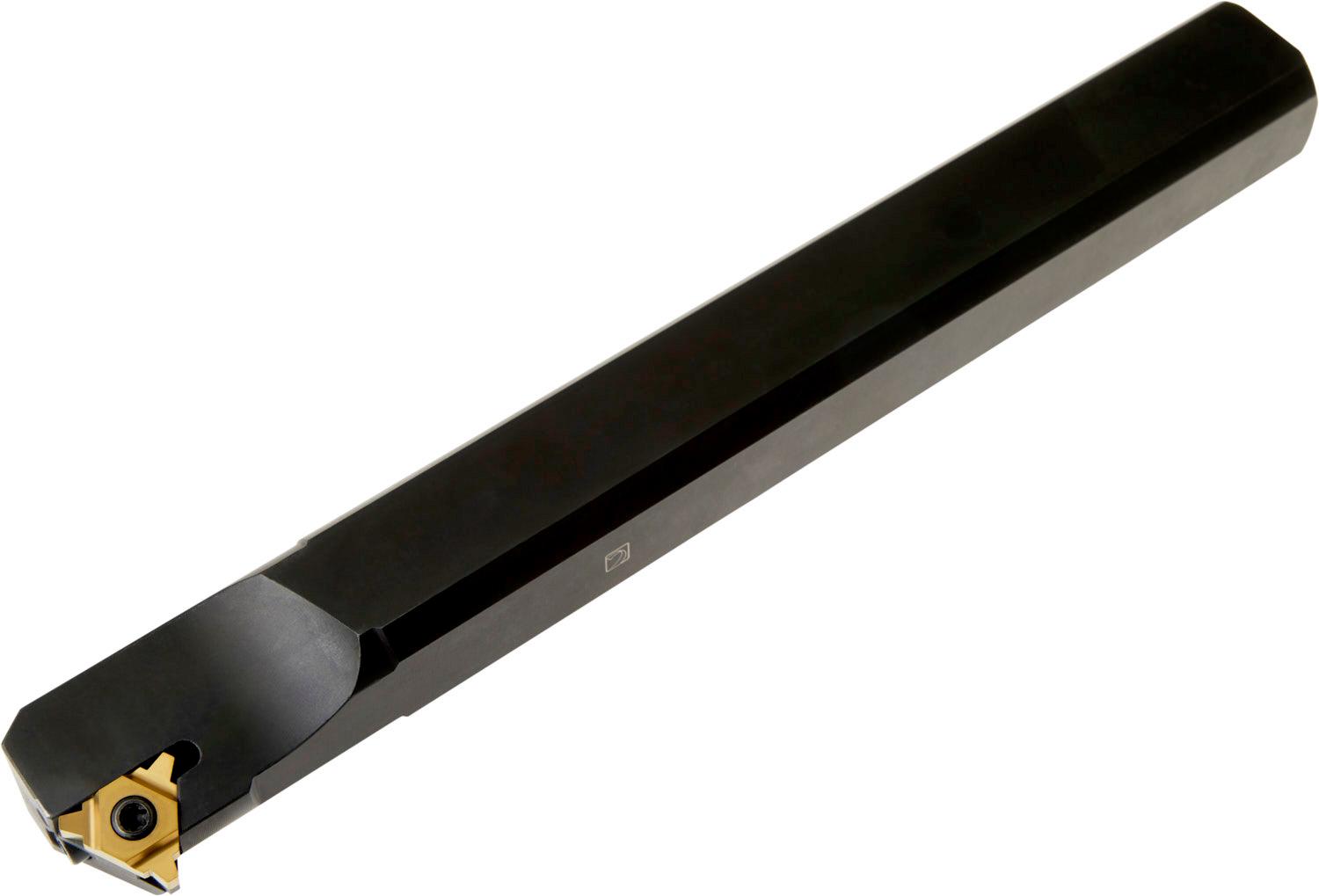

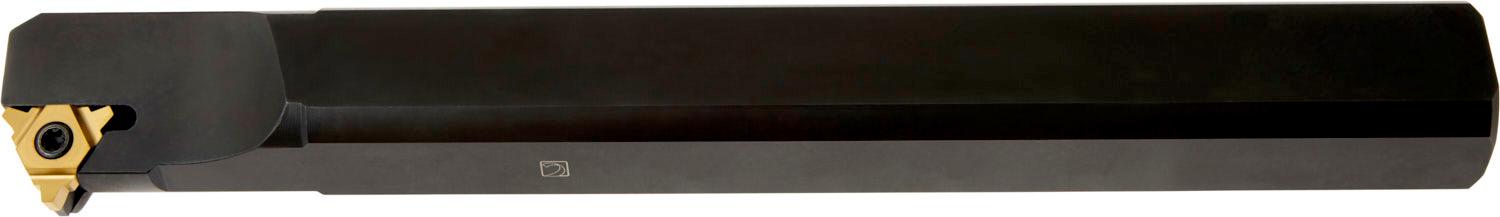

Ordering code ANSI: SIR-S 2532 S 22-A
Gross weight – grams: 1307.3

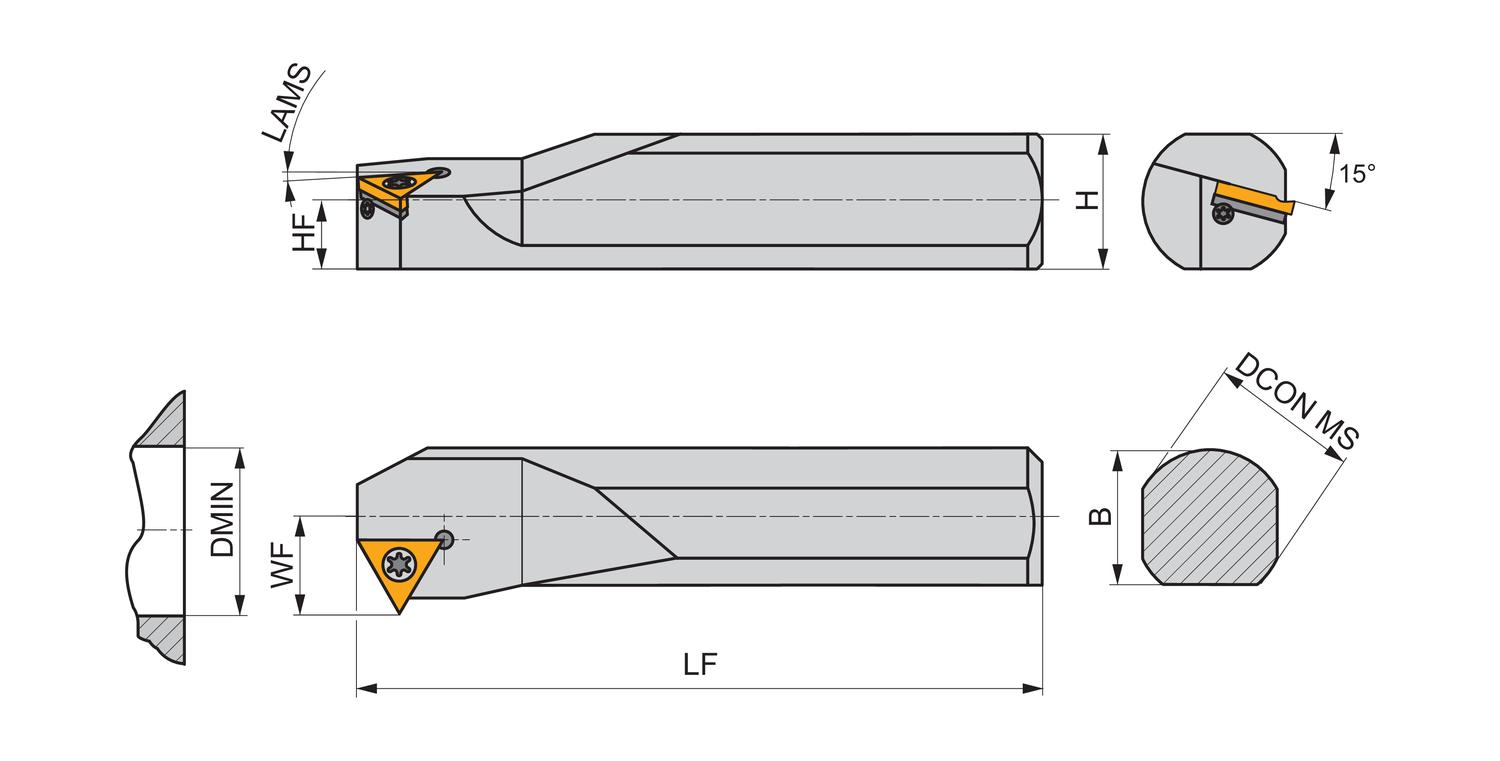

Shank width – millimeter (B): 30 mm
Connection diameter – millimeter (DCON MS): 32 mm
Minimum bore diameter – millimeter (DMIN): 39 mm
Functional width – millimeter (WF): 22.3 mm
Shank height – millimeter (H): 25 mm
Functional height – millimeter (HF): 12.5 mm
Functional length – millimeter (LF): 250 mm
Insert size: 22
ISO: SIR-S2532S22-A
|
