Description: Value
EAN number: 3603602926739
Product number (SAP): 84002059
Ordering code ANSI: SIR-S 3240 T 22-A
Gross weight – grams: 2523.4

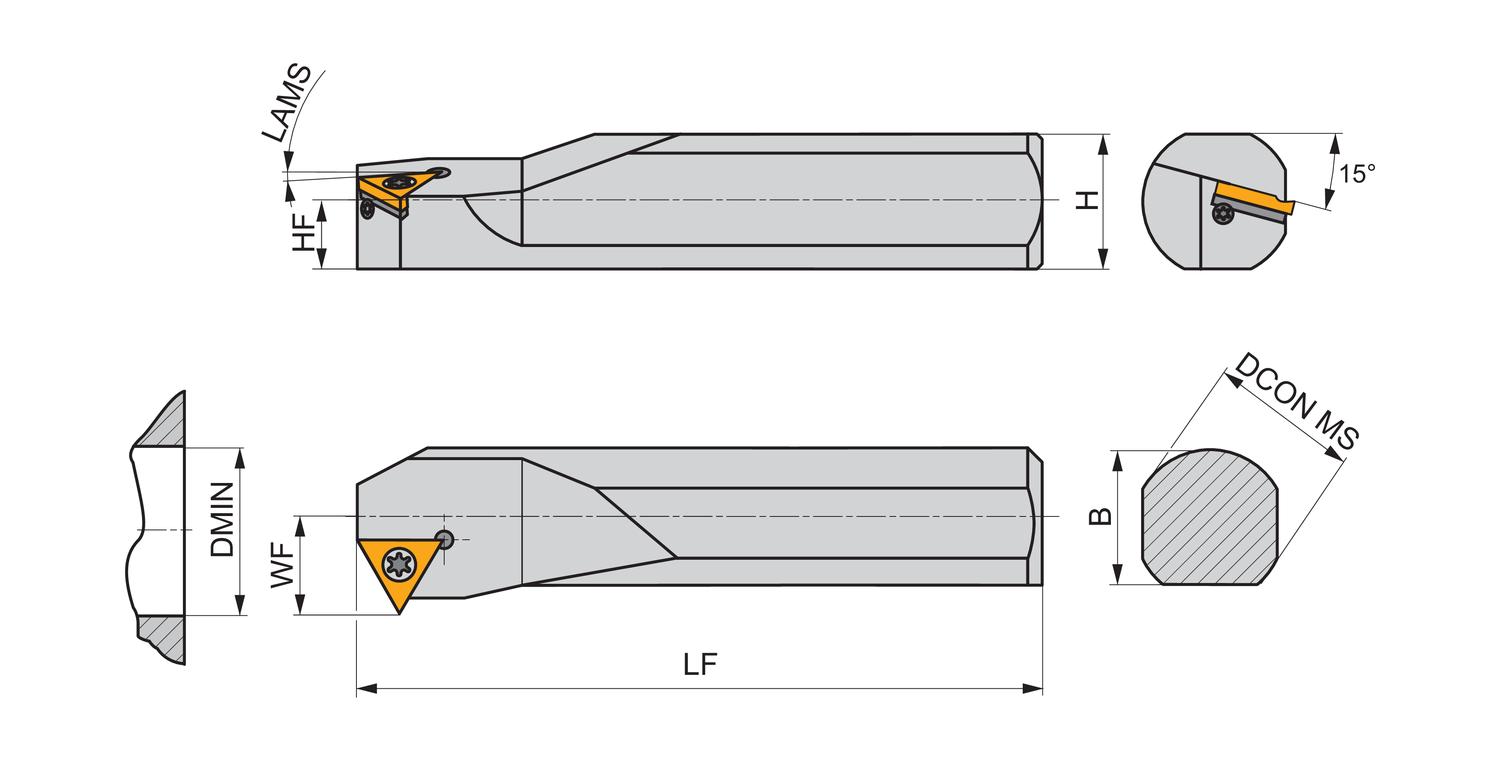

Shank width – millimeter (B): 38 mm
Connection diameter – millimeter (DCON MS): 40 mm
Minimum bore diameter – millimeter (DMIN): 48 mm
Functional width – millimeter (WF): 27 mm
Shank height – millimeter (H): 32 mm
Functional height – millimeter (HF): 16 mm
Functional length – millimeter (LF): 300 mm
Insert size: 22
ISO: SIR-S3240T22-A
|
