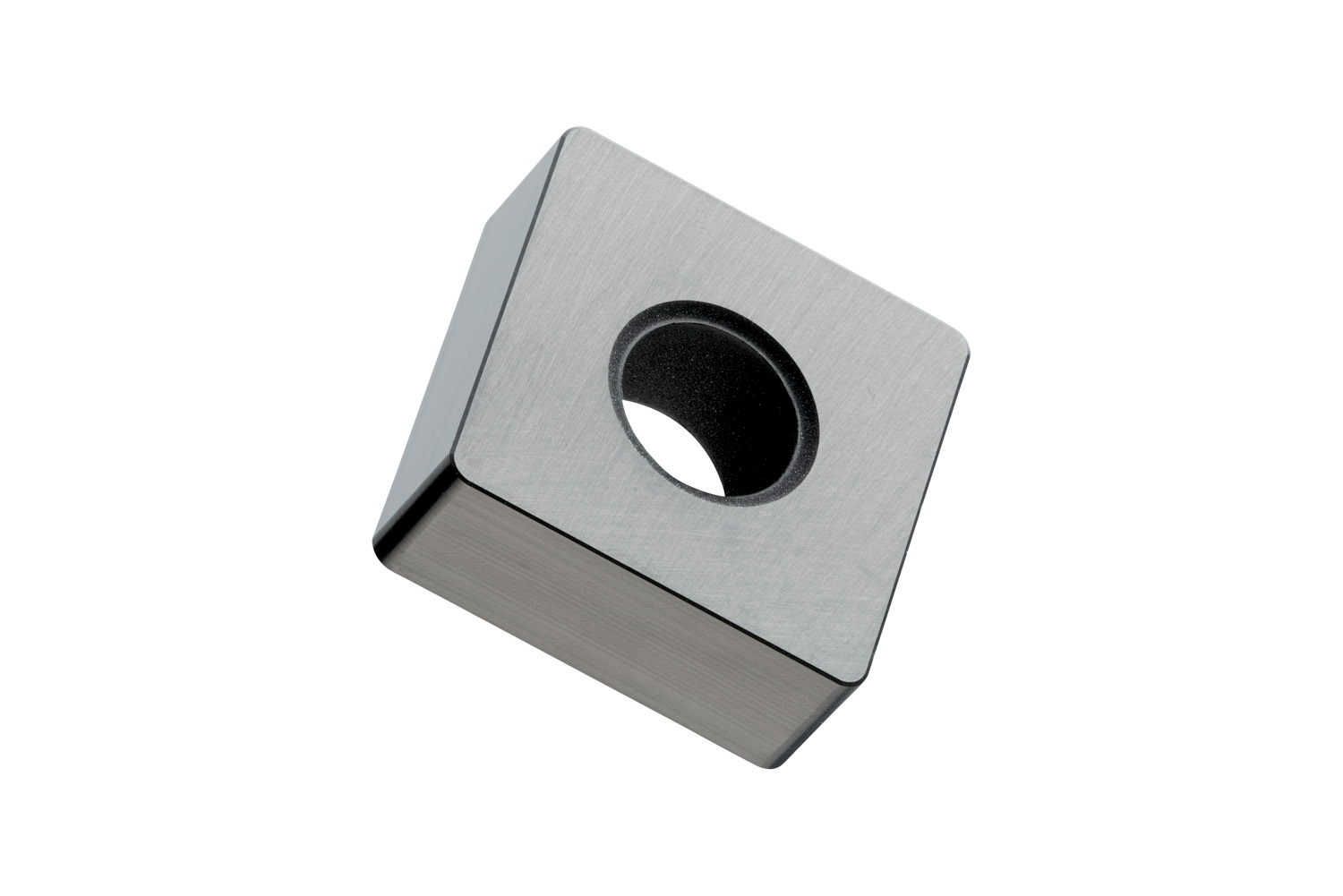

PRAMET SNGA 120408 T01025:TC100 Turning Ceramics Insert

Description: Value
EAN number: 3603602908407
Product number (SAP): 80019420
Ordering code ANSI: SNGA 432 T00425:TC100
Gross weight – grams: 3.94
Inscribed circle diameter – millimeter (IC): 12.7 mm
Fixing hole diameter – millimeter (D1): 5.16 mm
Cutting edge length – millimeter (L): 12.7 mm
Insert thickness – millimeter (S): 4.76 mm
Grade: TC100
Corner radius – millimeter (RE): 0.8 mm
Insert Clearance Code and Angle: N 0°
Insert Design: SNGA
Insert size: 12
Insert Thickness: 04
Insert Type: A
Chipbreaker manufacturer's designation (CBMD): No chipbreaker
Insert shape code (SC): S – square
Tool Design: SN
Insert Geometry: Negative
ISO: SNGA120408T01025:TC100
