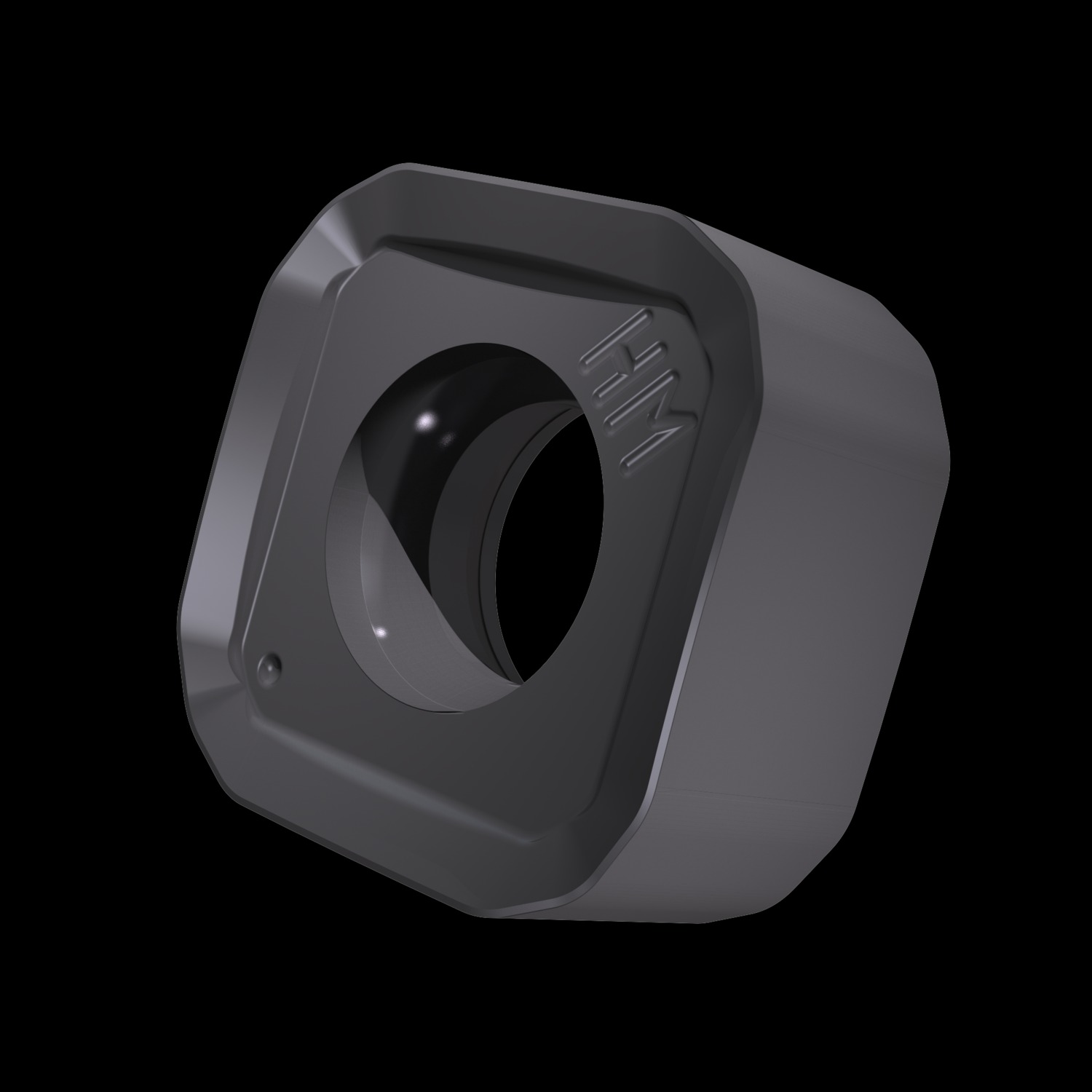

PRAMET SNGX 110416SR-HM:8215 Milling Insert for HFC Cutters

Product Code: SNGX 110416SR-HM:8215

$36.49$33.17 Ex. GST

Product Code: SNGX 110416SR-HM:8215 SKU SNGX 110416SR-HM:8215 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Double-sided milling insert SNGX 1104, square for a maximum depth of cut of 1.7mm, with 1.6mm corner radius, an indexing accuracy according to ISO-tolerance class-G and HM geometry with rounded cutting edges and facet, 8215 PVD coated fine grained WC-Co carbide within ISO-grade ranges P10 -P20/K10 -K25 and H10 -H15 for machining of steel, cast-iron and hardened material with high feed cutters SSN11

Additional information

Weight 0.0060 kg
barcode

3603603942059

Additional Information

Description: Value
EAN number: 3603603942059
Product number (SAP): 80034209
Ordering code ANSI: SNGX 110416SR-HM:8215
Gross weight – grams: 6.034
Inscribed circle diameter – millimeter (IC): 10.6 mm
Fixing hole diameter – millimeter (D1): 4.56 mm
Insert thickness – millimeter (S): 4.76 mm
Grade: 8215
Corner radius – millimeter (RE): 1.6 mm
Insert Clearance Code and Angle: N 0°
Insert size: 11
Insert Type: X
Chipbreaker manufacturer's designation (CBMD): HM
Insert shape code (SC): S – square
ISO: SNGX110416SR-HM:8215
