Description: Value
EAN number: 3603603942035
Product number (SAP): 80034207

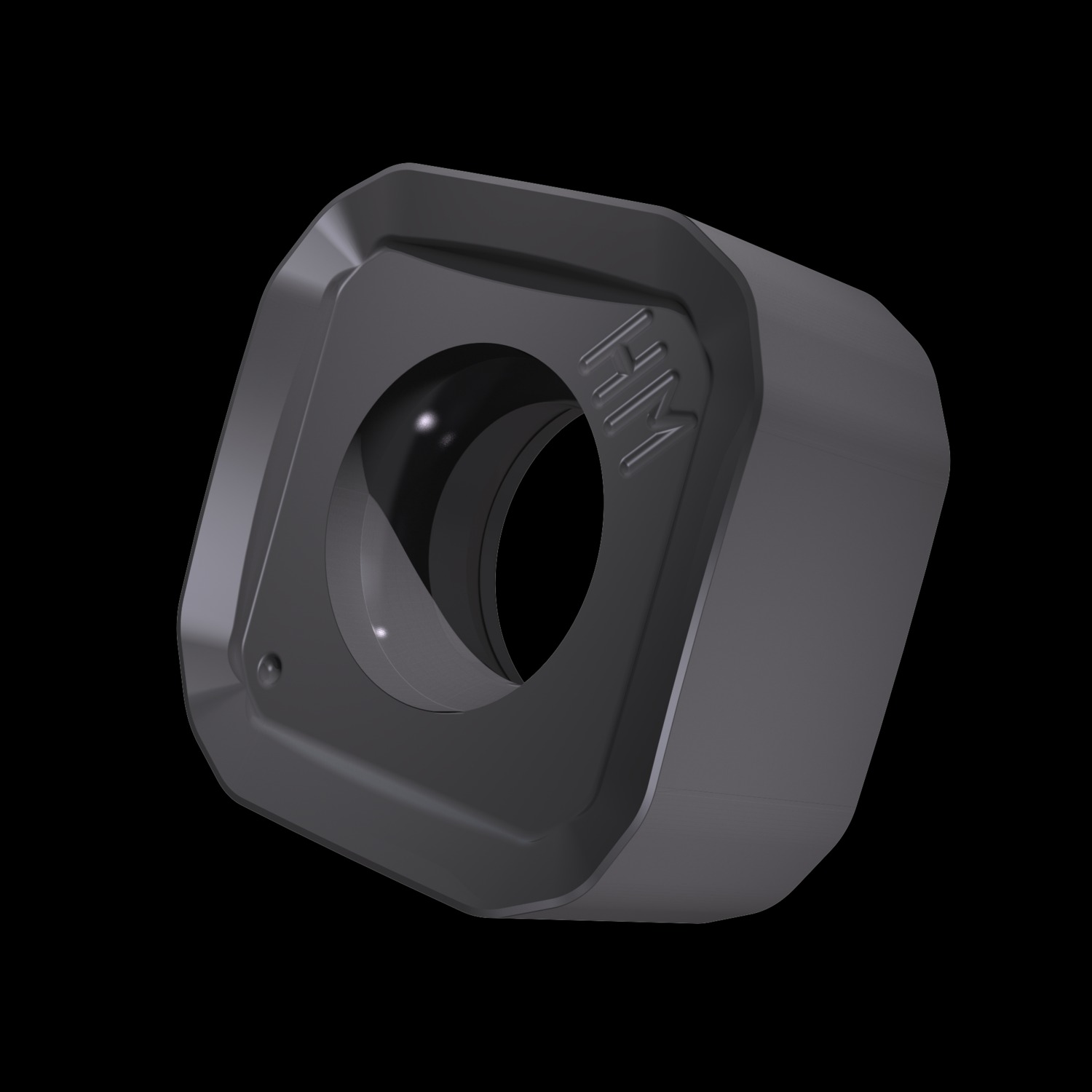

Ordering code ANSI: SNGX 110416SR-HM:M8310
Gross weight – grams: 6.106
Inscribed circle diameter – millimeter (IC): 10.6 mm
Fixing hole diameter – millimeter (D1): 4.56 mm
Insert thickness – millimeter (S): 4.76 mm
Grade: M8310
Corner radius – millimeter (RE): 1.6 mm
Insert Clearance Code and Angle: N 0°
Insert size: 11
Insert Type: X
Chipbreaker manufacturer's designation (CBMD): HM
Insert shape code (SC): S – square
ISO: SNGX110416SR-HM:M8310
|
