PRAMET SNHF 1204ENSR-M:M8330 Milling inserts clamped by wedge

Product Code: SNHF 1204ENSR-M:M8330

$30.25$27.50 Ex. GST

Product Code: SNHF 1204ENSR-M:M8330 SKU SNHF 1204ENSR-M:M8330 Categories , ,
PRAMET SNHF 1204ENSR-M:M8330 Milling inserts clamped by wedge

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

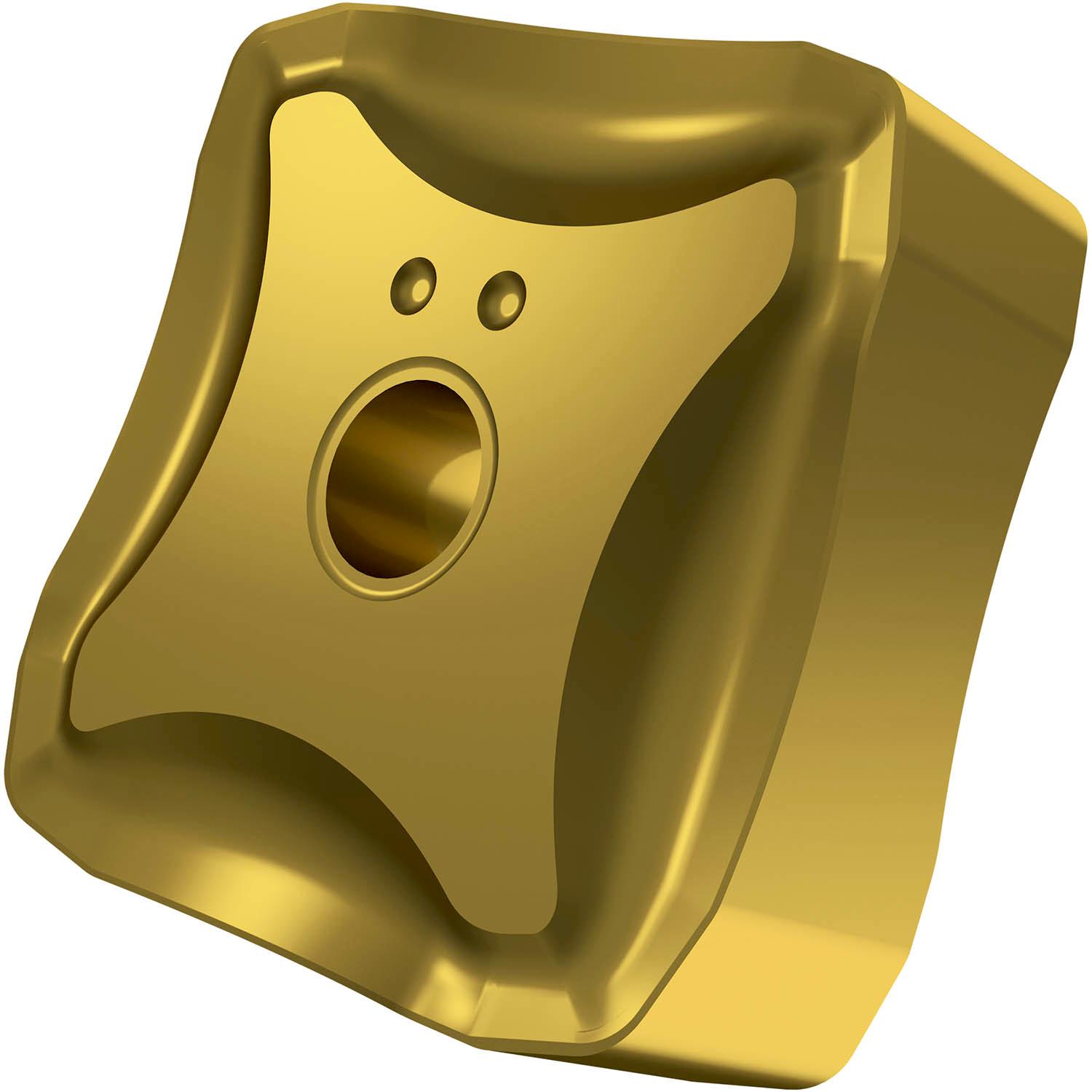

Double-sided milling insert SNHF 1204 with chip-breakers, square for a maximum depth of cut of 6.0mm, with an indexing accuracy according to ISO-tolerance class-H and M geometry with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range P20 -P40 for machining of steel

Additional information

Weight 0.0294 kg
barcode
Additional Information

Description: Value
EAN number: 3603603389229
Product number (SAP): 80030188
Ordering code ANSI: SNHF 43ENSR-M:M8330
Gross weight – grams: 9.146
Wiper edge length – millimeter (BS): 2 mm
Inscribed circle diameter – millimeter (IC): 12.7 mm
m-dimension – millimeter (M): 0.5 mm
Insert thickness – millimeter (S): 4.76 mm
Grade: M8330
Insert Clearance Code and Angle: N 0°
Insert size: 12
Insert Thickness: 04
Insert Type: F
Chipbreaker manufacturer's designation (CBMD): M
Insert shape code (SC): S – square
ISO: SNHF1204ENSR-M:M8330

Brand

PRAMET
