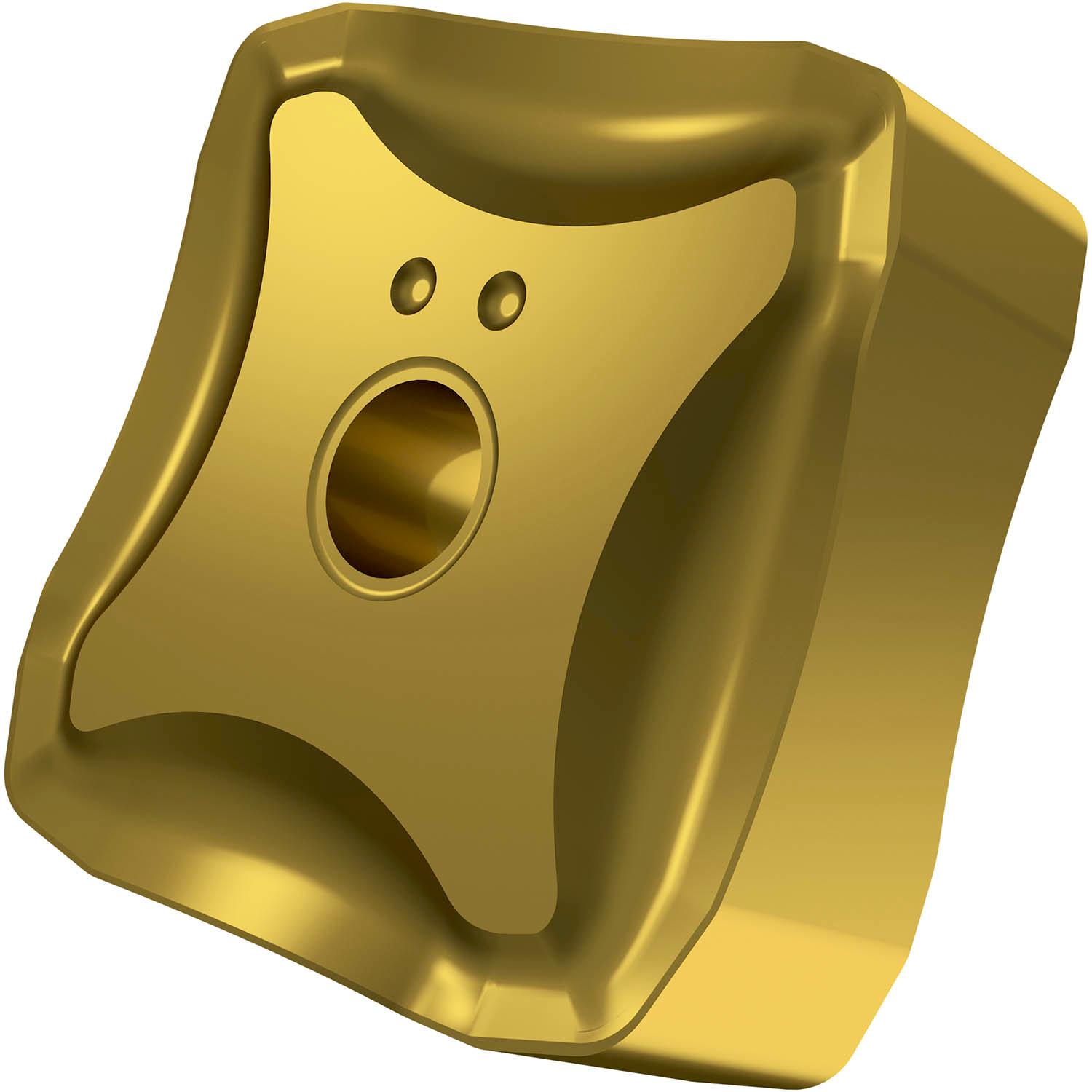

PRAMET SNHF 1504ENSR-M:M8340 Milling inserts clamped by wedge

Product Code: SNHF 1504ENSR-M:M8340

$38.63$35.12 Ex. GST

Product Code: SNHF 1504ENSR-M:M8340 SKU SNHF 1504ENSR-M:M8340 Categories , ,
PRAMET SNHF 1504ENSR-M:M8340 Milling inserts clamped by wedge

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Double-sided milling insert SNHF 1504 with chip-breakers, square for a maximum depth of cut of 9.0mm, with an indexing accuracy according to ISO-tolerance class-H and M geometry with rounded cutting edges and facet, M8340 PVD coated fine grained WC-Co carbide within ISO-grade range P25 -P50 for machining of steel

Additional information

Weight 0.0375 kg
barcode
Additional Information

Description: Value
EAN number: 3603602993991
Product number (SAP): 80025066
Ordering code ANSI: SNHF 53ENSR-M:M8340
Gross weight – grams: 14.5
Wiper edge length – millimeter (BS): 1.4 mm
Inscribed circle diameter – millimeter (IC): 15.875 mm
m-dimension – millimeter (M): 1.1 mm
Insert thickness – millimeter (S): 4.76 mm
Grade: M8340
Insert Clearance Code and Angle: N 0°
Insert size: 15
Insert Thickness: 04
Insert Type: F
Chipbreaker manufacturer's designation (CBMD): M
Insert shape code (SC): S – square
ISO: SNHF1504ENSR-M:M8340

Brand

PRAMET
