PRAMET SNHN 1204ENEN:8215 Milling inserts clamped by wedge

Product Code: SNHN 1204ENEN:8215

$28.78$26.16 Ex. GST

Product Code: SNHN 1204ENEN:8215 SKU SNHN 1204ENEN:8215 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

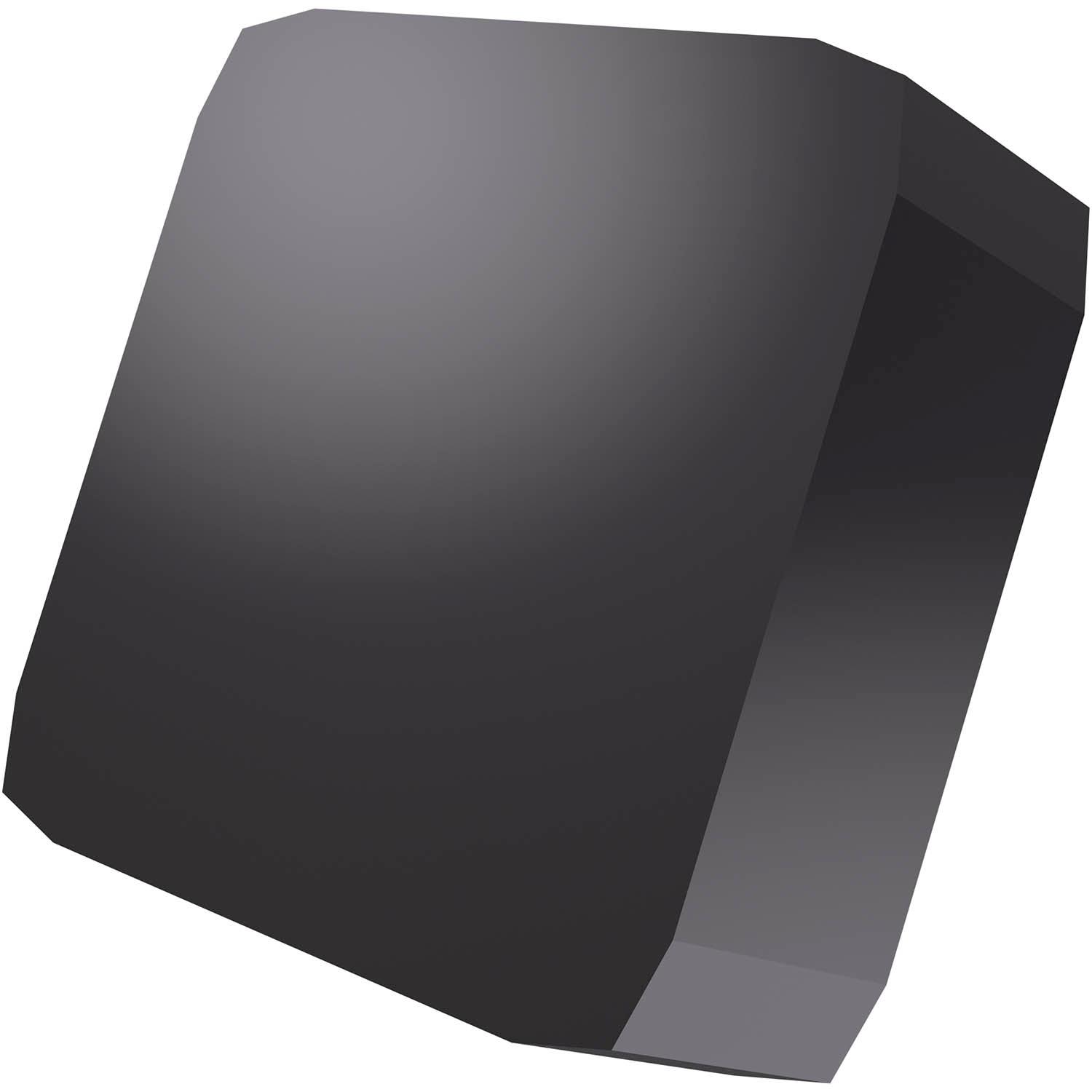

Double-sided milling insert SNHN 1204 with a plane rake surface, square for a maximum depth of cut of 9.0mm, with an indexing accuracy according to ISO-tolerance class-H with rounded cutting edges, 8215 PVD coated fine grained WC-Co carbide within ISO-grade range K10 -K25 for machining of cast-iron

Additional information

Weight 0.0279 kg
barcode
Additional Information

Description: Value
EAN number: 3603602887764
Product number (SAP): 80014612
Ordering code ANSI: SNHN 43ENEN:8215
Gross weight – grams: 11.182
Wiper edge length – millimeter (BS): 1.4 mm
Inscribed circle diameter – millimeter (IC): 12.7 mm
m-dimension – millimeter (M): 0.95 mm
Insert thickness – millimeter (S): 4.76 mm
Grade: 8215
Insert Clearance Code and Angle: N 0°
Insert size: 12
Insert Thickness: 04
Insert Type: N
Chipbreaker manufacturer's designation (CBMD): No chipbreaker
Insert shape code (SC): S – square
ISO: SNHN1204ENEN:8215

Brand

PRAMET
