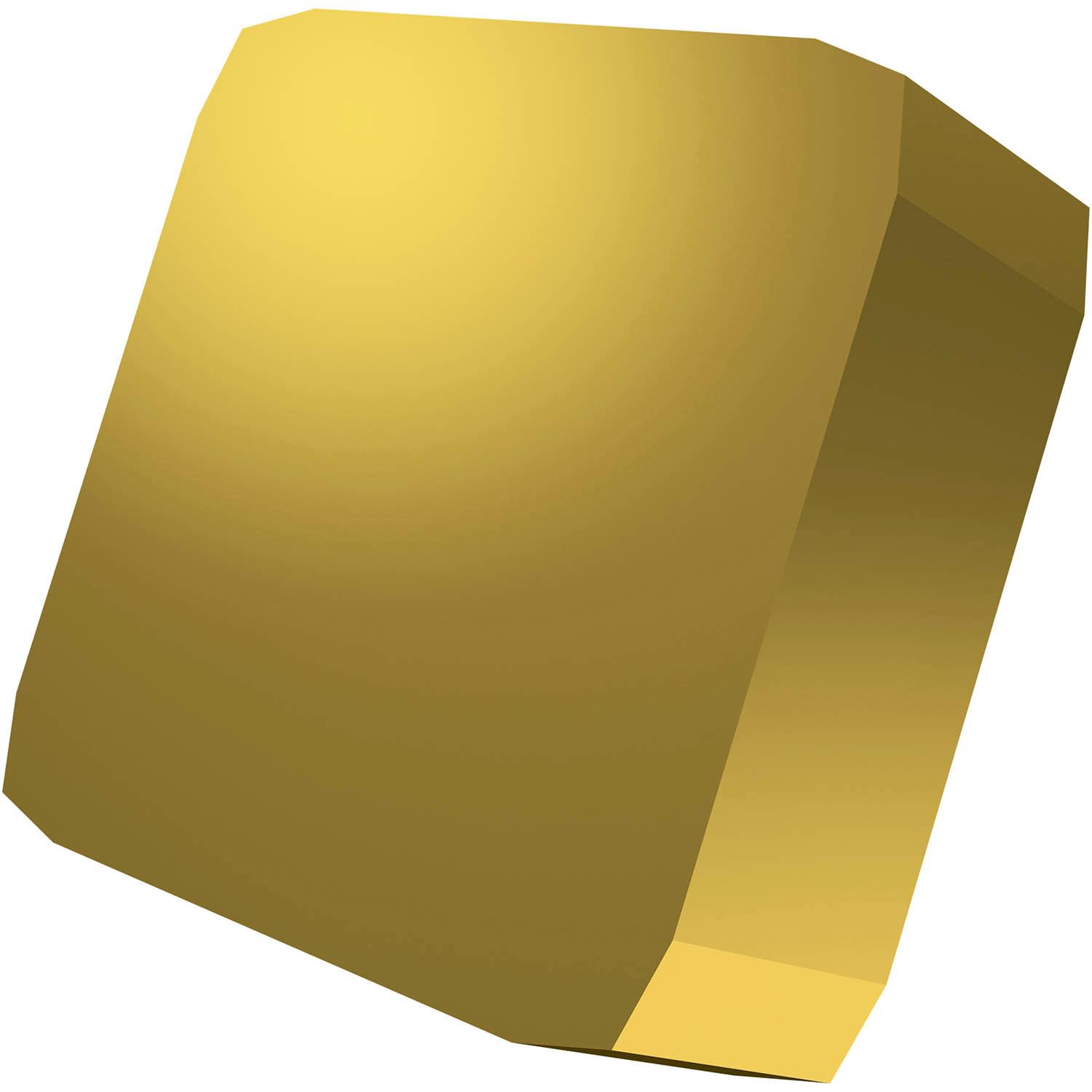

PRAMET SNHN 1204ENEN:M8330 Milling inserts clamped by wedge

Product Code: SNHN 1204ENEN:M8330

$29.35$26.68 Ex. GST

Product Code: SNHN 1204ENEN:M8330 SKU SNHN 1204ENEN:M8330 Categories , ,
PRAMET SNHN 1204ENEN:M8330 Milling inserts clamped by wedge

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Double-sided milling insert SNHN 1204 with a plane rake surface, square for a maximum depth of cut of 9.0mm, with an indexing accuracy according to ISO-tolerance class-H with rounded cutting edges, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range K20 -K40 for machining of cast-iron

Additional information

Weight 0.0285 kg
barcode
Additional Information

Description: Value
EAN number: 3603603389243
Product number (SAP): 80030190
Ordering code ANSI: SNHN 43ENEN:M8330
Gross weight – grams: 11.65
Wiper edge length – millimeter (BS): 1.4 mm
Inscribed circle diameter – millimeter (IC): 12.7 mm
m-dimension – millimeter (M): 0.95 mm
Insert thickness – millimeter (S): 4.76 mm
Grade: M8330
Insert Clearance Code and Angle: N 0°
Insert size: 12
Insert Thickness: 04
Insert Type: N
Chipbreaker manufacturer's designation (CBMD): No chipbreaker
Insert shape code (SC): S – square
ISO: SNHN1204ENEN:M8330

Brand

PRAMET
